Preparation of flame retardant waterborne polyurethane and its coating for polyester fabric

doi:10.19491/j.issn.1001-9278.2024.12.012

Abstract

Abstract:

Waterborne polyurethane （PU） was modified with flame⁃retardant polyester polyol as a phosphorus source， and the properties of the resultant modified waterborne PU emulsion， film， and coated polyester fabric were characterized. The results indicated that the flame⁃retardant polyester polyol as a modifier was completely participated in the flame⁃retardant modification of waterborne PU. When the phosphorus content was less than 5 wt%， the flame⁃retardant waterborne PU emulsion presented an aspect from translucent to milky white， its particle size was less than 100 nm， and its centrifugal stability was good. The waterborne PU film exhibited a decrease in the water absorption rate， mechanical properties and cracking temperature with an increase in the phosphorus content， but its mass retention rate increased. The coated polyester fabric reached a nonflammable level at a phosphorus content of 3 wt%. The mechanism analysis indicates that it was feasible to finish polyester fabric with the flame⁃retardant waterborne PU coating.

Key words: waterborne polyurethane, particle size, molecular structure, thermal weight loss, mechanical property, water absorption property, flame retardant property

CLC Number:

TQ323.8

YANG Chen, ZHAO Lixue, LIN Yanping. Preparation of flame retardant waterborne polyurethane and its coating for polyester fabric[J]. China Plastics, 2024, 38(12): 72-76.

Figures/Tables 8

Fig.1. Appearance photo of flame retardant waterborne polyurethane emulsion

Fig.2. Microscopic photos of flame retardant waterborne polyurethane emulsion

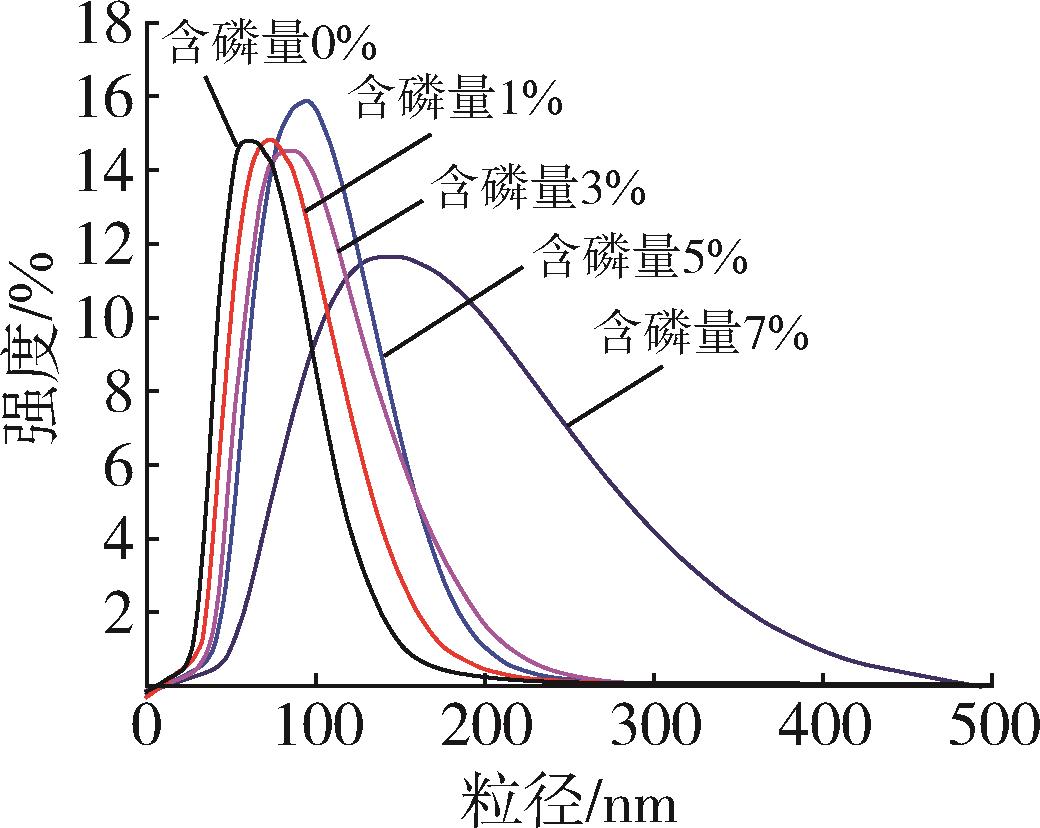

Fig.3. Particle size test curve of flame retardant waterborne polyurethane emulsion

含磷量/%	粒径/nm	乳液状态	离心稳定性
0	63.24	透明	无沉淀
1	72.15	半透明	无沉淀
3	84.37	半透明	无沉淀
5	93.46	乳白色	极微量沉淀
7	147.81	微棕黄色	微量沉淀

Tab.1. Performance test results of flame retardant waterborne polyurethane emulsion

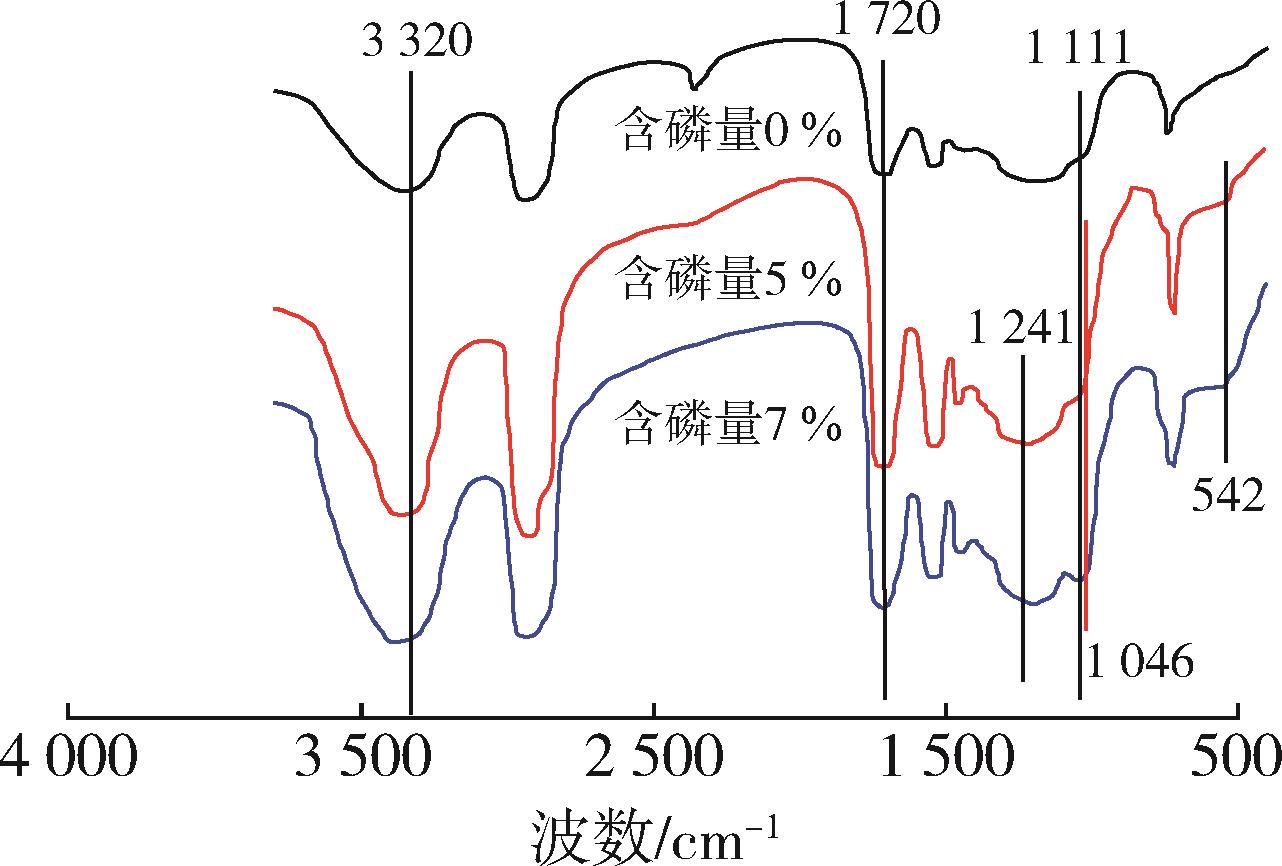

Fig.4. Infrared spectrum curve of flame retardant waterborne polyurethane film

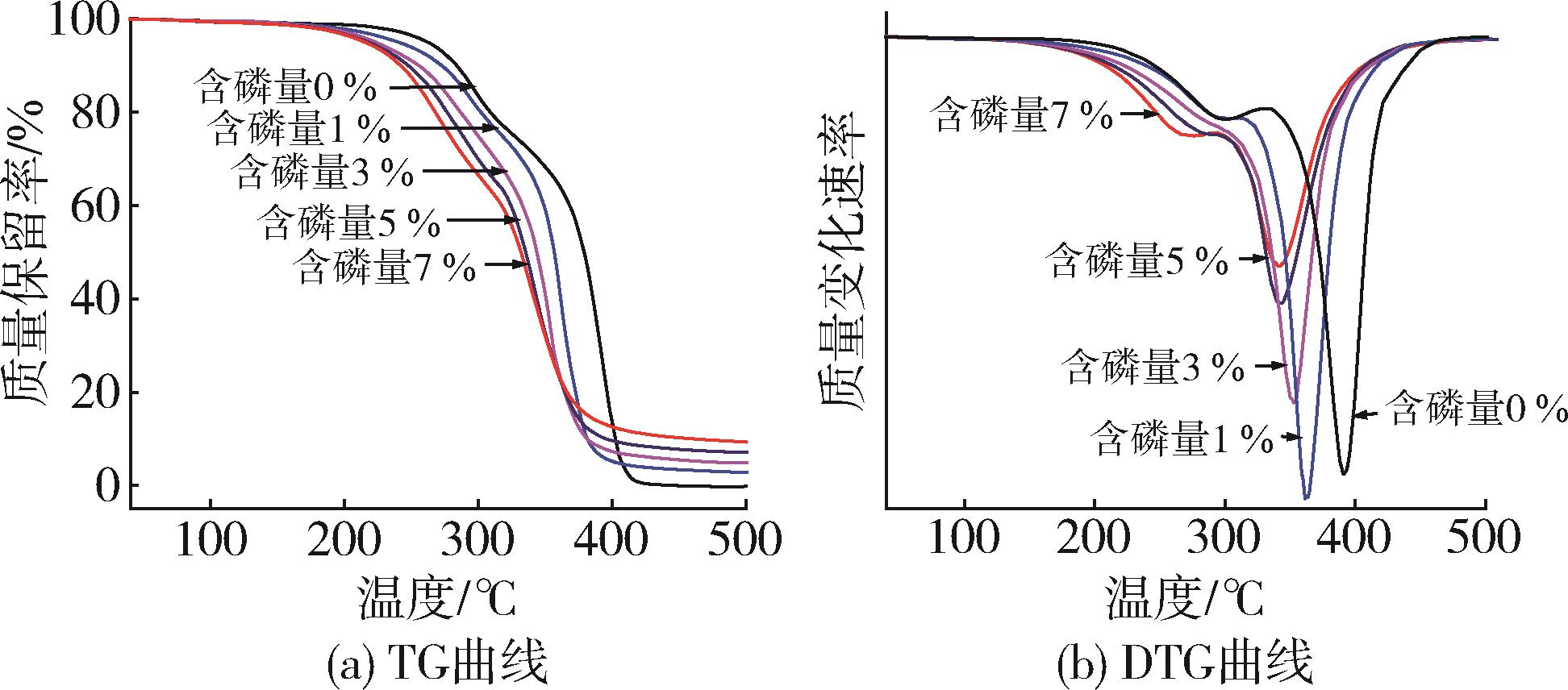

Fig.5. Thermogravimetric curve of flame retardant waterborne polyurethane film

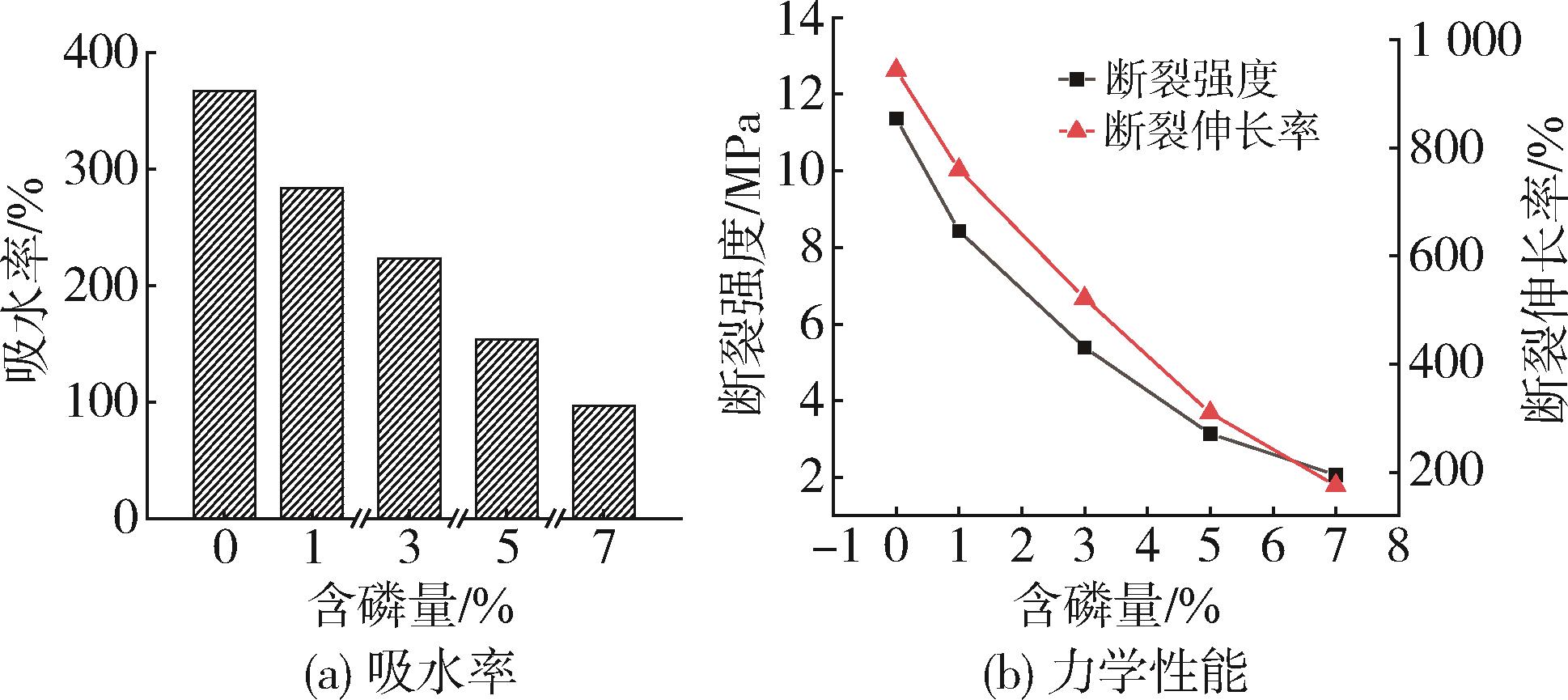

Fig.6. Water absorption and mechanical properties of flame retardant waterborne polyurethane film

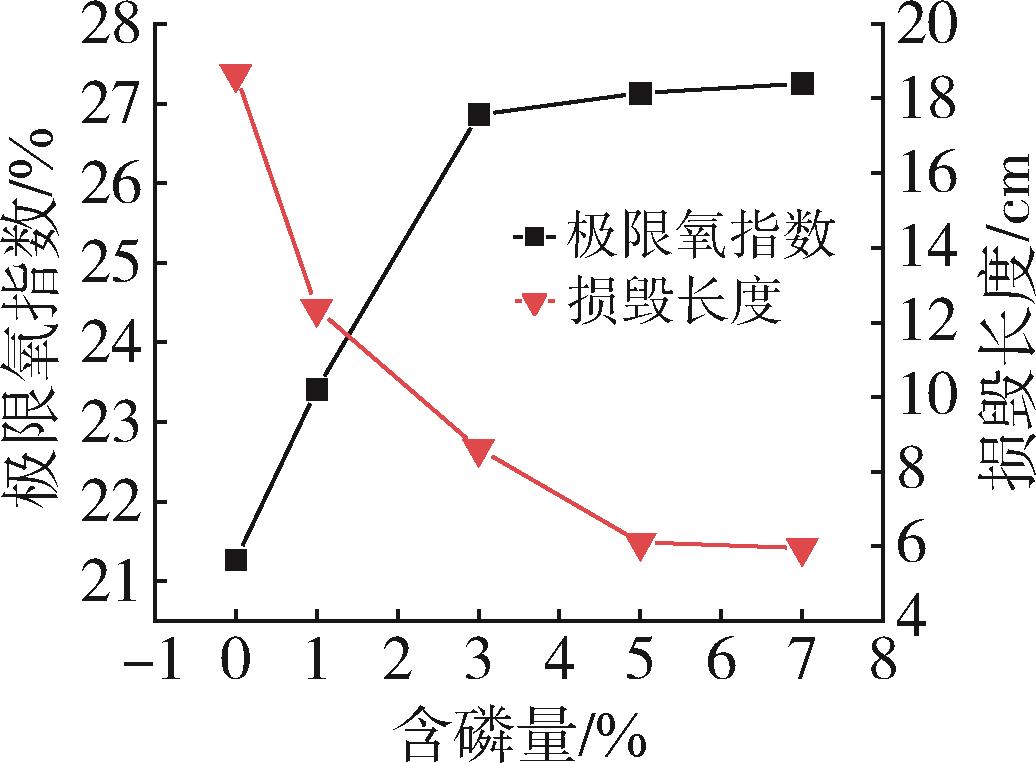

Fig.7. Limiting oxygen index and damage length of flame retardant waterborne polyurethane film

References 15

1	MAEDEH S， MAJID M. Polyester fabric with tunable flame retardant and hydrophobic properties treated with nano carbon black and micro carbonyl iron through various application methods［J］. The Journal of The Textile Institute，2024，115（2）： 316⁃323.
2	刘江涛，唐浩龙，杨元峰，等.石墨烯气凝胶阻燃涤纶织物的构建及性能［J］.高分子材料科学与工程，2022， 38（6）： 79⁃86.
	LIU J T， TANG H L， YANG Y F， et al. Construction and performance of graphene aerogel flame retardant polyester fabric［J］. Polymer materials science and engineering， 2022， 38（6）： 79⁃86.
3	薛立钟，孟彩凤，刘涛，等.废旧涤纶织物制备水性聚氨酯及其阻燃改性研究［J］.应用化工，2022， 51（9）： 2 592⁃2 597.
	XUE L Z， MENG C F， LIU T， et al. Preparation of waterborne polyurethane from waste polyester fabric and its flame retardant modification［J］. Applied Chemical Industry， 2022， 51（9）： 2 592⁃2 597.
4	丁木生.阻燃剂在高聚物材料中的应用分析［J］.化工时刊，2020， 34（5）： 34⁃39.
	DING M S. Analysis on the application of flame retardant in polymer materials［J］. Chemical Industry Times， 2020， 34（5）： 34⁃39.
5	程阳，惠岚峰.反应型阻燃剂的原理、应用及研究进展［J］.中华纸业，2022，43（4）： 1⁃8.
	CHEN Y， HUI L F. Research progress on principle and application of reactive flame retardants［J］. China Pulp & Paper Industry， 2022，43（4）： 1⁃8.
6	李为，吕辰，汪圣华，等.水性聚氨酯的阻燃改性方法和应用研究进展［J］.聚氨酯工业，2024， 39（2）：14⁃18.
	LI W， LYU C， WANG S H， et al. Flame⁃retardant⁃ modified and application research progress of waterborne polyurethane［J］. Polyurethane industry， 2024， 39（2）：14⁃18.
7	江志威，赵丽，杨锋波，等.功能性水性聚氨酯的研究进展［J］.合成纤维，2024， 53（1）：7⁃11.
	JIANG Z W， ZHAO L， YANG F B， et al. Research progress of functional waterborne polyurethane［J］. Synthetic Fiber in China， 2024， 53（1）：7⁃11.
8	熊军，孙芳，杜宏光，等.丙酮⁃二正丁胺滴定法测定聚氨酯中的异氰酸酯基［J］.分析实验室，2007， 26（ 8）： 73⁃76．
	XIONG J， SUN F， DU H G， et al. Determination of is ocyanate group in polyurethane by “di⁃n⁃butylamine⁃acetone” method ［J］. Chinese Journal of Analysis Laboratory， 2007， 26（ 8）： 73⁃76.
9	宋海香，王艳飞，张艳维，等.阻燃水性聚氨酯的合成与性能研究［J］.安阳工学院学报，2016， 15（02）：21⁃26.
	SONG H X， WANG Y F， ZHANG Y W， et al. Study on synthesis and properties of flame⁃retardant waterborne polyurethanes［J］. Journal of Anyang Institute of Technology， 2016， 15（02）：21⁃26.
10	GEORG M. Thermal degradation of different flame retardant on polyurethane foams［J］. Thermochim Acta， 1995， 263： 59⁃71．
11	DUQESNE S， DELOBEL R， BRAS M L. A comparative study of the mechanism of action of ammonium polyphosphate and expandable graphite in polyurethane［J］. Polym Degrad Stab， 2002， 77： 333⁃344．
12	孙彦璞.聚酯型水性聚氨酯乳液粒径分布及乳液膜耐水性的研究［J］.涂料工业，2010， 40（ 3）： 32⁃35.
	SUN Y P. Study on partical size distribntion of polyester based waterborne polyurethane（ WPU） emulsion and water resistance of the film［J］. Paint＆Coatings Induslry， 2010， 40（ 3）： 32⁃35.
13	NIU X， NIE Z， WANG G. Preparation， flame retardancy， and thermal and mechanical properties of polyurethane containing phosphonated bisphenol⁃A units［J］. Fire and Materials， 2018， 42（8）： 933⁃945.
14	QUAN C， LI A， GAO N. Research on pyrolysis of PCB waste with TG⁃FTIR and Py⁃GC/MS［J］. Journal of Thermal Analysis and Calorimetry， 2011， 110（3）： 1 463⁃1 470.
15	REFERN J P. Property evaluation of FR polymeric materials using a range of instrumental techniques ［J］. Polymer Degradation and Stability， 1999， 64（3）： 561⁃592.
