Preparation and Performance of High Permeable Epoxy Waterproof and Anticorrosive Coating

doi:10.19491/j.issn.1001-9278.2021.02.002

Abstract

Abstract:

A permeable epoxy coating was prepared through a combination of bisphenol-A epoxy resin （E51）， furfural， acetone phenolic modified amine， 2，4，6-tris（dimethylaminomethyl）phenol （DMP-30） and other additives， and its reaction mechanism was analyzed. The influence of different additives on the film-forming ability of the coating was discussed. The depth of penetration to the surface of concretes with different strength grades along with other basic properties was also investigated. The results indicated that the BYK-333-modified coating exhibited an optimum film-forming ability and good permeability. The coating achieved bonding strength of 4.5 and 3.6 MPa on the dry base concrete surface and the wet base concrete surface， respectively. Moreover， the coating gained a maximum penetration depth of 5 mm on the C30 concrete surface， indicating good chemical resistance.

Key words: high permeability, epoxy resin, coating, additive

CLC Number:

TQ 323.5

WEI Daidong, ZENG Juanjuan, CHEN Haiji. Preparation and Performance of High Permeable Epoxy Waterproof and Anticorrosive Coating[J]. China Plastics, 2021, 35(2): 8-13.

Figures/Tables 9

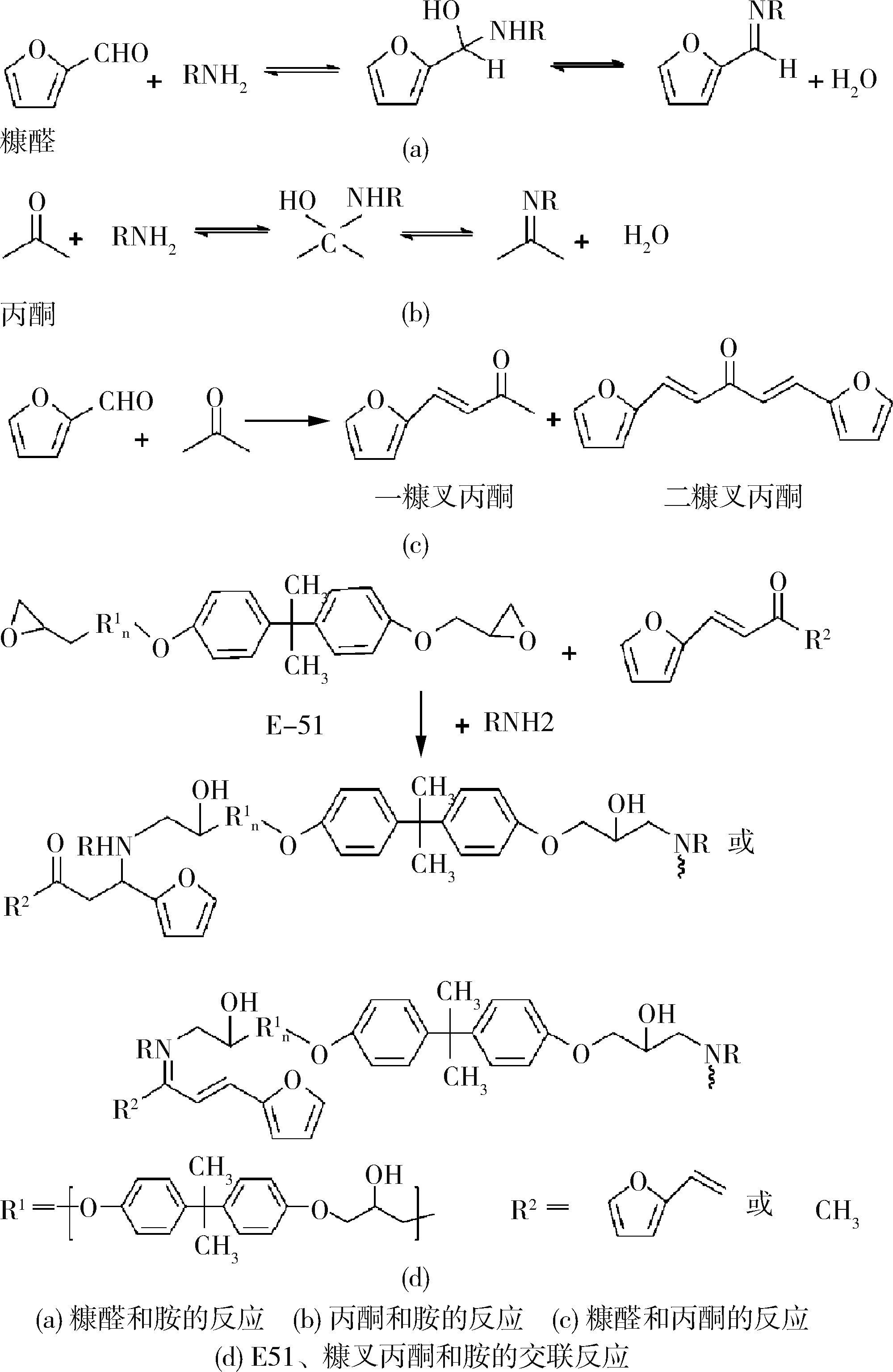

Fig.1. Reaction mechanism of the high permeable epoxy coating system

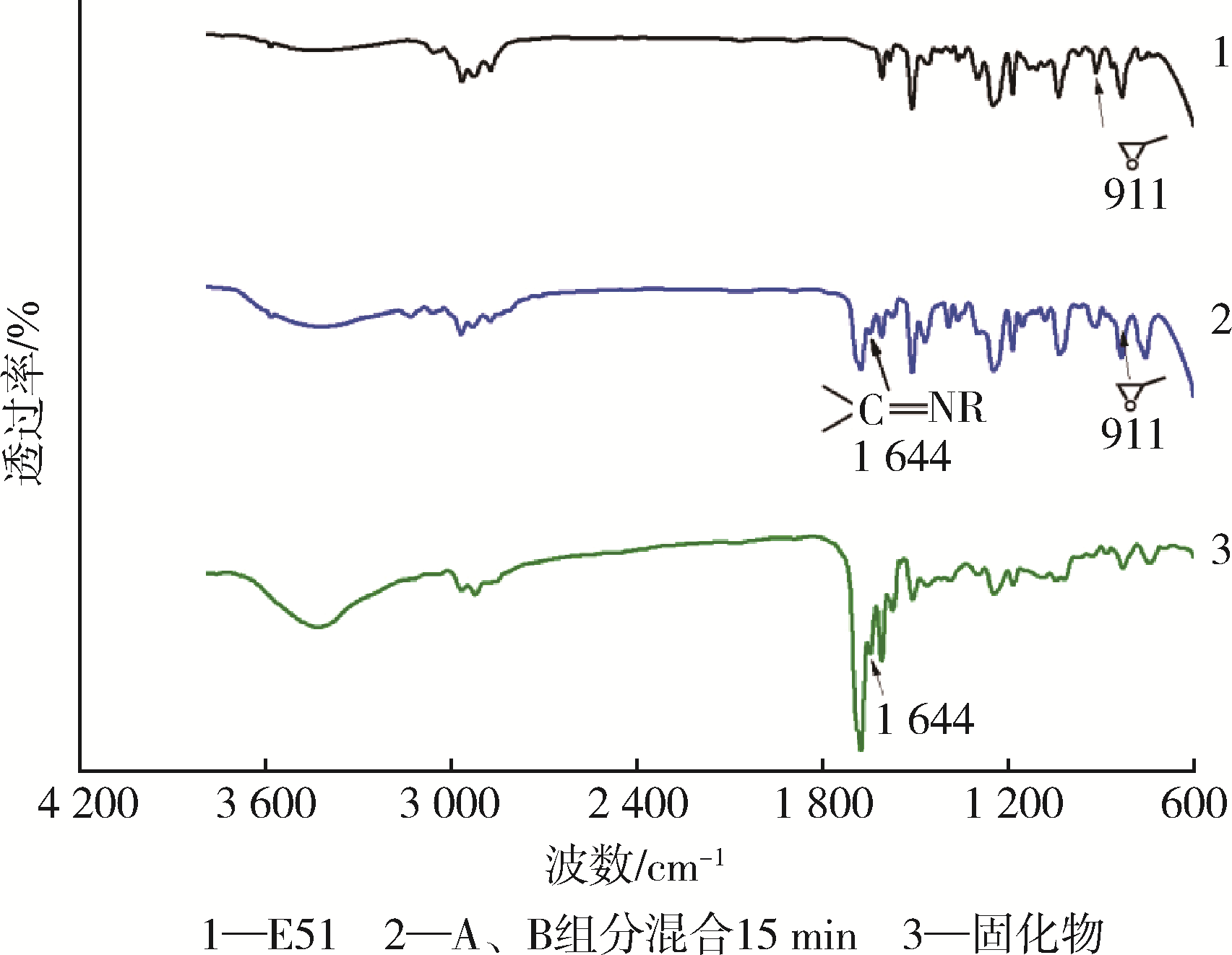

Fig.2. FTIR of the high permeable epoxy coating before and after curing

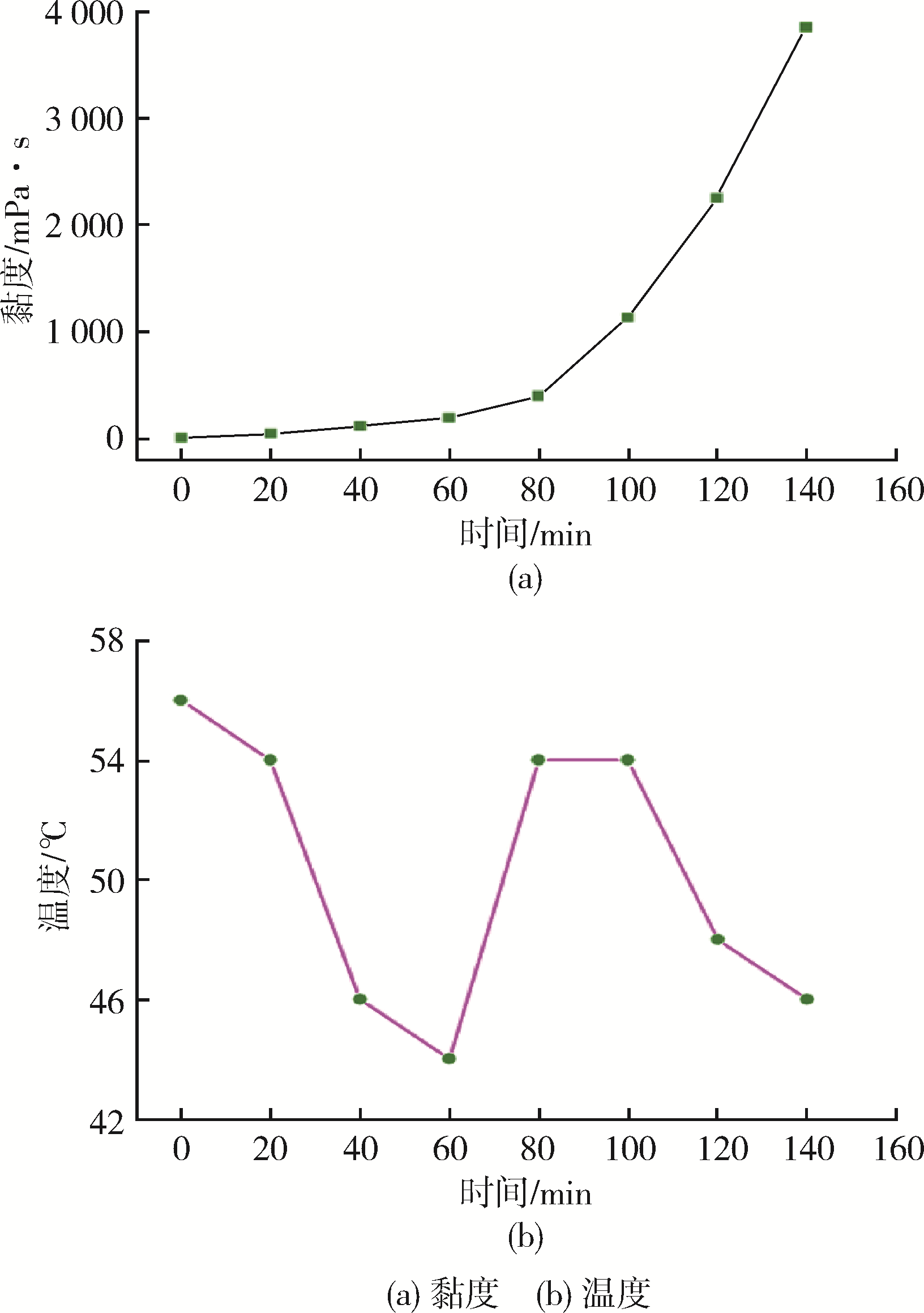

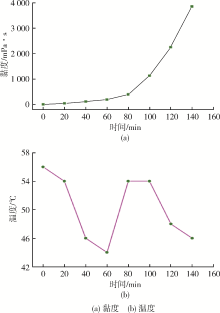

Fig.3. Viscosity and temperature of the coating versus time

Fig.4. Influence of the additives on film formation of the coatings on the concrete surface

Fig.5. SEM of the coating after different brushing times

Fig.6. Penetration depth of the coating on the concrete surface of different grade

项目	质量损失率/ %	涂层受腐蚀情况
耐酸性	2.92	无起皮、开裂、剥落
耐碱性	1.94	无起皮、开裂、剥落
耐盐性	0.88	无起皮、开裂、剥落

Tab.1. Chemical resistance of the high permeable epoxy coating

Fig.7. Chemical resistance of the coating

表干时间/h	实干时间/h	干基面粘接强度/MPa	潮湿基面粘接强度/MPa	抗压强度/MPa	凝胶含量/%	吸水率/%	固含量/%
6	11	4.5	3.6	91.7	95.8	0.21	80

Tab.2. Other properties of the high permeable epoxy coating

References 8

1	LIU B T， ZHU G Y， DING P J. The Research Progress of Epoxy Resin Coating in Building Waterproof［J］. Advanced Materials Research， 2013，（671/674）： 1 779⁃1 782.
2	韩伯雅，朱敢平，胡浩，等. 高渗透改性环氧涂料在天津地铁盾构管片外防腐防渗中的应用［J］. 中国建筑防水， 2010（2）：19⁃21.
	HAN B Y， ZHU G P， HU H， et al. Application of High Permeability Modified Epoxy Coating in Antisepsis and Anti⁃seepage of Shield Segments of Tianjin Subway［J］. China Building Waterproofing， 2010（2）：19⁃21.
3	曾娟娟，陈海基. 快速固化型环氧树脂灌浆材料的制备及性能［J］. 中国塑料， 2020， 34（4）：6⁃11.
	ZENG J J， CHEN H J. Preparation and Properties of Fast Curing Epoxy Resin Grouting Materials［J］. China Plastics， 2020， 34（4）：6⁃11.
4	薛光辉，郭岳峰. 水泥基材用环氧防水涂料的研究［J］. 中国建筑防水， 2013（2）：11⁃14.
	XUE G H， GUO Y F. Study on Epoxy Waterproofing Coating for Cement⁃based Materials［J］. China Building Waterproofing， 2013（2）：11⁃14.
5	叶林宏. 具有高渗透功能的改性环氧树脂防水防腐补强材料［J］. 工程质量， 2012， 29（10）：31⁃36.
	YE L H. Waterproof， Antisepsis and Reinforced Material of Higher Penetrative Modified Epoxy Resin［J］. Construction Quality， 2012， 29（10）：31⁃36.
6	陈柳利，刘伟区，王政芳. 糠醛丙酮改性环氧树脂体系涂料的配制及性能研究［J］. 涂料工业， 2017， 47（9）：1⁃5.
	CHEN L L， LIU W Q， WANG Z F. Study on Preparation and Properties of Modified Epoxy Resin Coating System with Furfural and Acetone as Active Diluent［J］. Paint & Coatings Industry， 2017， 47（9）：1⁃5.
7	ZHANG G L， XIE Q Y， MA C F， et al. Permeable Epoxy Coating with Reactive Solvent for Anticorrosion of Concrete［J］. Progress in Organic Coatings， 2018， 117：29⁃34.
8	SáDABA I， OJEDA M， MARISCAL R， et al. Catalytic and Structural Properties of Co⁃precipitated Mg⁃Zr Mixed Oxides for Furfural Valorization Via Aqueous Aldol Condensation with Acetone［J］. Applied Catalysis B Environmental， 2011， 101（3）：638⁃648.
