Preparation and Oil Absorption Property of Polyurethane/Polyvinylidene Fluoride Hexafluoropropylene Nanofiber Hydrophobic Sponge

doi:10.19491/j.issn.1001-9278.2021.02.008

Abstract

Abstract:

A type of hydrophobic/oleophilic functional commercial sponges based on polyurethane （PU）/poly（vinylidene fluoride hexafluoropropylene）（PVDFHFP） nanofibers composites was successfully prepared through an electrospinning technology at a high relative humidity of 90 % and a short collection distance of 6 cm. The morphology and structure of the composite sponge were characterized by SEM， FTIR and XRD， and its oil absorption performance was investigated. The results indicated that the PVDF-HFP nanofibers and PU were partially dissolved and mixed at the interface due to the solvent action of N， N-dimethyl formamide， resulting in a strong binding force. The sponges exhibited excellent hydrophobic properties and a good oil absorption ability with an oil absorption capacity of 30.8 g/g for olive oil， 25.2 g/g for lubricating oil， 16.8 g/g for dimethyl silicone oil and 26.4 g/g for n-hexane. The sponges also showed an excellent reusability， and their oil absorption could still maintain 97.2 % of the original capacity after 50 times cycles.

Key words: hydrophobicity, sponge, polyurethane, oil absorption, polyvinylidene fluoride hexafluoropropylene

CLC Number:

TQ323

LIU Zhi, HUANG Xiaohai, GAO Bing, WU Bo, RUAN Fangtao. Preparation and Oil Absorption Property of Polyurethane/Polyvinylidene Fluoride Hexafluoropropylene Nanofiber Hydrophobic Sponge[J]. China Plastics, 2021, 35(2): 46-51.

Figures/Tables 9

纺丝参数	浓度/%	电压/kV	湿度/%	温度/°C	接收距离/cm
数值	18	18	90	20	6

Tab. 1. The preparation parameters of PU/hydrophobic PVDF?HFP nanofiber sponge

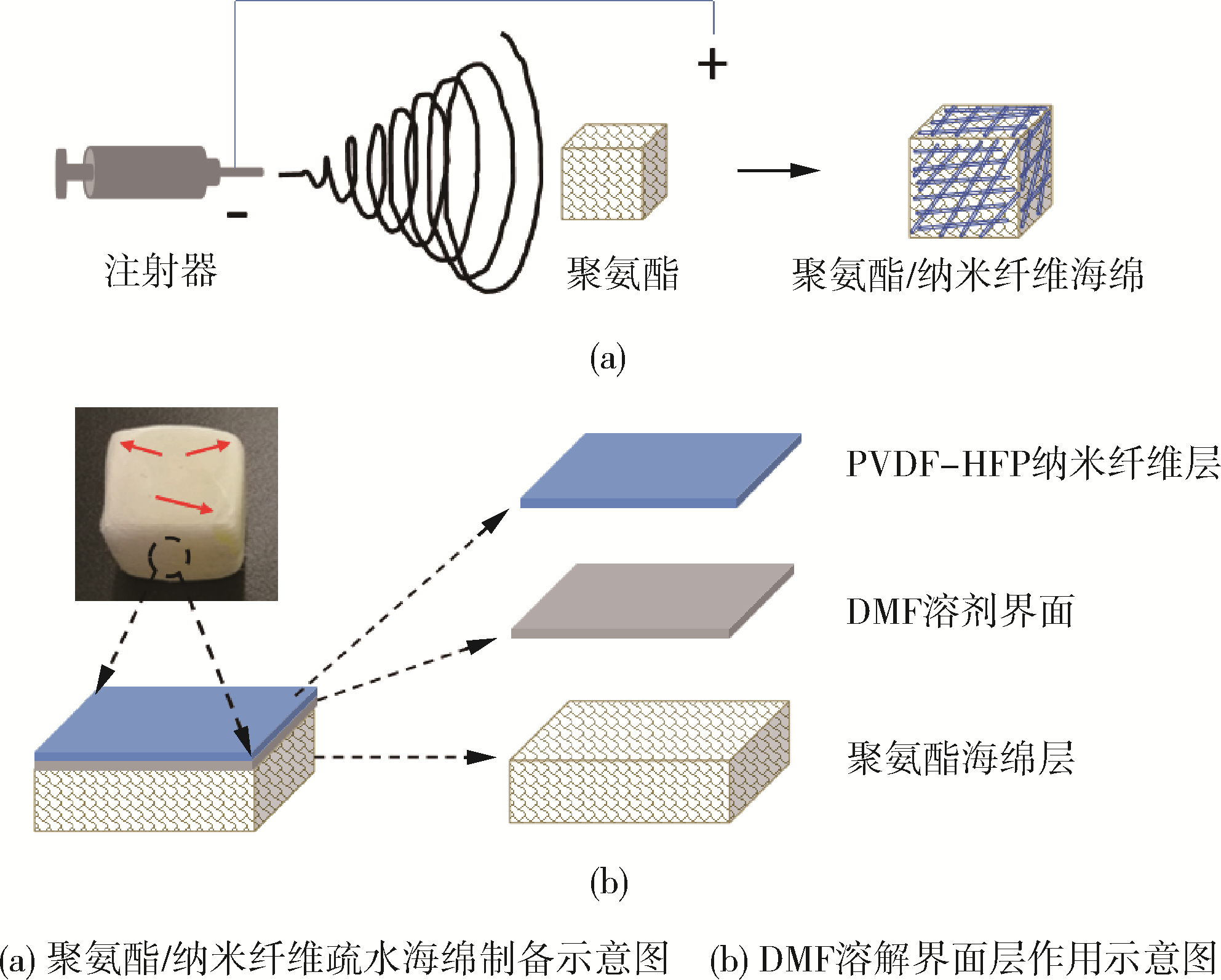

Fig.1. The schematic diagram of preparation of PU/hydrophobic PVDF?HFP nanofiber sponge

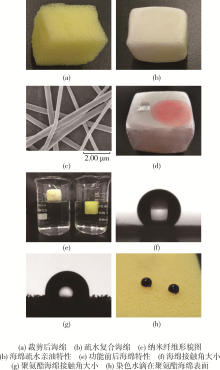

Fig.2. The morphology and wettability of PU sponge and PU/PVDF?HFP sponge

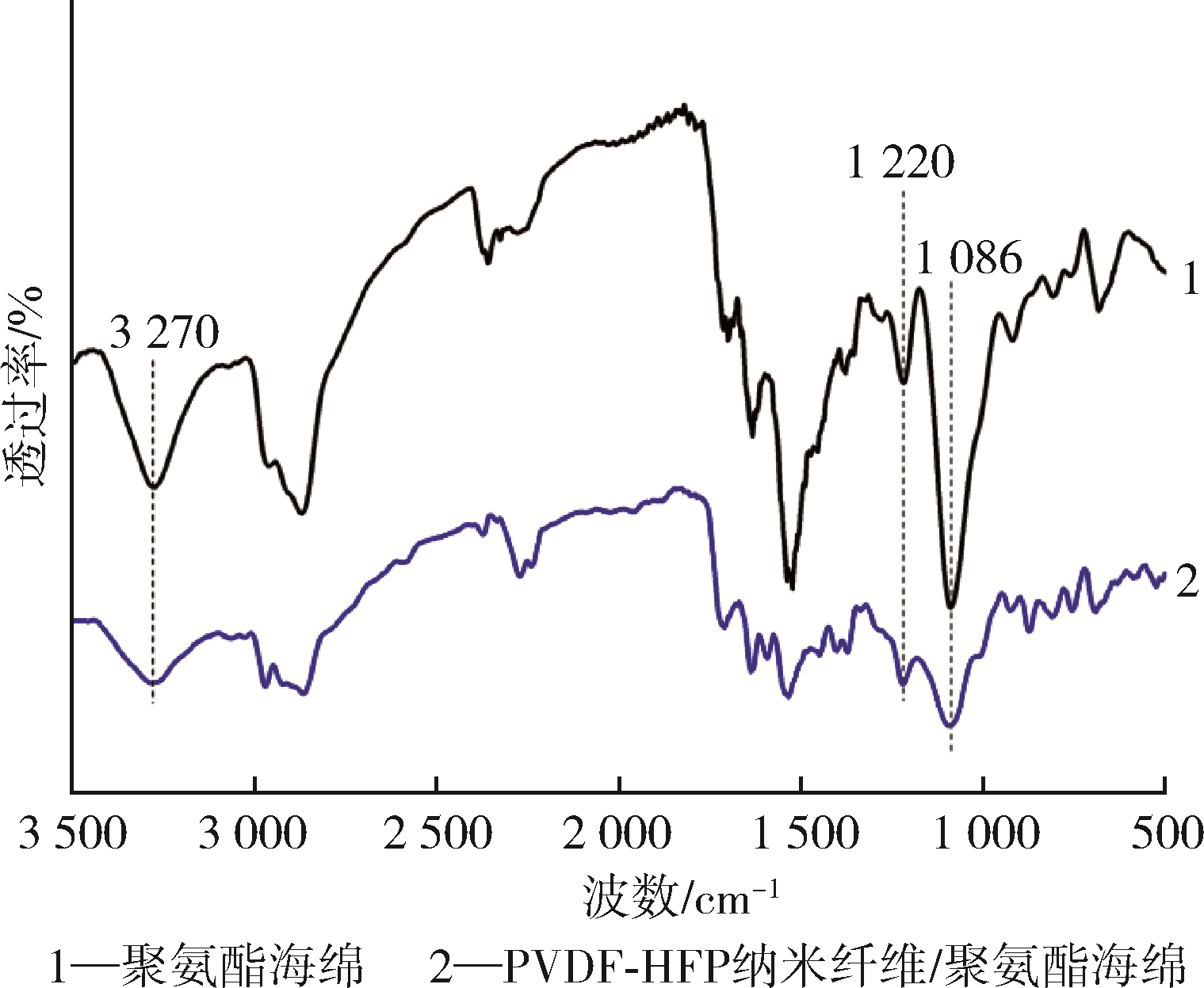

Fig.3. FTIR spectrum of PU/PVDF?HFP nanofiber sponge

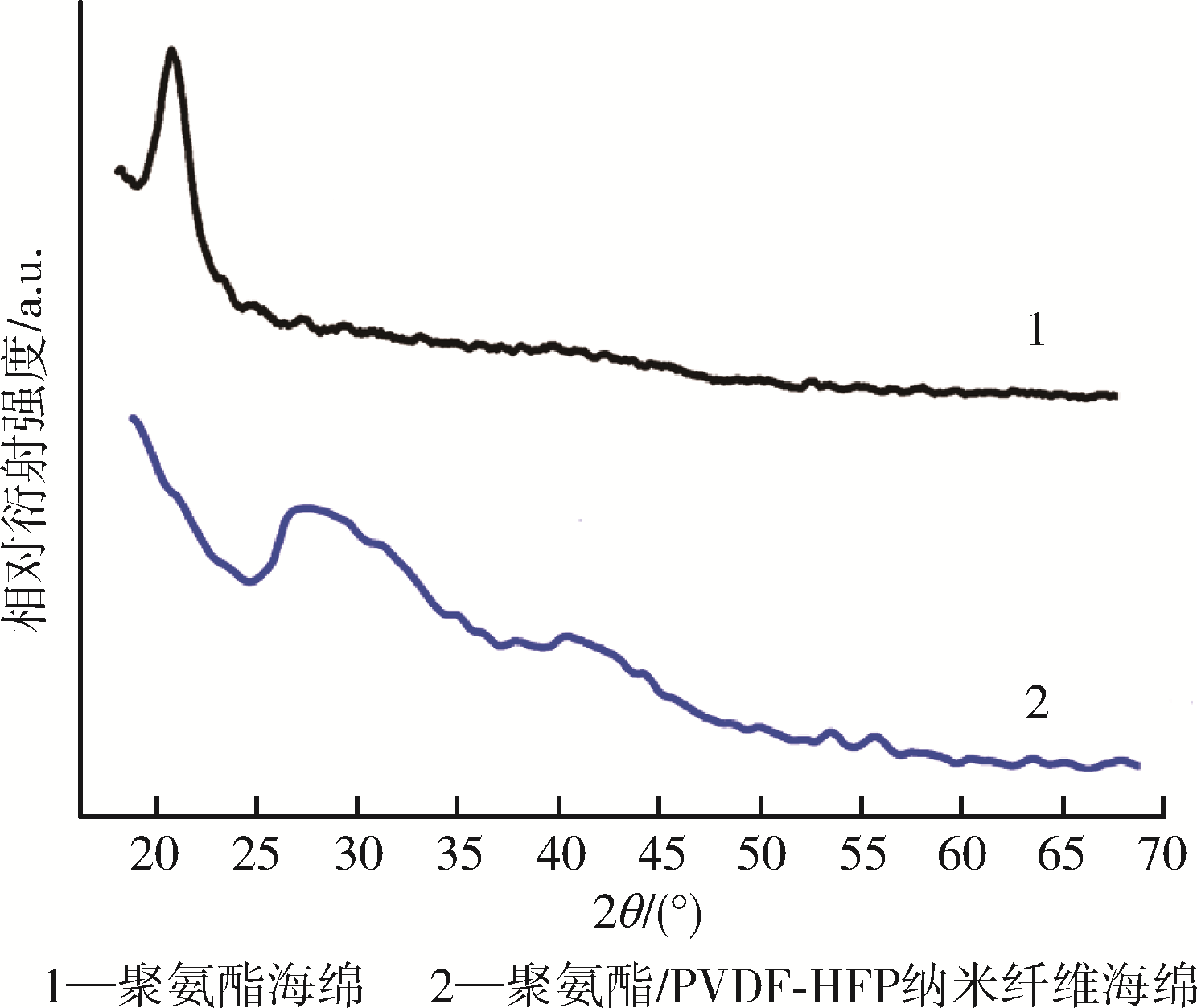

Fig.4. XRD spectrum of PU/PVDF?HFP nanofiber sponge

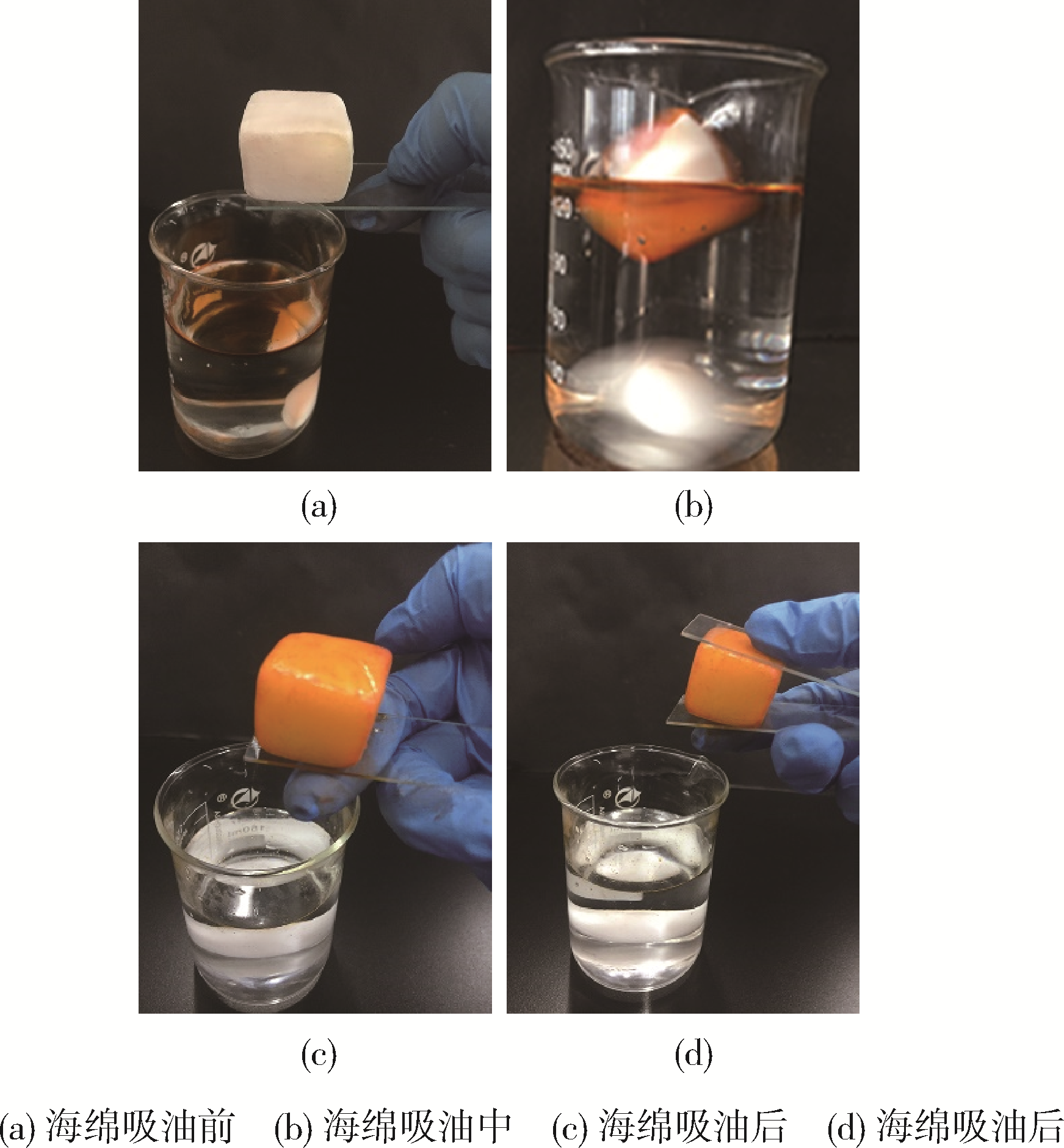

Fig.5. The oil absorption process of PU/PVDF?HFP nanofiber sponge

Fig.6. The oil absorption property of PU/PVDF?HFP nanofiber sponge

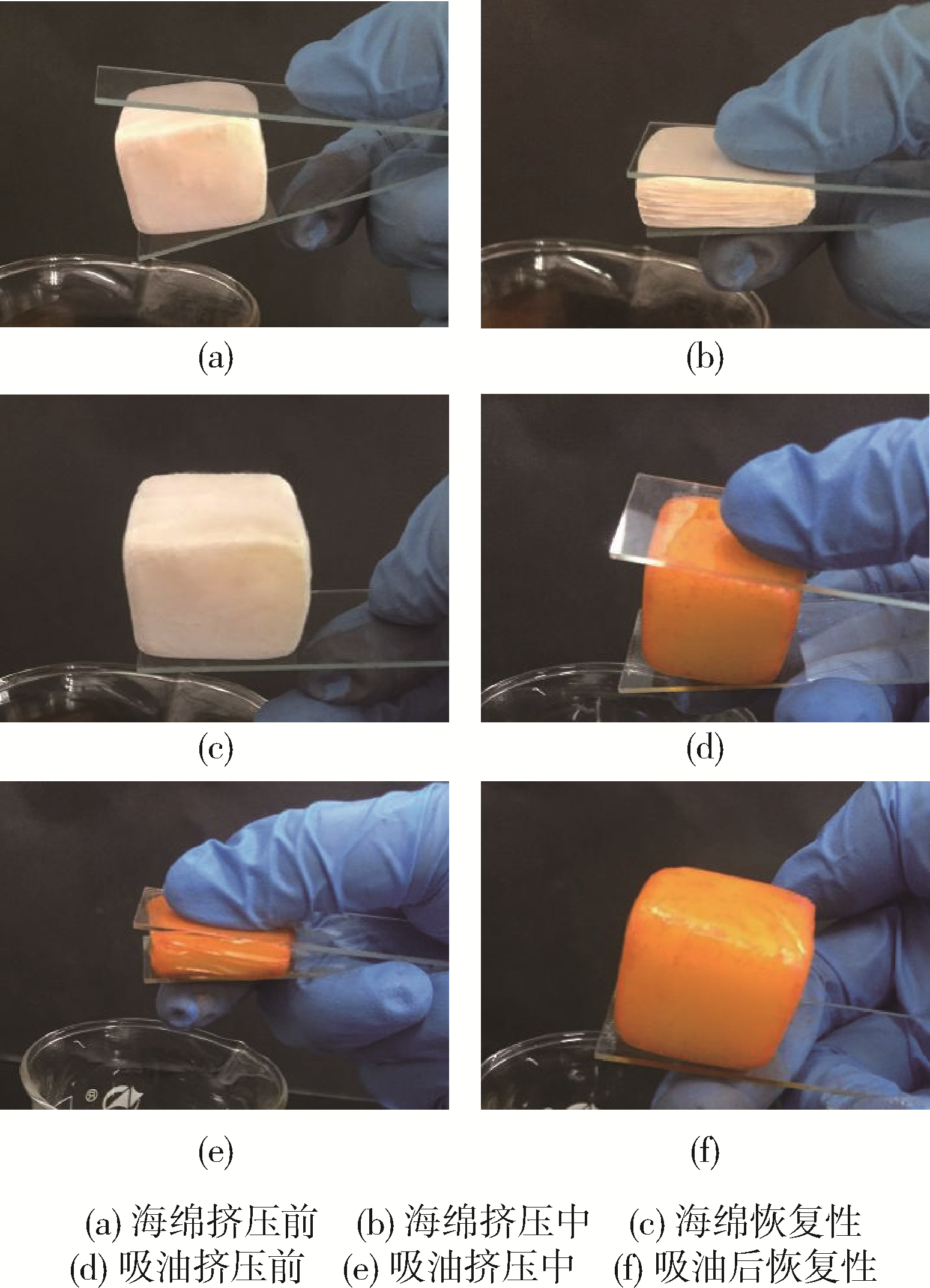

Fig.7. The elastic recovery property of PU/PVDF?HFP nanofiber sponge

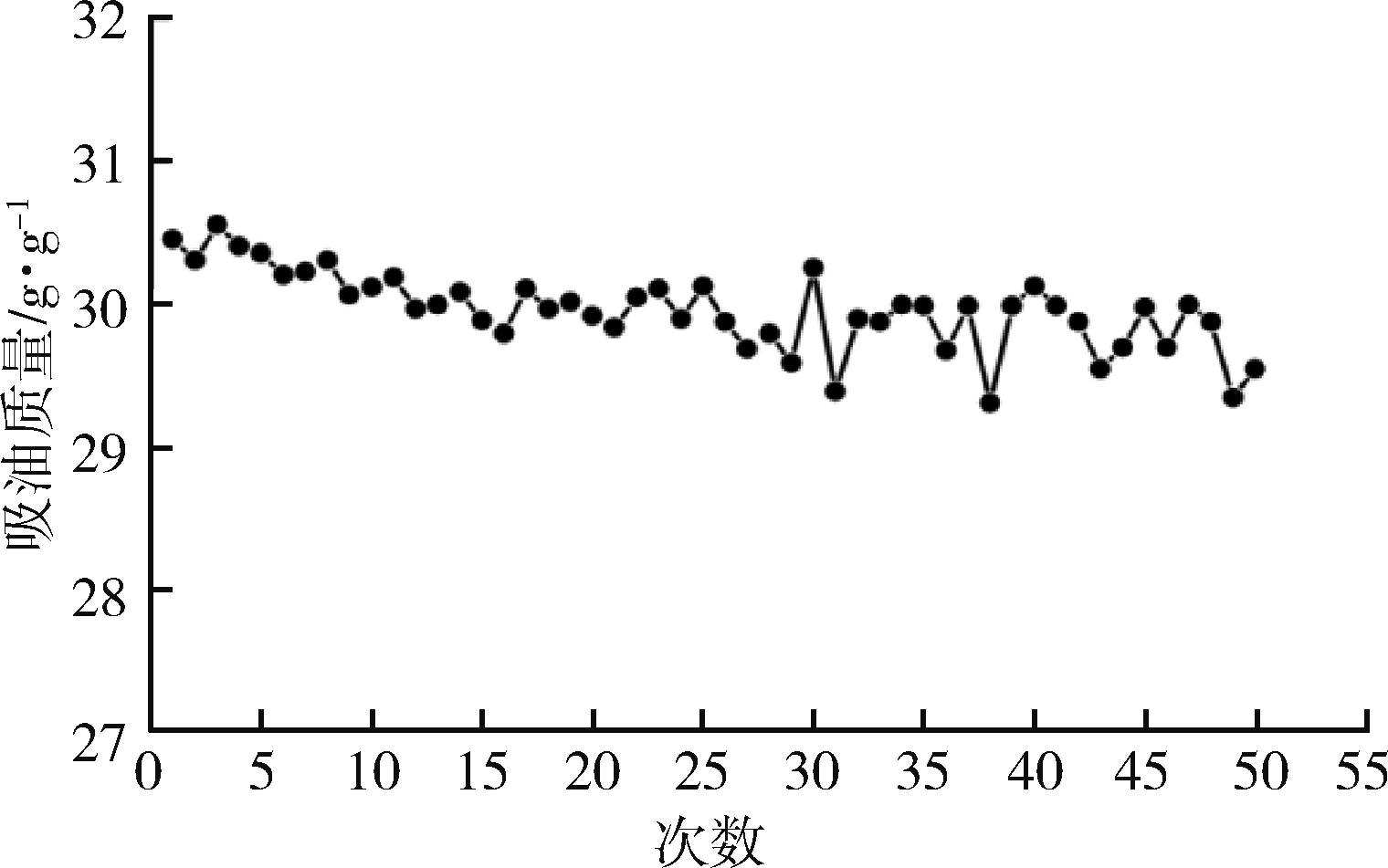

Fig.8. The reusability of PU/PVDF?HFP nanofiber sponge

References 13

1	杜国勇，朱成旺，曾文强，等. 石墨烯复合改性海绵的制备及其吸油性能［J］. 环境工程学报， 2018， 12（3）：741⁃750.
	DU G Y， ZHU C W， ZENG W Q， et al. Preparation and Oil Absorption Properties of Graphene Composite Modified Sponge［J］. Chinese Journal of Environmental Engineering， 2018， 12（3）：741⁃750.
2	程千会，刘长松. 用于油水分离的超疏水氧化锌海绵的制备及其性能［J］. 中国表面工程， 2018， 31（1）：148⁃155.
	CHENG Q H， LIU C S. Fabrication and Properties of Superhydrophobic ZnO Sponge for Oil⁃Water Separation［J］. China Surface Engineering， 2018， 31（1）：148⁃155.
3	王伟，潘海峰，陆愈实，等. 吸油型聚氨酯泡沫材料的制备及其油水分离性能研究［J］. 武汉大学学报（工学版）， 2017， 50（5）：727⁃732.
	WANG W， PAN H F， LU Y S， et al. Fabrication of Oil Absorptive Polyurethane Foam and Study of Its Properties for Oil/Water Separation［J］. Engineering Journal of Wuhan University， 2017， 50（5）：727⁃732.
4	常梦洁，刘俊. 二硫化钼纳米片修饰聚氨酯海绵及吸油性能研究［J］. 人工晶体学报， 2017， 46（1）：134⁃138.
	CHANG M J， LIU J. Preparation and Oil Absorption Properties of MoS₂⁃Modified PU Sponge［J］. Journal of Synthetic Crystals， 2017， 46（1）：134⁃138.
5	程千会. 超疏水超亲油聚氨酯海绵的制备及其在油水分离方面的应用［D］. 青岛理工大学， 2018.
6	邵水源，张洋，杜珣涛，等. 静电纺丝法制备聚乙烯吡咯烷酮/含氢硅油复合纤维膜及气体过滤性能的研究［J］. 塑料工业， 2017， 45（5）：31⁃34.
	SHAO S Y， ZHANG Y， DU X T， et al. On Preparation of Polyvinyl Pyrrolidone/Hydrogen Silicone Composite Fiber Membrane by Electrostatic Spinning and Its Filtering Properties［J］. China Plastics Industry， 2017， 45（5）：31⁃34.
7	GE J L， ZONG D D， JIN Q， et al. Biomimetic and Superwettable Nanofibrous Skins for Highly Efficient Separation of Oil⁃in⁃Water Emulsions［J］. Advanced Functional Materials， 2018， 28（10）：1 705 051.
8	WANG Z， MA H Y， CHU B， et al. Super⁃Hydrophobic Polyurethane Sponges for Oil Absorption［J］. Separation Science and Technology， 2017， 52（2）：221⁃227.
9	LIN B， CHEN J， LI Z T， et al. Superhydrophobic Modification of Polyurethane Sponge for the Oil⁃Water Separation［J］. Surface and Coatings Technology， 2019， 359：216⁃226.
10	程千会，刘长松，刘盛友. 超疏水聚硅氧烷/聚氨酯海绵的制备及其油水分离特性的研究［J］. 材料研究与应用， 2017， 11（4）：230⁃235.
	CHENG Q H， LIU C S， LIU S Y. Fabrication of Superhydrophobic Polysiloxane/Polyurethane Sponge and Its Oil⁃Water Separation［J］. Materials Research and Application， 2017， 11（4）：230⁃235.
11	LIU F T， PAN Q M. Facile Fabrication of Robust Ice⁃Phobic Polyurethane Sponges［J］. Advanced Materials Interfaces， 2015， 2（15）：1500219.
12	刘江河. 锌离子导电PVDF⁃HFP基聚合物电解质薄膜的制备及性能研究［D］.哈尔滨工业大学， 2019.
13	赵博. 熔喷非织造布材料吸油性能的研究及分析［J］. 聚酯工业， 2017， 30（1）：24⁃29.
	ZHAO B. Testing and Analysis of the Oil Absorption Performances of Melt Blown Nonwoven Material［J］. Polyester Industry， 2017， 30（1）：24⁃29.
