Preparation and properties of poly（lactic acid⁃co⁃glycolic acid） film

doi:10.19491/j.issn.1001-9278.2022.02.006

Abstract

Abstract:

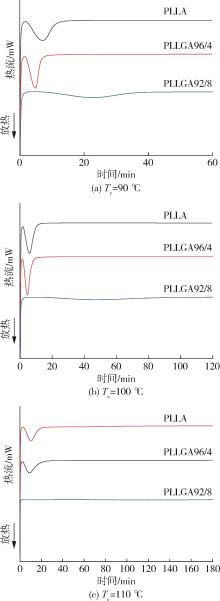

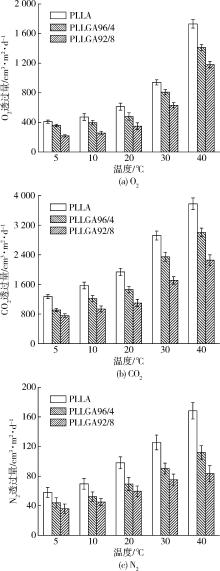

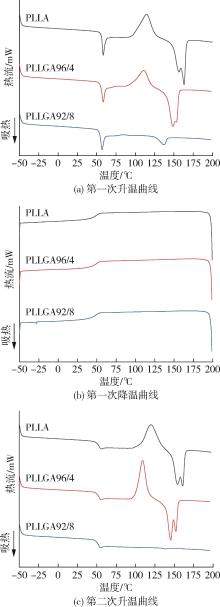

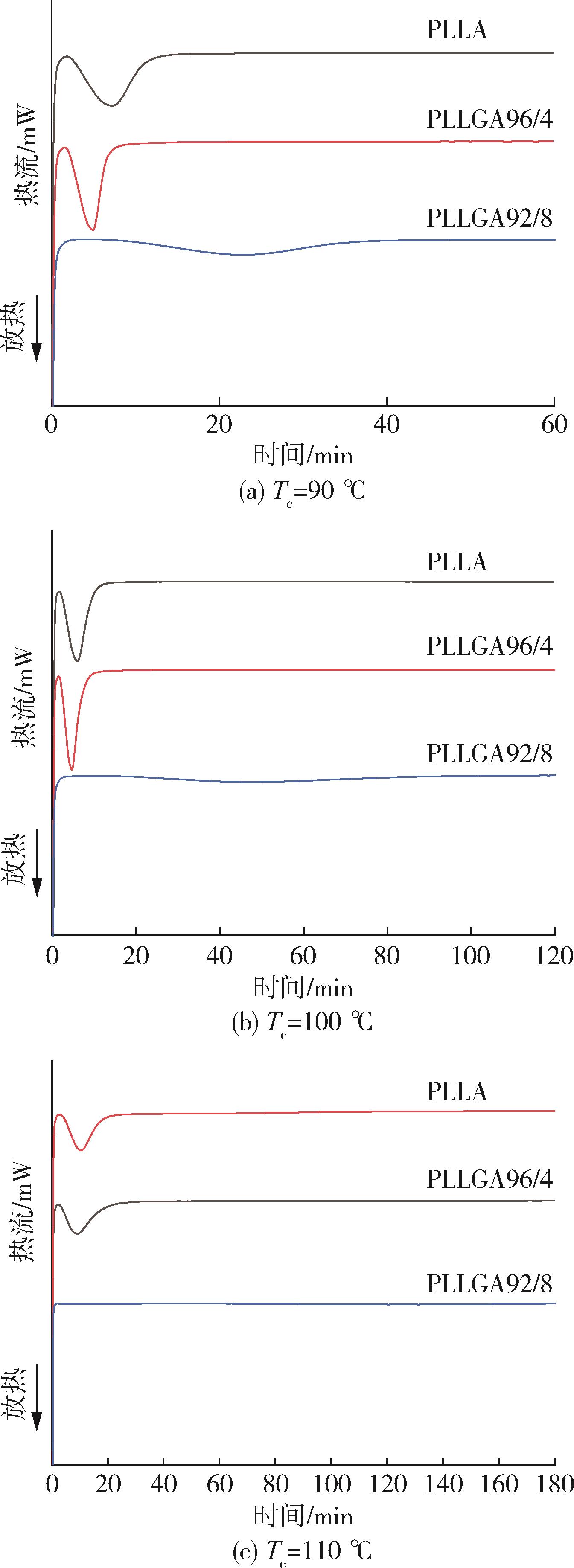

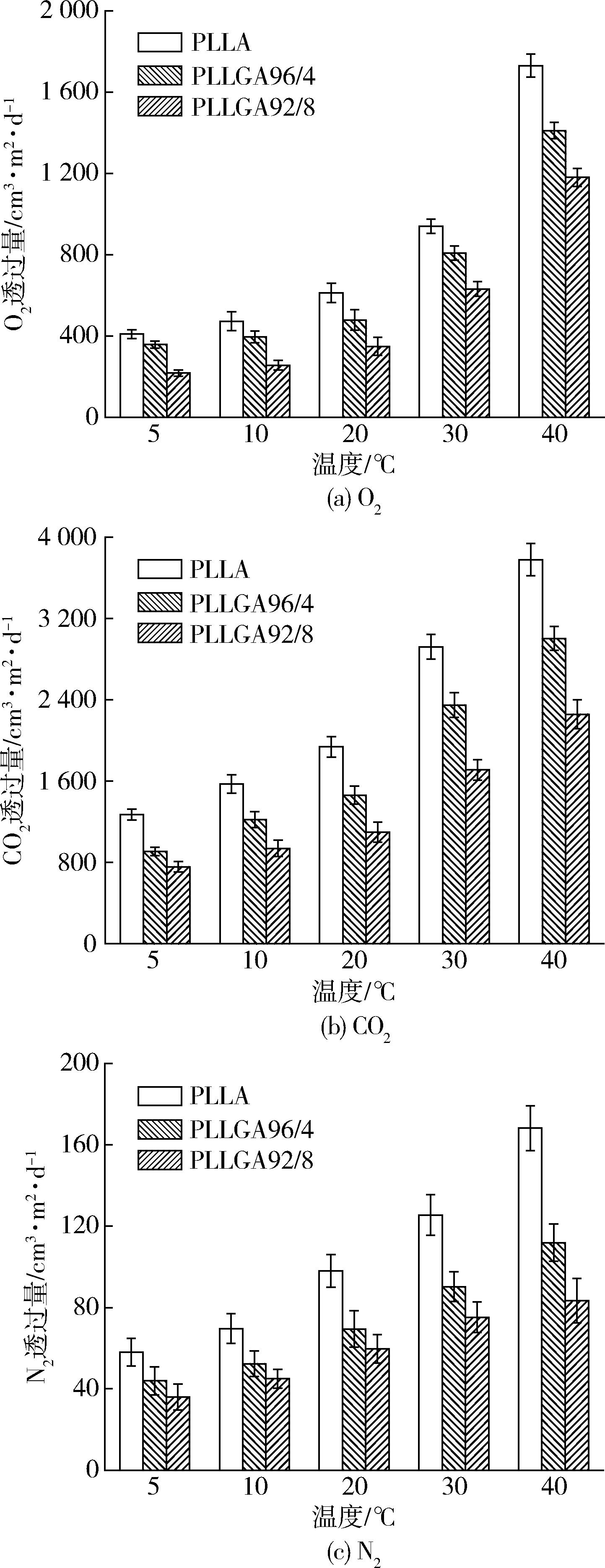

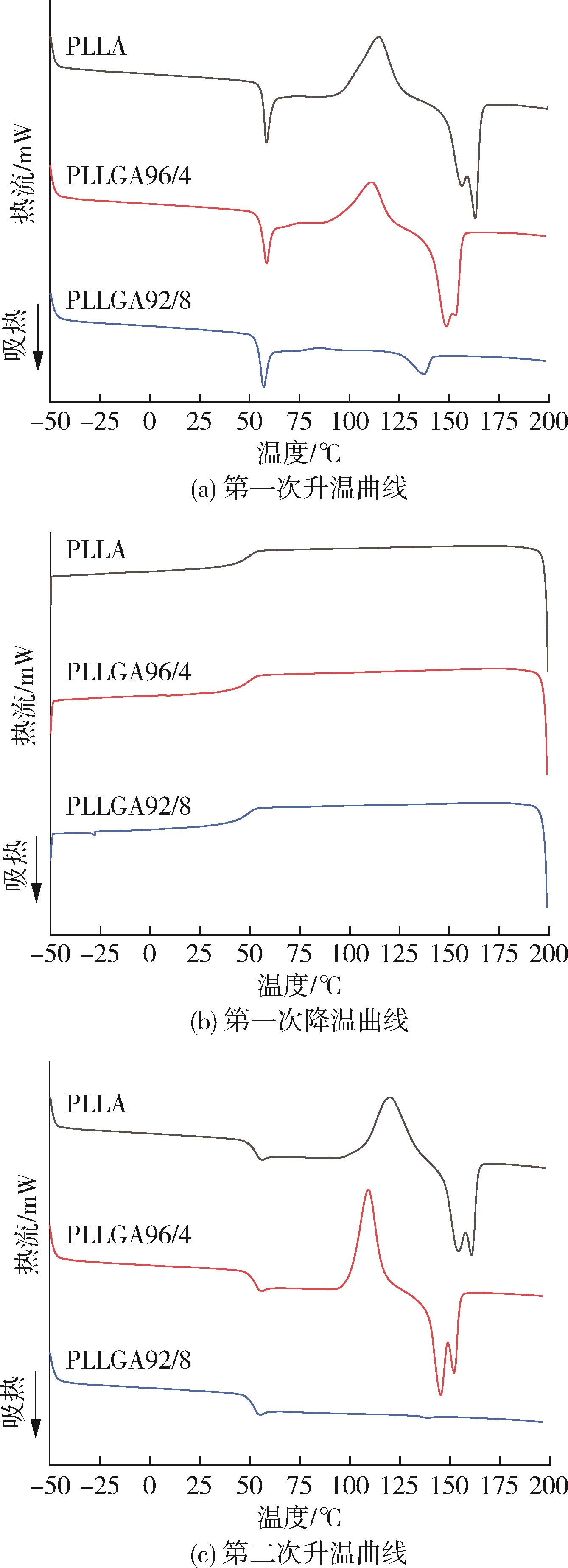

Poly（lactic acid?co?glycolic acid）（PLLGA） was synthesized through one?step melt copolymerization using lactic acid （L?LA） and glycolic acid （GA） as raw materials， and its mechanical properties， crystallization properties and gas barrier properties were investigated. The crystalline characteristics of the PLLGA film were analyzed through Avrami equation using differential scanning calorimetry， and its mechanical and gas penetration performance were evaluated using a universal tensile testing machine and a differential pressure permeability meter through a differential pressure method. The results indicated that the introduction of GA generated a greater influence on the crystalline properties of the PLLGA film. GA could act as a nucleation agent to generate a nucleating effect on the PLLGA with a GA mole fraction of 4 %. The PLLGA film exhibited a faster crystallization rate than pure PLLA film， and its semi?crystallization time decreased. When the PLLGA had a GA mole fraction of 8 %， GA restricted the movement of the molecular chain， destroying the regularity between the copolymer molecules. This leads to a significant reduction in the crystalline properties of the PLLGA， making it in the amorphous state. With an increase in the mass ratio of GA， the PLLGA film presented a gradual decrease in tensile strength and elastic modulus， while its elongation at break increased significant. The elongation at break of the PLLGA with a GA mole fraction of 8 % reached 130.1 %， which was 21.3 times the value of pure PLLA film. In addition， the gas permeability of the PLLGA film decreased. Compared with the pure PLLA film， the O₂， CO₂， and N₂ permeability of PLLGA film with a GA mole fraction of 8 % at 5 ℃ were reduced by 47 %， 41 %， and 39 %， respectively.

Key words: poly（lactic acid）, poly（lactic acid?glycolic acid）, crystallization performance, mechanical property, gas barrier property

CLC Number:

TQ323.4

SUN Tao, YANG Qing, HU Jian, WANG Yangyang, LIU Bo, YUN Xueyan, DONG Tungalag. Preparation and properties of poly（lactic acid⁃co⁃glycolic acid） film[J]. China Plastics, 2022, 36(2): 33-40.

Figures/Tables 10

References 21

1	GENOVESE L ， SOCCIO M ， LOTTI N ， et al . Design of biobased PLLA triblock copolymers for sustainable food packaging： thermo⁃mechanical properties， gas barrier ability and compostability［J］. European Polymer Journal， 2017，95：289⁃303.
2	JIANG Y ， YAN C ， WANG K ， et al . Super⁃toughed PLA blown film with enhanced gas barrier property available for packaging and agricultural applications［J］.Materials， 2019，12（10）：16⁃63.
3	LIZUNDIA E ， VILAS J L ， SANGRONIZ A ， et al . Light and gas barrier properties of PLLA/metallic nanoparticles composite films［J］. European Polymer Journal， 2017，91：10⁃20.
4	宋树鑫，梁敏，王羽，等 . 聚乳酸/SiO_X 薄膜的制备及对气体的透过性和选择性［J］. 高分子材料科学与工程， 2016，32（11）：135⁃139.
	SONG S X ， LIANG M ， WANG Y ，et al . Preparation of poly （L⁃lactic acid）/SiO_X film and its gas permeability and permselectivity［J］. Polymer Mateials Science and Engineering， 2016，32（11）：135⁃139.
5	ATALLAH A A ， EL⁃DEEB A M ， MOHAMED E N . Shelf⁃life of domiati cheese under modified atmosphere packaging［J］. Journal of Dairy Science， 2021，104（8）：8 568⁃8 581.
6	于力，李继兰，钟宇 . 增塑剂对聚乳酸/热塑淀粉复合膜性能的影响［J］. 包装工程， 2020，41（5）：121⁃127.
	YU L ， LI J L ， ZHONG Y . Effects of plasticizer on properties of PLA/TPS composite films［J］.Packaging Enginee⁃ring，2020，41（5）：121⁃127.
7	ZHAI S ， LIU Q ， ZHAO Y ， et al . A Review： research progress in modification of poly （lactic acid） by lignin and cellulose［J］. Polymers， 2021，13（5）：776.
8	LI G ， ZHAO M ， XU F ， et al . Synthesis and biological app⁃lication of polylactic acid［J］. Molecules， 2020，25（21）：5 023.
9	BUDAK K ， SOGUT O ， AYDEMIR S U . A review on synthesis and biomedical applications of polyglycolic acid［J］. Journal of Polymer Research， 2020，27：208.
10	SAMANTARAY P K ， LITTLE A ， HADDLETON D M ， et al . Poly （glycolic acid）（PGA）： a versatile building block expanding high performance and sustainable bioplastic applications［J］. Green Chemistry， 2020，22（13）：4 055⁃4 081.
11	AYYOOB M ， LEE D H ， KIM J H ， et al . Synthesis of poly （glycolic acids） via solution polycondensation and investigation of their thermal degradation behaviors［J］. Fibers and Polymers， 2017，18（3）：407⁃415.
12	YOU Y ， MIN B ， LEE S J ， et al . In vitro degradation behavior of electrospun polyglycolide， polylactide， and poly（lactide⁃co⁃glycolide）［J］. Journal of Applied Polymer Science， 2005，95（2）：193⁃200.
13	PHA·M T L ， KIM D W . Poly（lactic⁃co⁃glycolic acid） nanomaterial⁃based treatment options for pain management： a review［J］. Nanomedicine， 2020，15（19）：1 897⁃1 913.
14	NASKAR S ， DAS S K， SHARMA S ， et al . A review on designing poly （lactic⁃co⁃glycolic acid） nanoparticles as drug delivery systems［J］. Pharm Nanotechnol， 2021，9（1）：36⁃50.
15	MURCIA V M A ， RVAN PUTTEN ， GRUTER G M . PLGA barrier materials from CO₂.The influence of lactide co⁃monomer on glycolic acid polyesters［J］. ACS Applied Polymer Materials， 2020，2（7）：2 706⁃2 718.
16	ITO F ， YAMADA H . Physical properties of microspheres prepared by blending poly（lactide⁃co⁃glycolide） and poly lactide［J］. Bulletin of Materials Science， 2021，44：20.
17	MA S ， FENG X ， LIU F ， et al . The pro⁃inflammatory response of macrophages regulated by acid degradation produ⁃cts of poly（lactide⁃co⁃glycolide） nanoparticles［J］. Engineering in Life Sciences， 2021，21（10）：709⁃720.
18	WANG D ， XIAO D ， LU M ， et al . Immobilization of poly（lactide⁃co⁃glycolide） microspheres on bone implant materials for antibiotic release and the binding mechanisms［J］. RSC Advances， 2020，10（12）：7 251⁃7 258.
19	SAMADI K ， FRANCISCO M ， HEGDE S ， et al . Mechanical， rheological and anaerobic biodegradation beha⁃vior of a poly （lactic acid） blend containing a poly （lactic acid）⁃co⁃poly （glycolic acid） copolymer ［J］. Polymer Degradation and Stability， 2019，170： 109018.
20	SAMPATH M ， LAKRA R ， KORRAPATI P ， et al . Curcumin loaded poly （lactic⁃co⁃glycolic） acid nanofiber for the treatment of carcinoma［J］. Colloids and surfaces B： biointerfaces， 2014，117：128⁃134.
21	CHEN S ， ZHANG X ， HE M ， et al . Degradation of PGA， prepared by reactive extrusion polymerization， in water， humid， and dry air， and in a vacuum［J］. Journal of Materials Research， 2020，35（14）：1 846⁃1 856.

样品	T_c/℃	n	K	t_1/2/min
PLLA	90	2.37	1.23×10^-2	5.28
	100	2.06	3.68×10^-2	4.15
	110	1.91	1.21×10^-2	8.31
PLLGA96/4	90	2.46	4.80×10^-2	2.96
	100	2.17	5.97×10^-2	3.09
	110	2.54	2.63×10^-3	8.99
PLLGA92/8	90	2.18	1.89×10^-3	15.00
	100	2.61	5.35×10^-5	37.73
	110	1.67	1.72×10^-4	143.75

样品	T_c/℃	n	K	t_1/2/min
PLLA	90	2.37	1.23×10^-2	5.28
	100	2.06	3.68×10^-2	4.15
	110	1.91	1.21×10^-2	8.31
PLLGA96/4	90	2.46	4.80×10^-2	2.96
	100	2.17	5.97×10^-2	3.09
	110	2.54	2.63×10^-3	8.99
PLLGA92/8	90	2.18	1.89×10^-3	15.00
	100	2.61	5.35×10^-5	37.73
	110	1.67	1.72×10^-4	143.75

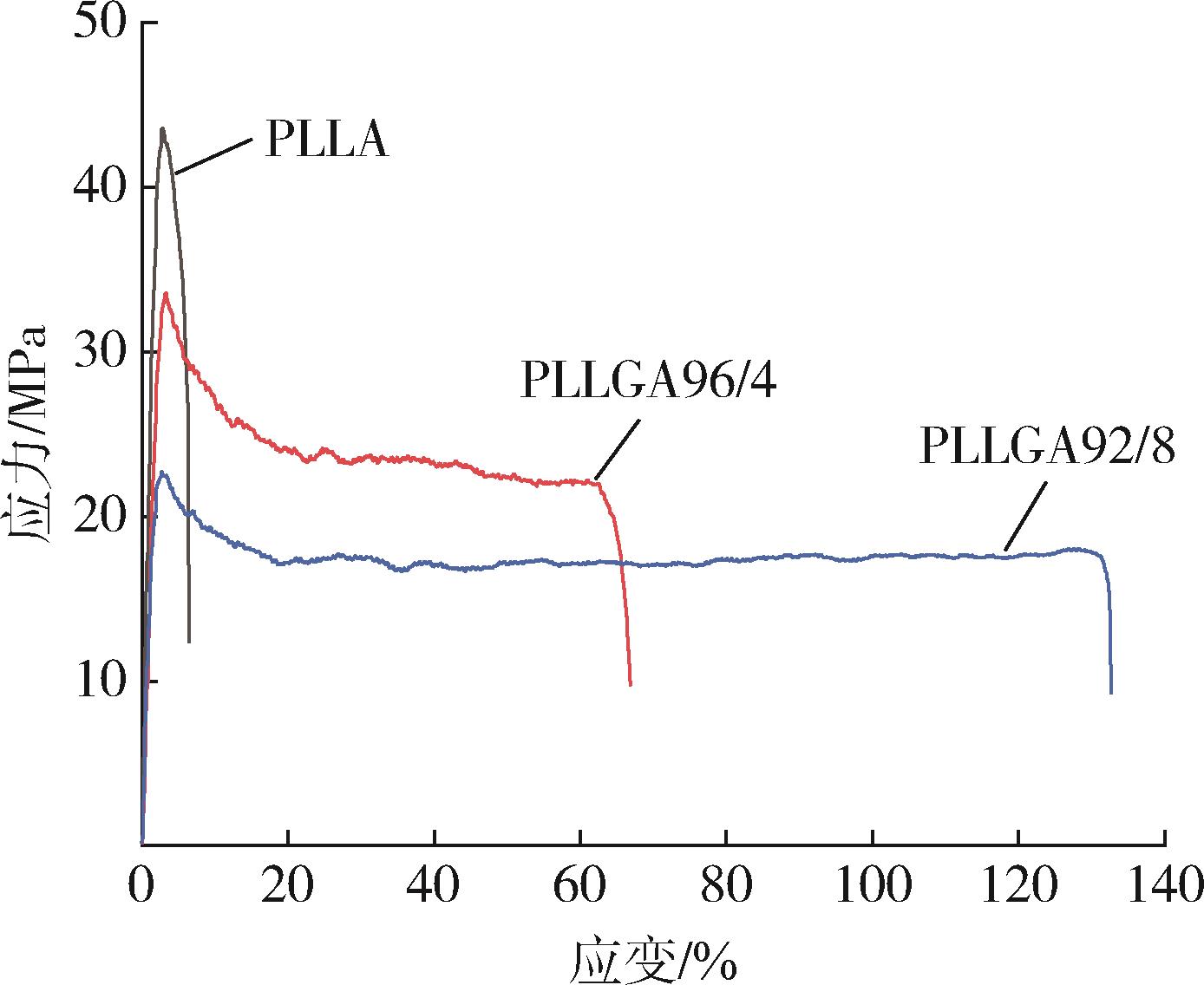

样品	弹性模量/MPa	拉伸强度/MPa	断裂伸长率/%
PLLA	1 551.3±21	43.3±2	6.1±1
PLLGA96/4	1 020.4±12	33.2±3	62.9±4
PLLGA92/8	655.5±8	21.3±3	130.1±11

样品	弹性模量/MPa	拉伸强度/MPa	断裂伸长率/%
PLLA	1 551.3±21	43.3±2	6.1±1
PLLGA96/4	1 020.4±12	33.2±3	62.9±4
PLLGA92/8	655.5±8	21.3±3	130.1±11
