Preparation and characterizations of biodegradable PBAT/PLA/biomass garbage bags

doi:10.19491/j.issn.1001-9278.2022.11.019

Abstract

Abstract:

The garbage bags based on poly（butylene adipic acid⁃co⁃terephthalate）（PBAT）/poly（lactic acid）（PLA）/biomass complex powder composites at a mass ratio 74.26/4.95/19.80 were prepared through granulation and extrusion blowing processes. PBAT and PLA were melt blended with bamboo， lignin， and straw complex powders. The microstructure， composition， heat resistance， tensile properties and leakage resistance of the garbage bags were characterized using scanning electron microscopy， Fourier⁃transform infrared spectroscopy， X⁃ray diffraction， thermogravimetric analysis， and differential scanning calorimetry， and their practicability was also evaluated. The results indicated that the dispersibility of three types of biomass powders in the PBAT/PLA matrix had little effect on the film structure and thermal properties. Compared to the garbage bags containing bamboo and lignin powders， the garbage bags containing straw powders presented an increase in strength by over 40 %. This work exhibited an important significance for reducing the production cost of PBAT/PLA garbage bags and promoting the industrial application of biodegradable materials.

Key words: biodegradability, poly（butylene adipic acid?co?terephthalate）, poly（lactic acid）, biomass powder, composite garbage bag

CLC Number:

TQ327.9

YANG Shangshan, SHANG Pengpeng, XU Jing, XIE Jiazhuo, ZHANG Kun, ZHANG Lili. Preparation and characterizations of biodegradable PBAT/PLA/biomass garbage bags[J]. China Plastics, 2022, 36(11): 127-132.

Figures/Tables 6

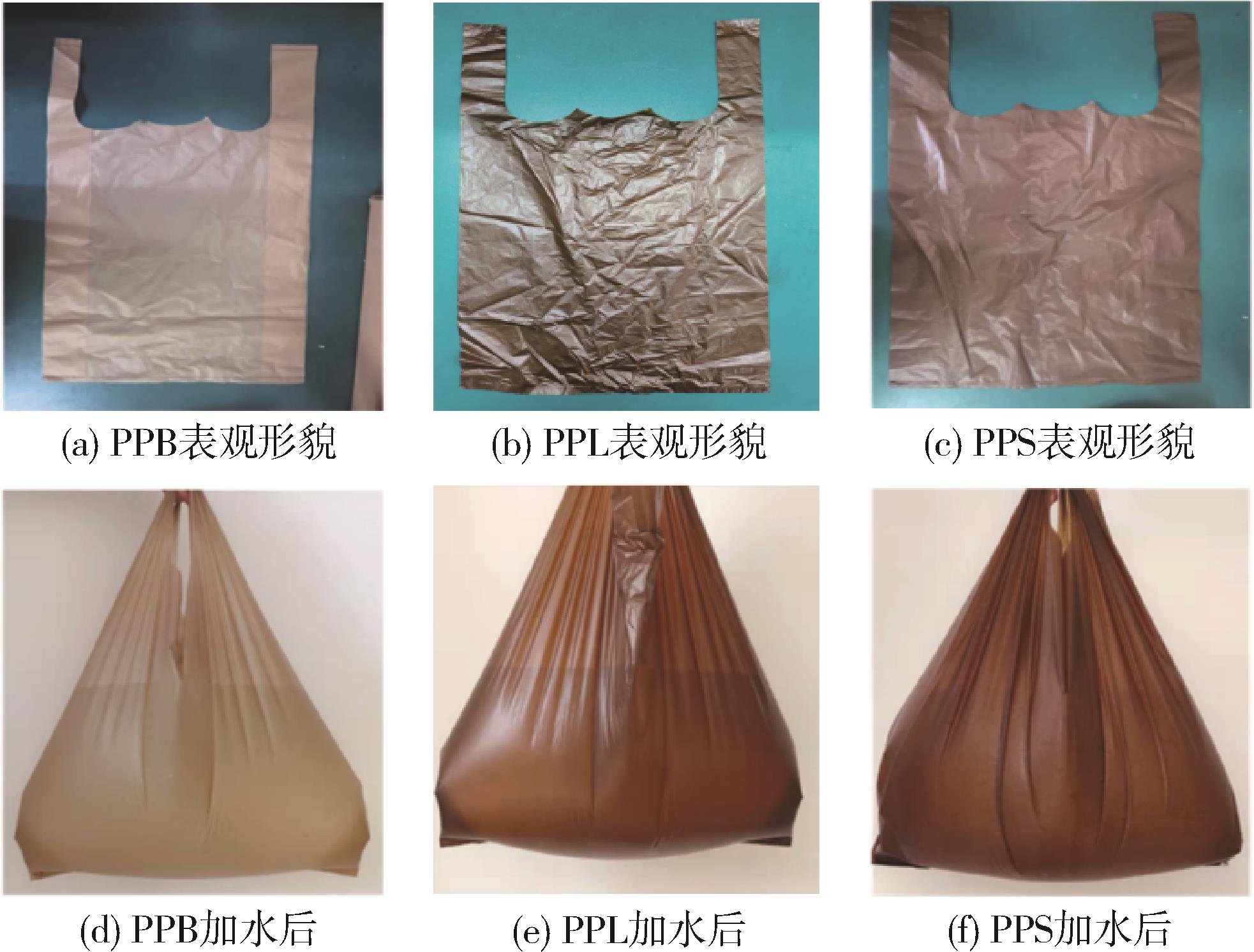

Fig.1. Morphology and leakage resistance of three kinds of composite garbage bags

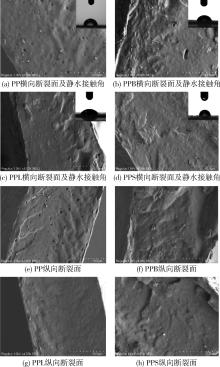

Fig.2. SEM images of the composite films

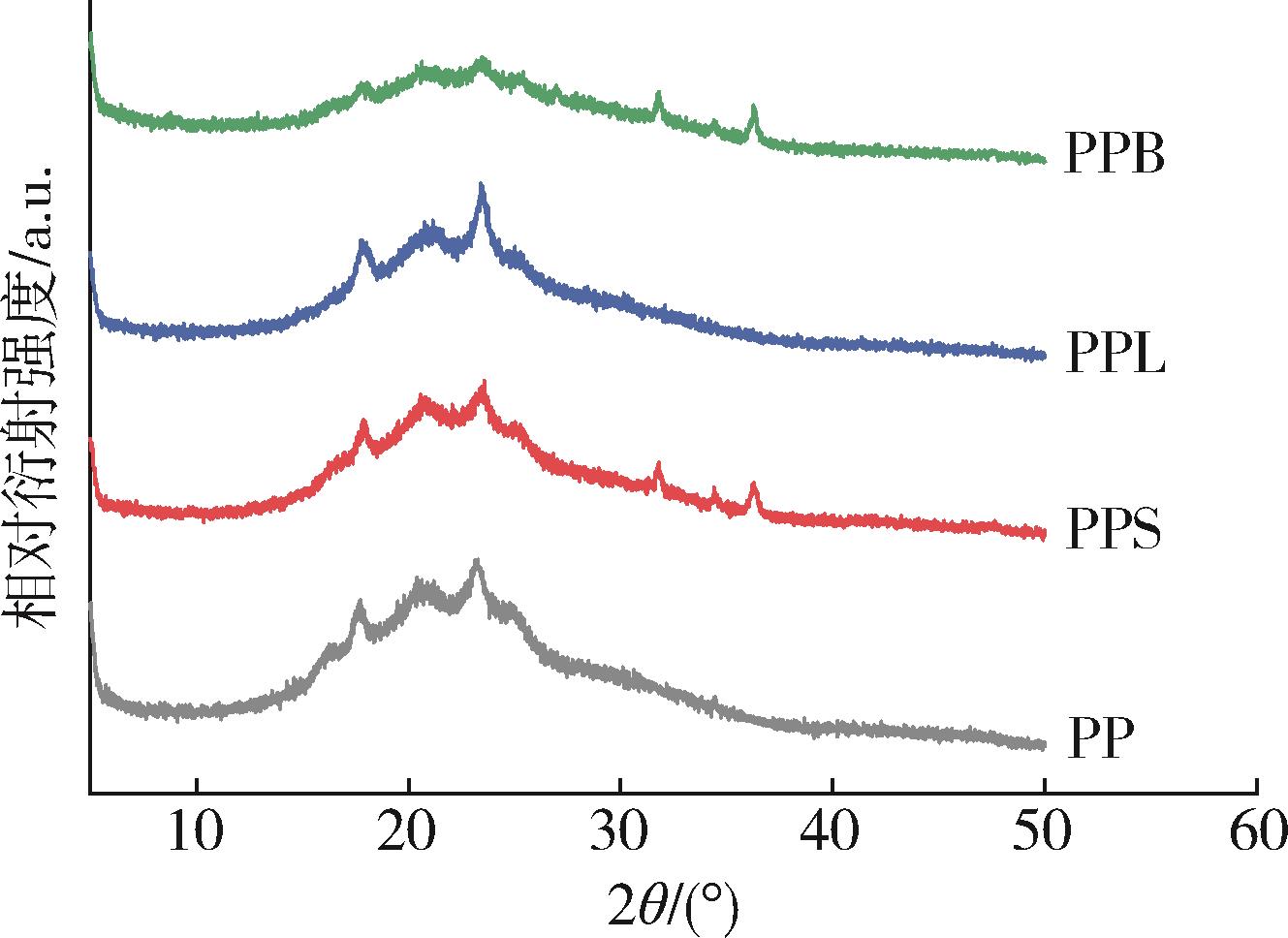

Fig.3. XRD patterns of the composite films

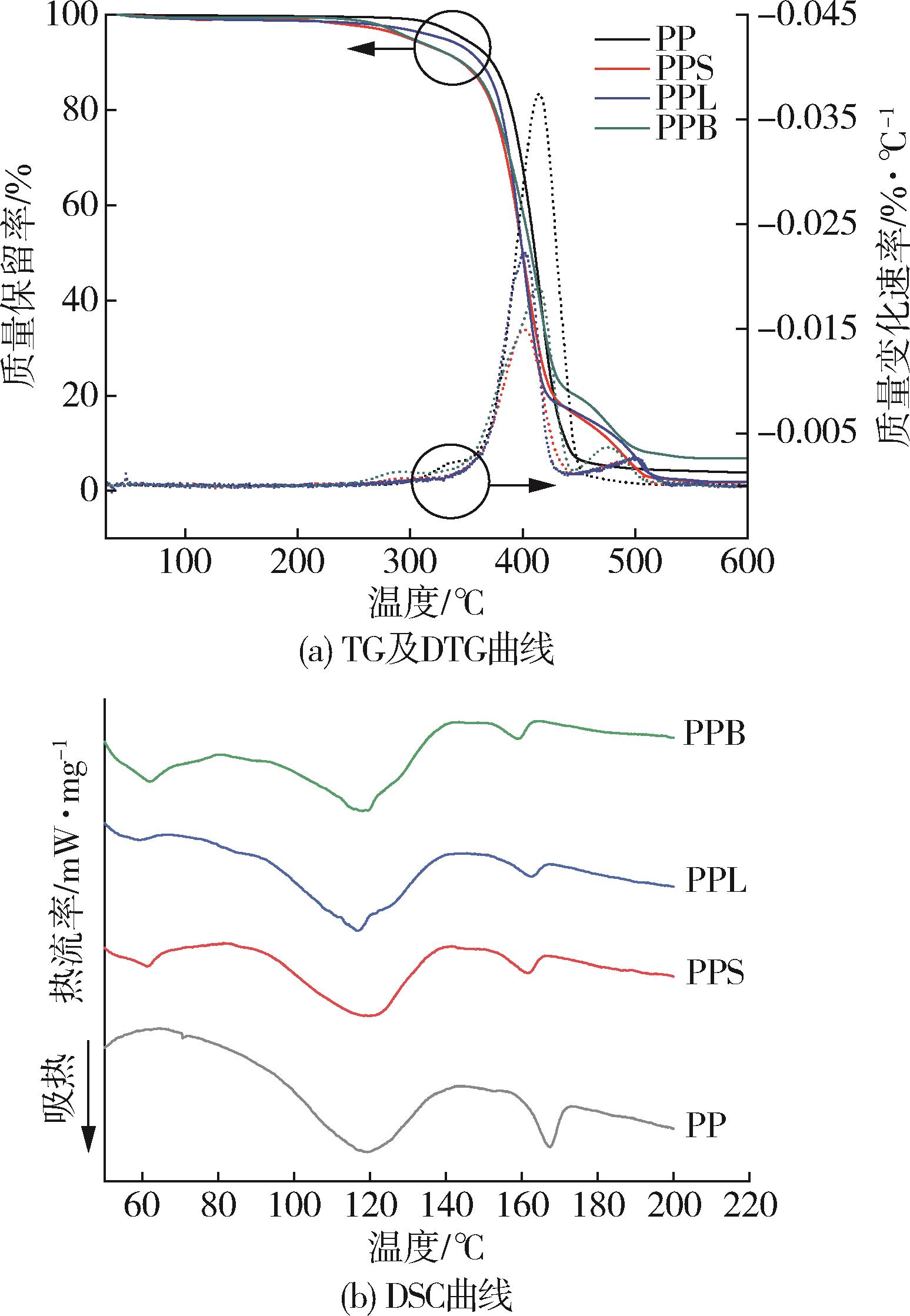

Fig.4. Thermal performance of the composite films

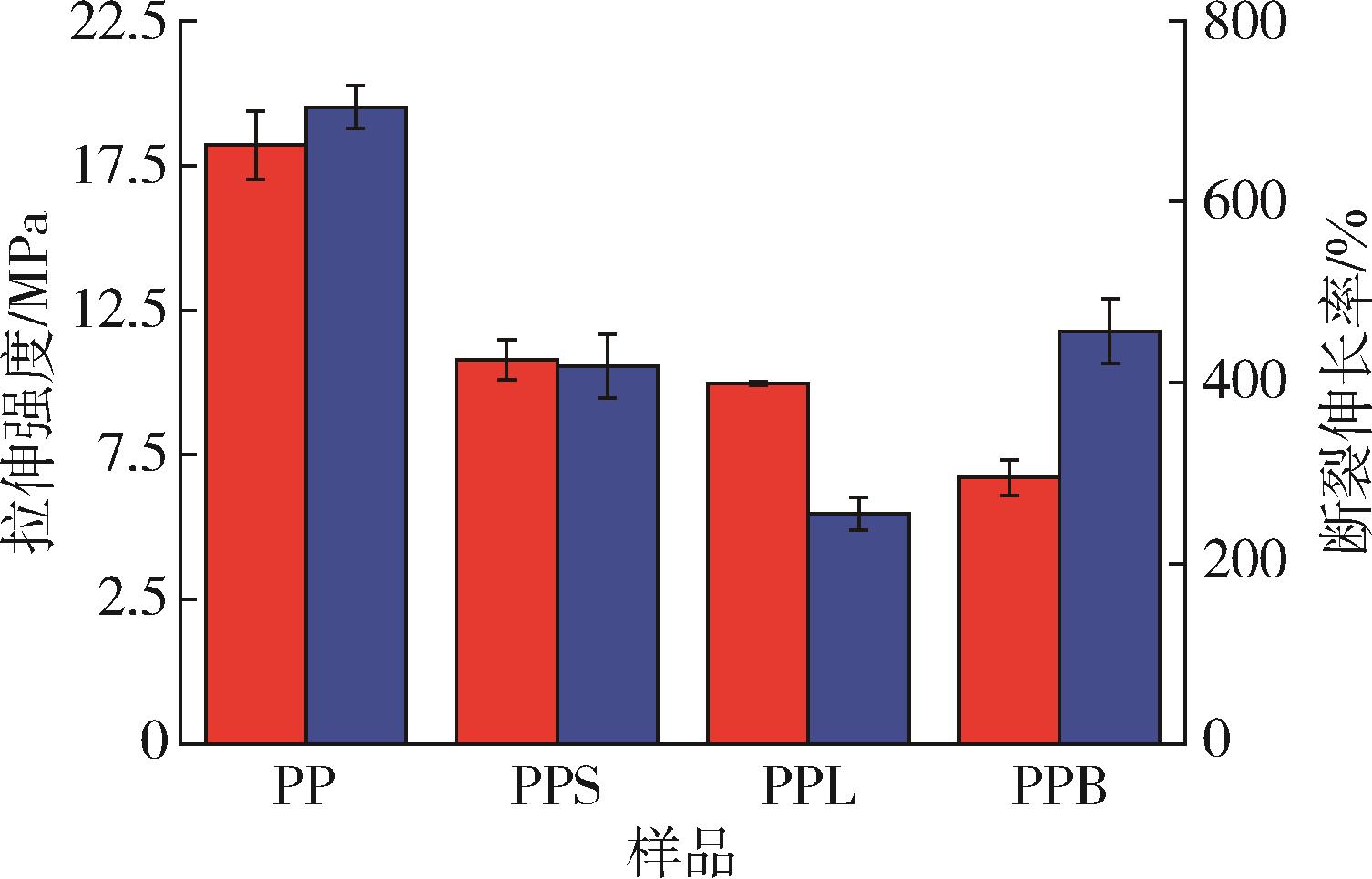

Fig.5. Mechanical properties of the composite films

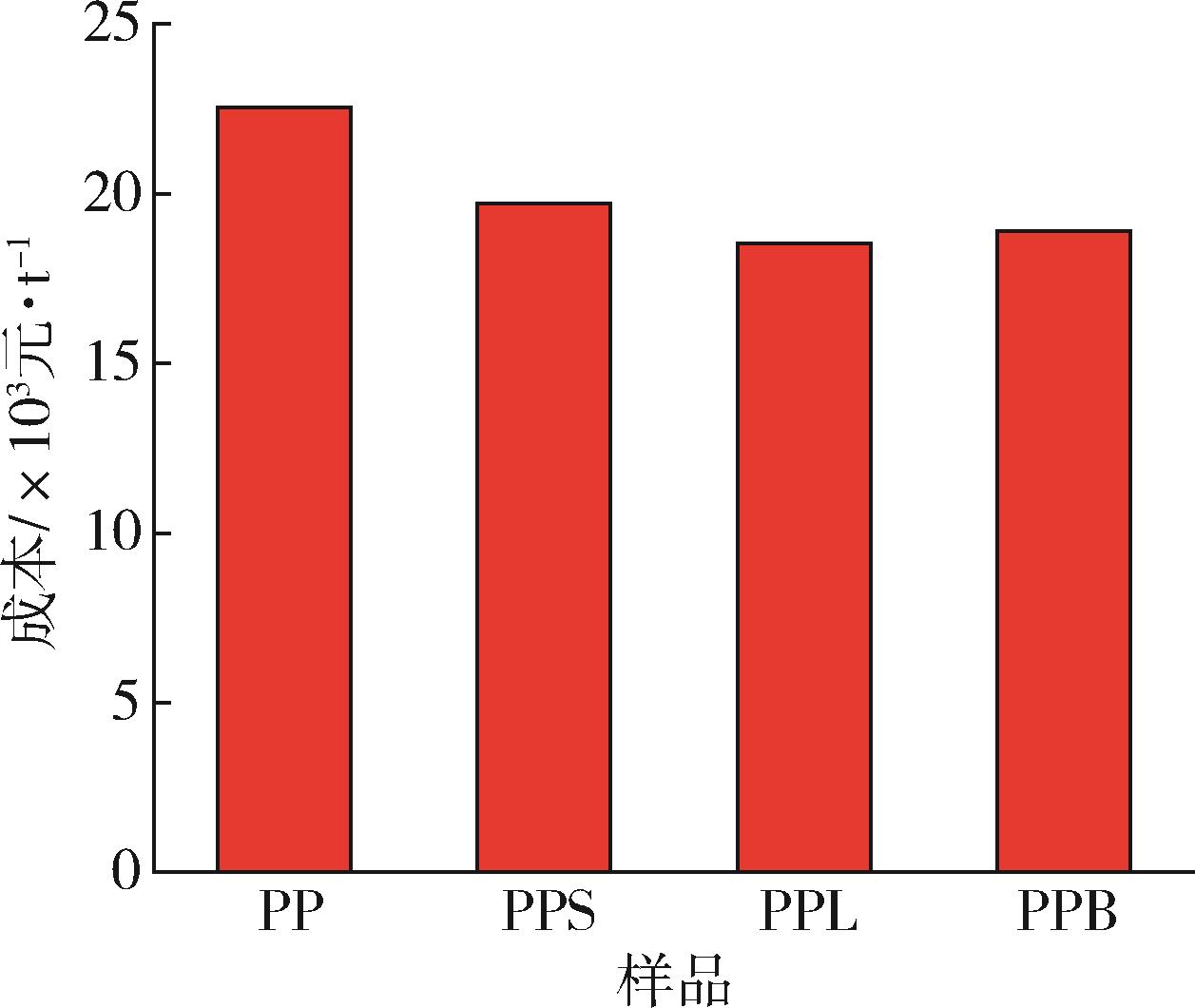

Fig.6. Cost of the composite films

References 24

1	Raffaele Porta. The plastics sunset and the bio⁃plastics sunrise［J］. Coating， 2019，9（8）： 526.
2	周仕凭.无孔不入的塑料污染［J］.环境教育， 2020，8：1.
	ZHOU S P. All⁃pervasive plastic pollution［J］. Environmental Education， 2020，8：1.
3	Fischer V， Elsner N O， Brenke N， et al. Plastic pollution of the Kuril⁃Kamchatka Trench area （NW pacific）［J］. Deep Sea Research Part Ⅱ： Topical Studies in Oceanography， 2015， 111： 399⁃405.
4	Steve Allen， Deonie Allen， Phoenix Vernon R， et al. Atmospheric transport and deposition of microplastics in a remote mountain catchment［J］. Nature Geoscience， 2019， 12（5）： 339⁃344.
5	Rachid Dris， Johnny Gasperi， Cécile Mirande， et al. A first overview of textile fibers， including microplastics， in indoor and outdoor environments［J］. Environmental pollution， 2017， 221： 453⁃458.
6	Ilka Peeken， Sebastian Primpke， Birte Beyer， et al. Arctic sea ice is an important temporal sink and means of transport for microplastic［J］. Nature communications， 2018， 9（1）： 1⁃12.
7	Zhang Kai， Amir Hossein Hamidian， Aleksandra Tubić， et al. Understanding plastic degradation and microplastic formation in the environment： A review［J］. Environmental Pollution， 2021， 274： 116554.
8	Li W C， Tse H F， Fok L. Plastic waste in the marine environment： A review of sources， occurrence and effects［J］. Science of the total environment， 2016， 566： 333⁃349.
9	Eleonora Guzzetti， Antoni Sureda， Silvia Tejada， et al. Microplastic in marine organism： Environmental and toxicological effects［J］. Environmental Toxicology and Pharmacology， 2018， 64： 164⁃171.
10	Lee Jeo. Economic valuation of marine litter and microplastic pollution in the marine environment： An initial assessment of the case of the United Kingdom［J］. Discussion Paper， 2015： 1⁃16.
11	Alistair McIlgorm， Campbell Harry F， Rule Michael J. The economic cost and control of marine debris damage in the Asia⁃Pacific region［J］. Ocean & Coastal Management， 2011， 54（9）： 643⁃651.
12	顾书英，詹辉，任杰.聚乳酸/PBAT共混物的制备及其性能研究［J］.中国塑料， 2006， 20（10）：39⁃42.
	GU S Y， ZHAN H， REN J. Preparation and properties of poly（lactic acid）/PBAT blend ［J］. China Plastics， 2006， 20（10）：39⁃42.
13	王治洲，李晓芳，宋树鑫，等. PCL 对 PBAT 薄膜气体透过率的影响［J］. 塑料科技， 2017， 45（11）： 56⁃61.
	WANG Z Z， LI X F， SONG S X， et al. Effect of policaproactone on gas permeability of poly（butylene terephthalate） films［J］. Plastic Science and Technology， 2017， 45（11）： 56⁃61.
14	张敏，孟庆阳，刁晓倩，等. PLA/PBAT 共混物的降解性能研究［J］. 中国塑料， 2016， 30（8）： 79⁃86.
	ZHANG M， MENG Q Y， DIAO X Q， et al. Biodegradation behavior of PLA/PBAT blends ［J］. China Plastics， 2016， 30（8）： 79⁃86.
15	马丽，丁井鲜，余圣，等. PLA/ABS复合材料的制备与性能研究［J］. 塑料科技， 2022， 50（3）： 9⁃12.
	MA L， DING J X， YU S， et al. Study on preparation and properties of PLA/ABS composites［J］. Plastic Scien⁃ce and Technology， 2022， 50（3）： 9⁃12.
16	孟庆阳，翁云宣. 环氧类增容剂反应增容 PLA/PBAT 共混体系的研究［J］. 中国塑料， 2014， 28（2）： 91⁃95.
	MENG Q Y， WENG Y X. Study on PLA/PBAT blends prepared by reaction compatibilization with epoxy compatibilizers［J］. China Plastics， 2014， 28（2）： 91⁃95.
17	赵正达，刘涛，顾书英. Joncryl增容 PLA/PBAT 共混体系结构及性能研究［J］. 材料导报， 2008， 2： 416⁃418.
	ZHAO Z D， LIU T， GU S Y. Research on the structures and properties of poly（lactic acid）/PBAT composites with compatibilizer joncryl［J］. Materials Review， 2008， 2： 416⁃418.
18	Arianna Pietrosanto， Paola Scarfato， Luciano Di Maio， et al. Development of eco⁃sustainable PBAT⁃based blown films and performance analysis for food packaging applications［J］. Materials， 2020， 13（23）： 5395.
19	黄文杰，杨丽庭，李彦涛，等. 淀粉塑化改性及其填充PBAT/PLA复合材料的性能研究［J］. 塑料工业， 2021， 49（1）： 78⁃86.
	HUANG W J， YANG L T， LI Y T， et al. Study on plasticizing modification of starch and properties of PBAT/PLA composites［J］. Plastics Industry， 2021， 49（1）： 78⁃86.
20	郭浩然，陈蕴智，王娇阳，等. 改性木聚糖PBAT/PLA复合材料包装性能的影响［J］. 中国塑料， 2020， 34（12）： 17.
	GUO H R， CHEN Y Z， WANG J Y， et al. Effect of modified xylan on packaging performance of PBAT/PLA composites［J］. China Plastics， 2020， 34（12）： 17.
21	全国塑料制品标准化技术委员会. 塑料垃圾袋：［S］. 北京：中国标准出版社， 2010.
22	Yi Han， Shi Jinwei， Mao Lixin， et al. Improvement of compatibility and mechanical performances of PLA/PBAT composites with epoxidized soybean oil as compatibilizer［J］. Industrial & Engineering Chemistry Research， 2020， 59（50）： 21 779⁃21 790.
23	Zhou Yikai， Qiu Shuo， Waterhouse Geoffrey I N， et al. Effect of surface property of halloysite on the crystallization behavior of PBAT［J］. Applied Clay Science， 2018， 157： 218⁃226.
24	全国塑料标准化技术委员会方法和产品分会. 塑料拉伸性能的测定第3部分：薄膜和薄片的试验条件：［S］. 北京：中国标准出版社， 2007.
