Plasticizing effect of low molecular weight polyesters synthesized from epoxidized soybean oil for poly（vinyl chloride）

doi:10.19491/j.issn.1001-9278.2023.11.010

Abstract

Abstract:

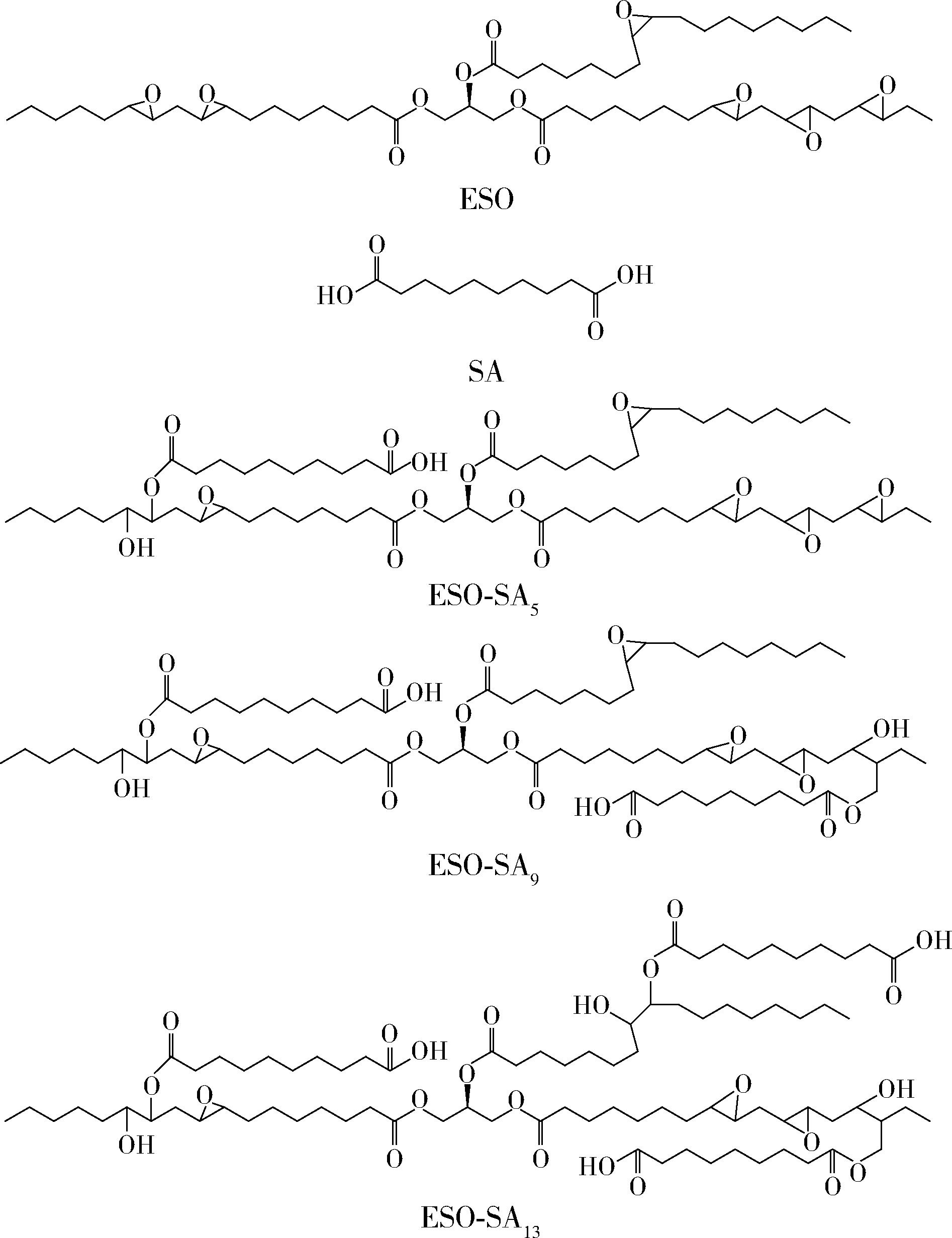

The epoxide functional groups of epoxidized soybean oil （ESO） were cross⁃linked with succinic acid （SA） through a ring opening reaction， and three types of epoxidized soybean oil⁃succinic acid copolymers （ESO⁃SA₅， ESO⁃SA₉ and ESO⁃SA₁₃） with different molecular weights were obtained through regulating the reaction time， and their chemical structures were characterized. The thermal and mechanical properties of poly（vinyl chloride）（PVC） modified by using ESO⁃SA _n as a plasticizer were studied， and the effects of the molecular weight and addition amount of ESO⁃SA _n on the plasticizing effect were investigated. In addition， the effect of molding method （solvent casting film and melt pressing film） on the properties of plasticized PVC film was compared. Finally， the effect of thermal stabilizer on the properties of melt⁃pressing film was investigated. The results indicated that among the plasticized films prepared by different molding methods， the plasticized film containing 30 phr ESO⁃SA₉ exhibited the best performance， including plasticizing effect， mechanical properties （elongation at break of 269.6 % and tensile strength of 28.7 MPa）， and thermal properties （initial thermal degradation temperature of 284.3 °C）. A better mixing effect between the PVC and plasticizer at a molecular level could be achieved. Owing to the poor compatibility between calcium⁃zinc stabilizer and matrix as well as the destruction of the plasticizing network structure formed by ESO⁃SA_n in PVC， the addition of thermal stabilizer resulted in a decrease to some extent in the mechanical and thermal properties of the plasticized films.

Key words: poly（vinyl chloride）, epoxidized soybean oil, bio?based plasticizer, low molecular weight polyester

CLC Number:

TQ314.24

YANG Yang, HAN Yu, WENG Yunxuan, SONG Xinyu, HUANG Zhigang, ZHANG Caili. Plasticizing effect of low molecular weight polyesters synthesized from epoxidized soybean oil for poly（vinyl chloride）[J]. China Plastics, 2023, 37(11): 87-94.

Figures/Tables 13

References 31

1	Bueno⁃Ferrer C， Garrigós M C， Jiménez A. Characterization and thermal stability of poly（vinyl chloride） plasticized with epoxidized soybean oil for food packaging［J］. Polymer Degradation and Stability， 2010，95（11）： 2 207⁃2 212.
2	Choi M S， Rehman S U， Kim H， et al. Migration of epoxidized soybean oil from polyvinyl chloride/polyvinylidene chloride food packaging wraps into food simulants［J］. Environmental Science and Pollution Research， 2018， 25： 5 033⁃5 039.
3	Ali M， Lu Y， Ahmed S， et al. Effect of modified cardanol as secondary plasticizer on thermal and mechanical properties of soft polyvinyl chloride［J］.ACS Omega， 2020，（5）：17 111⁃17 117.
4	Li M， Xia J， Ding H， et al. Optimal design， characterization， and thermal stability of bio⁃based Ca/Na/Zn composite stabilizer derived from myrcene for poly（vinyl chloride）［J］. Polymer Degradation and Stability， 2017，139： 117⁃129.
5	Yao L， Chen Q， Xu W，et al. Preparation of cardanol based epoxy plasticizer by click chemistry and its action on poly（vinyl chloride）［J］. Journal of Applied Polymer Science， 2017，134：44890.
6	Chen J， Liu Z， Li X，et al.Thermal behavior of epoxidized cardanol diethyl phosphate as novel renewable plasticizer for poly（vinyl chloride）［J］. Polymer Degradation and Stability， 2016，126：58⁃64.
7	Kumar S. Recent developments of biobased plasticizers and their effect on mechanical and thermal properties of poly（vinyl chloride）： a review［J］.Industrial & Engineering Chemistry Research， 2019，58：11 659⁃11 672.
8	Thirupathiah G， Satapathy S， Palanisamy Aruna. Studies on epoxidised castor oil as co⁃plasticizer with epoxidised soyabean oil for PVC processing［J］. Journal of Renewable Materials， 2019，7：775⁃785.
9	Chen J， Liu Z， Nie X， et al. Murray， plasticizers derived from cardanol： synthesis and plasticization properties for polyvinyl chloride（PVC）［J］. Journal of Polymer Research， 2018，25：1⁃14.
10	Greco A， Ferrari F， Maffezzoli A. Effect of the epoxidation yield of a cardanol derivative on the plasticization and durability of soft PVC［J］.Polymer Degradation and Stability， 2016，134：220⁃226.
11	Jia P， Zhang M， Hu L， et al. Cardanol groups grafted on poly（vinyl chloride）⁃synthesis， performance and plasticization mechanism［J］.Polymers （Basel）， 2017，9：1⁃12.
12	Wang M， Li S， Ding H， et al. Construction of efficient tung⁃oil⁃based thermal stabilizers bearing imide and epoxy groups for PVC［J］.New Journal of Chemistry， 2020，44：4 538⁃4 546.
13	Chen J， Nie X， Jiang J.Synthesis of a novel bio⁃oil⁃based hyperbranched ester plasticizer and its effects on poly（vinyl chloride） soft films［J］.ACS Omega，2020，5：5 480⁃5 486.
14	Luo X， Chu H， Liu M.Synthesis of bio⁃plasticizer from soybean oil and its application in poly（vinyl chloride） films［J］.Journal of Renewable Materials，2020，8：1 295⁃1 304.
15	Karmalm P， Hjertberg T， Jansson A.Thermal stability of poly（vinyl chloride） with epoxidised soybean oil as primary plasticizer［J］.Polymer Degradation and Stability， 2009，94：2 275⁃2 281.
16	Aydın R S T， Akyol E， Hazer B. Influence of soybean oil blending with polylactic acid （PLA） films： in vitro and in vivo evaluation［J］.Journal of the American Oil Chemists' Society， 2017，94：413⁃424.
17	Liu W， Qiu J， Fei M E，et al. Manufacturing of thermally remoldable blends from epoxidized soybean oil and poly（lactic acid） via dynamic cross⁃linking in a twin⁃screw extruder［J］.Industrial & Engineering Chemistry Research， 2018，57：7 516⁃7 524.
18	Han Y， Shi J， Mao L，et al.Improvement of compatibility and mechanical performances of PLA/PBAT composites with epoxidized soybean oil as compatibilizer［J］.Industrial & Engineering Chemistry Research，2020，59：21 779⁃21 790.
19	Chen J， Li X， Wang Y， et al.Synthesis and application of environmental soybean oil‐based epoxidized glycidyl ester plasticizer for poly（vinyl chloride）［J］.European Journal of Lipid Science and Technology， 2016，119： 1600216.
20	Olivieri G V， De Quadros J V， Giudici R.Epoxidation reaction of soybean oil： experimental study and comprehensive kinetic modeling［J］.Industrial & Engineering Chemistry Research， 2020，59：18 808⁃18 823.
21	Kim S W， Kim J G， Choi J I， et al.Synthesis of glycidylethylhexylphthalate and its effects on poly（vinyl chloride） films as a novel plasticizer［J］.Journal of Applied Polymer Science， 2005，96：1 347⁃1 356.
22	Chen J， Liu Z， Jiang J， et al.A novel biobased plasticizer of epoxidized cardanol glycidyl ether： synthesis and application in soft poly（vinyl chloride） films［J］.RSC Advances， 2015，5：56 171⁃56 180.
23	Sun B， Chaudhary B I， Shen C Y， et al.Thermal stability of epoxidized soybean oil and its absorption and migration in poly（vinylchloride）［J］.Polymer Engineering & Science， 2013，53：1 645⁃1 656.
24	Hammarling L， Gustavsson H， Svensson K， et al.Migration of epoxidized soya bean oil from plasticized PVC gaskets into baby food［J］.Food Additives and Contaminants， 1998，15：203⁃208.
25	Ray D， Roy P， Sengupta S，et al.A study of dynamic mechanical and thermal behavior of starch/poly（vinylalcohol） based films［J］.Journal of Polymers and the Environment， 2009，17：49⁃55.
26	Bocqué M， Voirin C， Lapinte V， et al.Petro⁃based and bio⁃based plasticizers： chemical structures to plasticizing properties［J］.Journal of Polymer Science Part A： Polymer Chemistry， 2016，54：11⁃33.
27	Feng Y， Chu Z， Man L， et al.Fishbone⁃like polymer from green cationic polymerization of methyl eleostearate as biobased nontoxic PVC plasticizer［J］.ACS Sustainable Chemistry & Engineering， 2019，7：18 976⁃18 984.
28	Satapathy S， Palanisamy A.Mechanical and barrier properties of polyvinyl chloride plasticized with dioctyl phthalate， epoxidized soybean oil， and epoxidized cardanol［J］.Journal of Vinyl and Additive Technology， 2021，27：599⁃611.
29	Feng G， Ma Y， Zhang M， et al.Synthesis of bio⁃base plasticizer using waste cooking oil and its performance testing in soft poly（vinyl chloride） films［J］.Journal of Bioresources and Bioproducts， 2019，4：99⁃110.
30	Tan J， Liu B， Fu Q， et al.Role of the oxethyl unit in the structure of vegetable oil⁃based plasticizer for PVC： an efficient strategy to enhance compatibility and plasticization［J］. Polymers （Basel）， 2019，11：779.
31	Lim K， Ching Y， Gan S.Effect of palm oil bio⁃based plasticizer on the morphological， thermal and mechanical properties of poly（vinyl chloride）［J］.Polymers，2015，7：2 031⁃2 043.

成型方式	样品	PVC	ESO⁃SA₅	ESO⁃SA₉	ESO⁃SA₁₃	ESO	DOP	Ca⁃Zn 稳定剂
溶剂流延膜	PVC	100	—	—	—	—	—	—
	PVC/10ESO⁃SA₅	100	10	—	—	—	—	—
	PVC/20ESO⁃SA₅	100	20	—	—	—	—	—
	PVC/30ESO⁃SA₅	100	30	—	—	—	—	—
	PVC/10ESO⁃SA₉	100	—	10	—	—	—	—
	PVC/20ESO⁃SA₉	100	—	20	—	—	—	—
	PVC/30ESO⁃SA₉	100	—	30	—	—	—	—
	PVC/10ESO⁃SA₁₃	100	—	—	10	—	—	—
	PVC/20ESO⁃SA₁₃	100	—	—	20	—	—	—
	PVC/30ESO⁃SA₁₃	100	—	—	30	—	—	—
熔融压制膜	PVC/10DOP	100	—	—	—	—	10	—
	PVC/20DOP	100	—	—	—	—	20	—
	PVC/30DOP	100	—	—	—	—	30	—
	PVC/20ESO⁃SA₉	100	—	20	—	—	—	—
	PVC/30ESO⁃SA₉	100	—	30	—	—	—	—
	PVC/20ESO⁃SA₁₃	100	—	—	20	—	—	—
	PVC/30ESO⁃SA₁₃	100	—	—	30	—	—	—
	PVC/20ESO	100	—	—	—	20	—	—
	PVC/30ESO	100	—	—	—	30	—	—
	PVC/20ESO⁃SA₉⁃s	100	—	20	—	—	—	4
	PVC/30ESO⁃SA₉⁃s	100	—	30	—	—	—	4
	PVC/20ESO⁃SA₁₃⁃s	100	—	—	20	—	—	4
	PVC/30ESO⁃SA₁₃⁃s	100	—	—	30	—	—	4

成型方式	样品	PVC	ESO⁃SA₅	ESO⁃SA₉	ESO⁃SA₁₃	ESO	DOP	Ca⁃Zn 稳定剂
溶剂流延膜	PVC	100	—	—	—	—	—	—
	PVC/10ESO⁃SA₅	100	10	—	—	—	—	—
	PVC/20ESO⁃SA₅	100	20	—	—	—	—	—
	PVC/30ESO⁃SA₅	100	30	—	—	—	—	—
	PVC/10ESO⁃SA₉	100	—	10	—	—	—	—
	PVC/20ESO⁃SA₉	100	—	20	—	—	—	—
	PVC/30ESO⁃SA₉	100	—	30	—	—	—	—
	PVC/10ESO⁃SA₁₃	100	—	—	10	—	—	—
	PVC/20ESO⁃SA₁₃	100	—	—	20	—	—	—
	PVC/30ESO⁃SA₁₃	100	—	—	30	—	—	—
熔融压制膜	PVC/10DOP	100	—	—	—	—	10	—
	PVC/20DOP	100	—	—	—	—	20	—
	PVC/30DOP	100	—	—	—	—	30	—
	PVC/20ESO⁃SA₉	100	—	20	—	—	—	—
	PVC/30ESO⁃SA₉	100	—	30	—	—	—	—
	PVC/20ESO⁃SA₁₃	100	—	—	20	—	—	—
	PVC/30ESO⁃SA₁₃	100	—	—	30	—	—	—
	PVC/20ESO	100	—	—	—	20	—	—
	PVC/30ESO	100	—	—	—	30	—	—
	PVC/20ESO⁃SA₉⁃s	100	—	20	—	—	—	4
	PVC/30ESO⁃SA₉⁃s	100	—	30	—	—	—	4
	PVC/20ESO⁃SA₁₃⁃s	100	—	—	20	—	—	4
	PVC/30ESO⁃SA₁₃⁃s	100	—	—	30	—	—	4

样品	数均分子量/g·mol^-1	重均分子量/g·mol^-1
SA	202	—
ESO	951	—
ESO⁃SA₅	1 492	1 853
ESO⁃SA₉	1 693	2 009
ESO⁃SA₁₃	1 923	2 162

样品	数均分子量/g·mol^-1	重均分子量/g·mol^-1
SA	202	—
ESO	951	—
ESO⁃SA₅	1 492	1 853
ESO⁃SA₉	1 693	2 009
ESO⁃SA₁₃	1 923	2 162

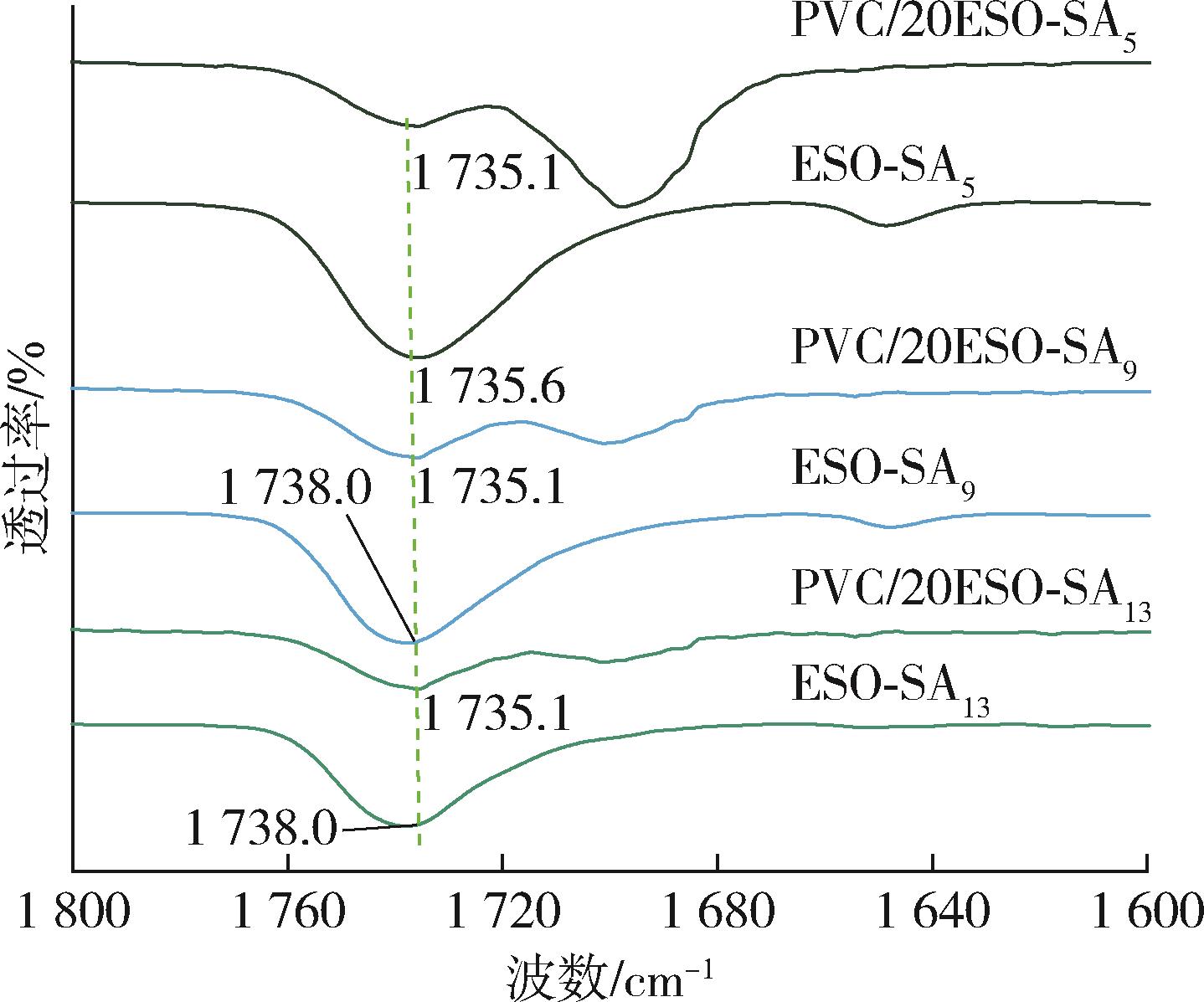

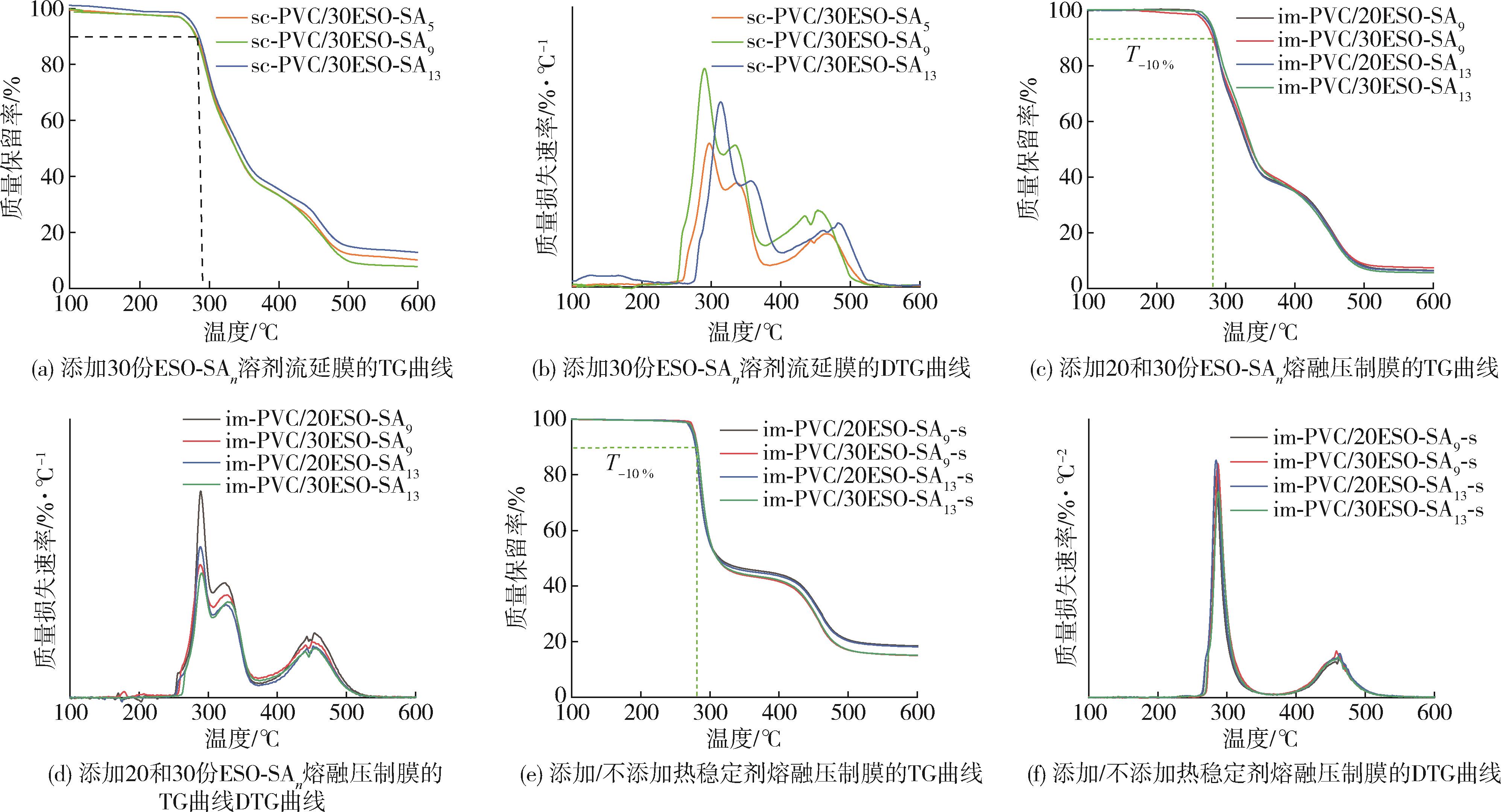

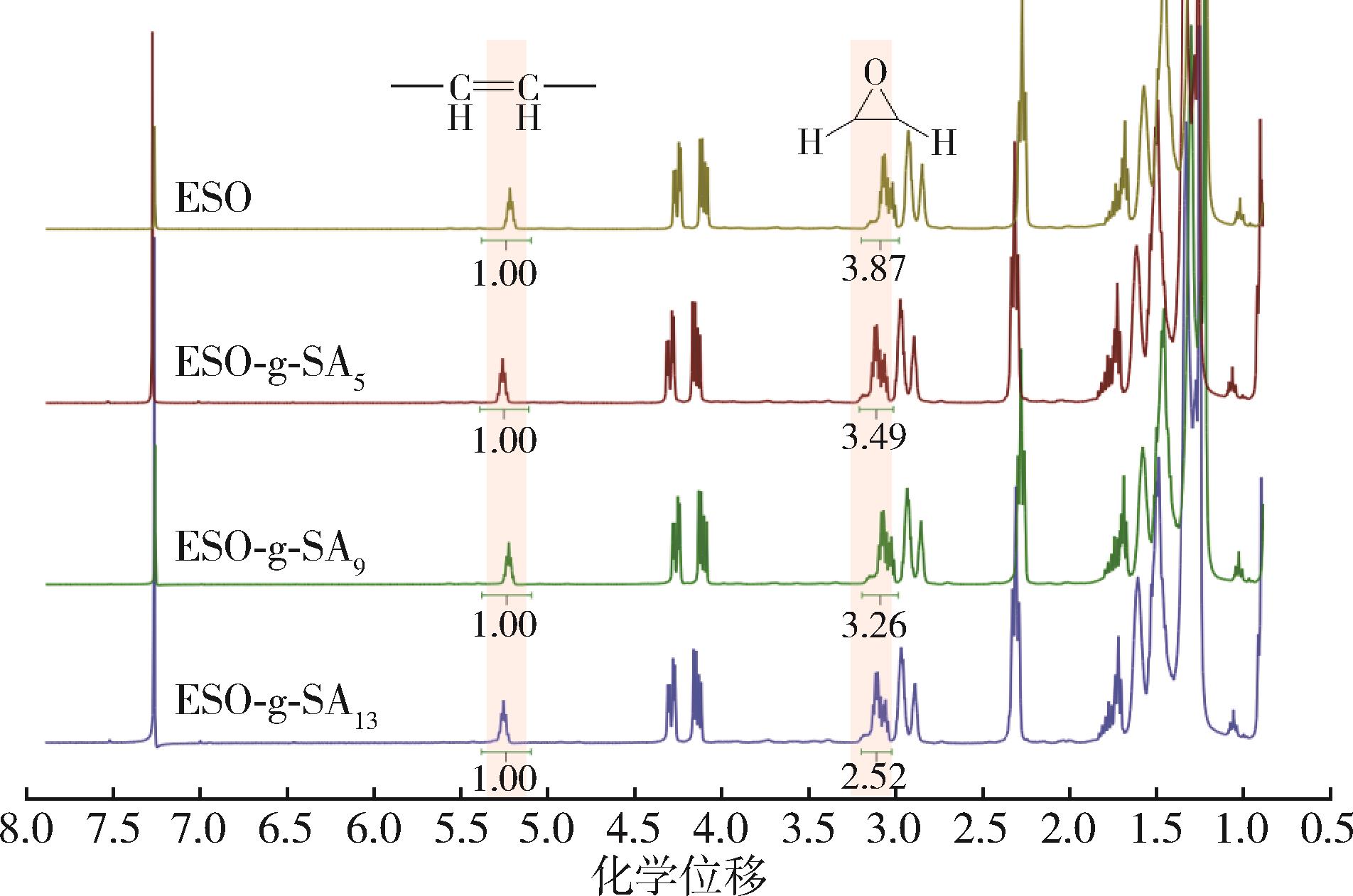

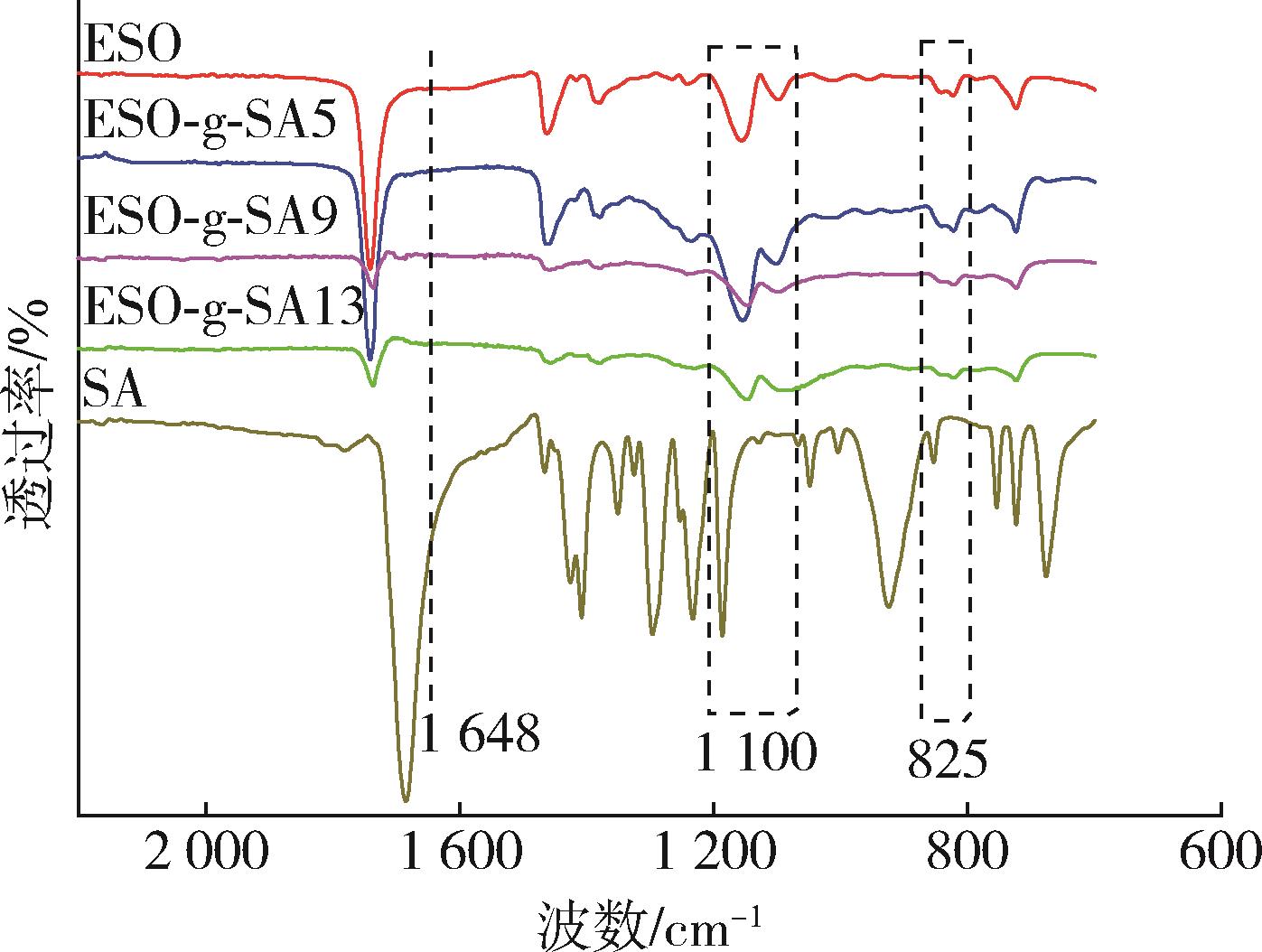

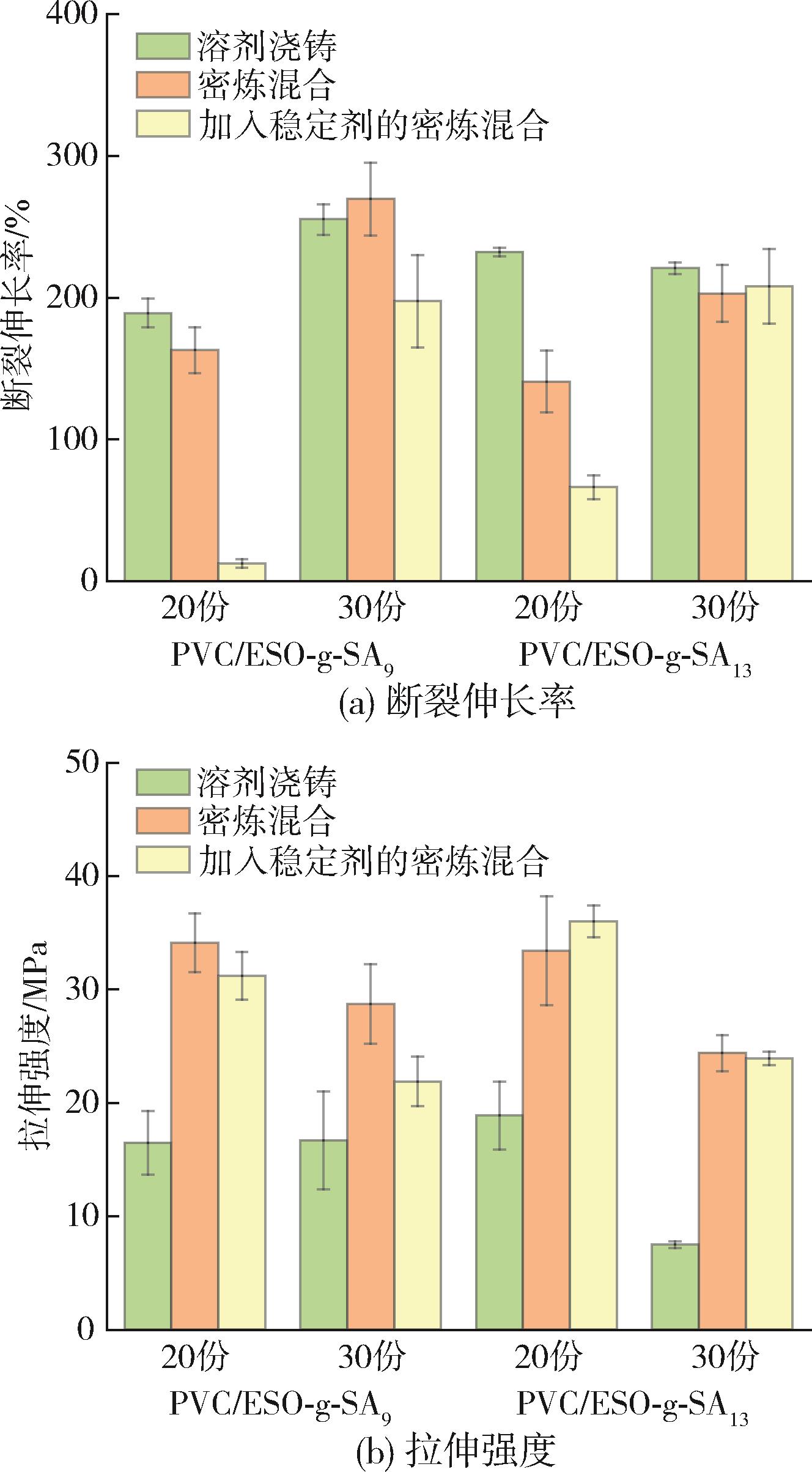

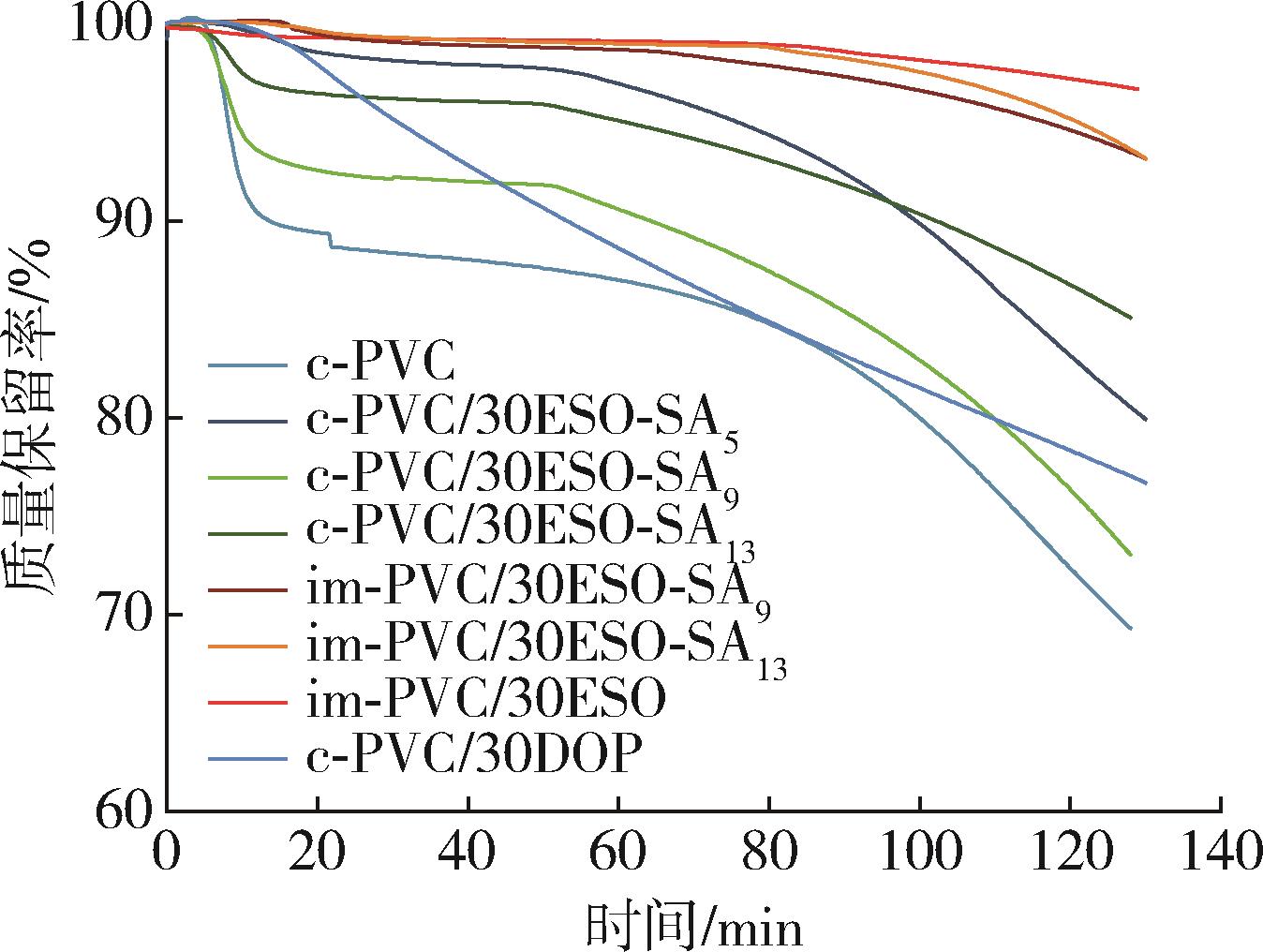

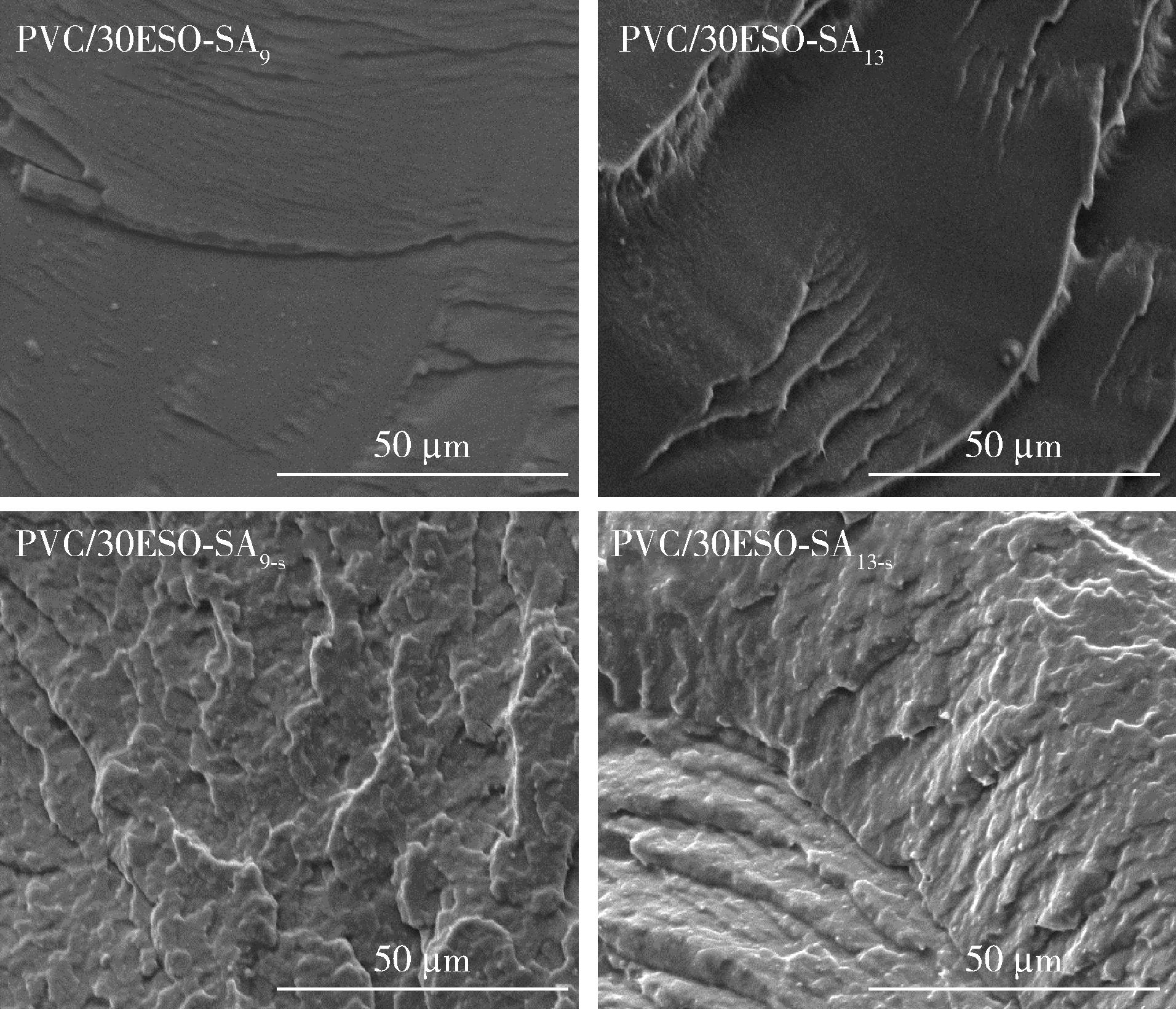

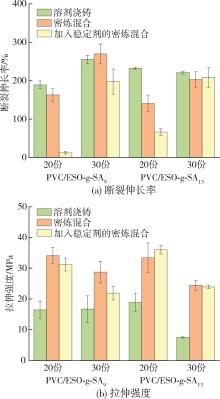

成型方式	样品	断裂伸长率/%			拉伸强度/MPa
成型方式	样品	10份增塑剂	20份增塑剂	30份增塑剂	10份增塑剂	20份增塑剂	30份增塑剂
溶剂流延膜	PVC/DOP	123.4±27.7	144.0±12.4	195.6±27.5	16.9±0.8	13.8±1.3	16.2±2.4
	PVC/ESO⁃SA₅	0.3±0.1	41. 6±16.1	33.3±2.7	21.9±2.4	24.3±0.7	9.4±0.6
	PVC/ESO⁃SA₉	109.7±17.5	189.0±10.0	255.1±10.7	18.8±1.1	16.5±2.8	16.7±4.3
	PVC/ESO⁃SA₁₃	2.6±0.3	232.2±3.1	220.9±4.1	19.7±0.1	18.9±3.0	7.5±0.3
熔融压制膜	PVC/ESO⁃SA₉	—	162.9±16.2	269.6±25.7	—	34.1±2.6	28.7±3.5
	PVC/ESO⁃SA₁₃	—	140.8±21.9	202.9±20.0	—	33.4±4.8	24.4±1.6
	PVC/ESO⁃SA₉⁃s	—	12.3±3.0	197.4±32.5	—	31.2±2.1	21.9±2.2
	PVC/ESO⁃SA₁₃⁃s	—	66.3±8.4	207.9±26.5	—	36.0±1.4	23.9±0.6
	PVC/ESO	—	199.2±47.0	203.2±13.9	—	36.8±2.1	23.4±3.0
