中国塑料 ›› 2025, Vol. 39 ›› Issue (4): 25-30.DOI: 10.19491/j.issn.1001-9278.2025.04.005

• 材料与性能 • 上一篇    下一篇

PET/ZnO纳米复合材料的制备及结晶性能

郭又晟, 陈延明(), 王海玥, 张文帅

  1. 沈阳工业大学石油化工学院,辽宁 辽阳 111003
  • 收稿日期:2024-06-01 出版日期:2025-04-26 发布日期:2025-04-23
  • 通讯作者: 陈延明(1996-),男,教授,主要从事有机高分子/无机纳米杂化功能材料研究,yanmchen@163.com
    E-mail:yanmchen@163.com

Study on preparation and crystalline properties of PET/ZnO nanocomposites

GUO Yousheng, CHEN Yanming(), WANG Haiyue, ZHANG Wenshuai

  1. School of Petrochemical Engineering,Shenyang University of Technology,Liaoyang 111003,China
  • Received:2024-06-01 Online:2025-04-26 Published:2025-04-23
  • Contact: CHEN Yanming E-mail:yanmchen@163.com

摘要:

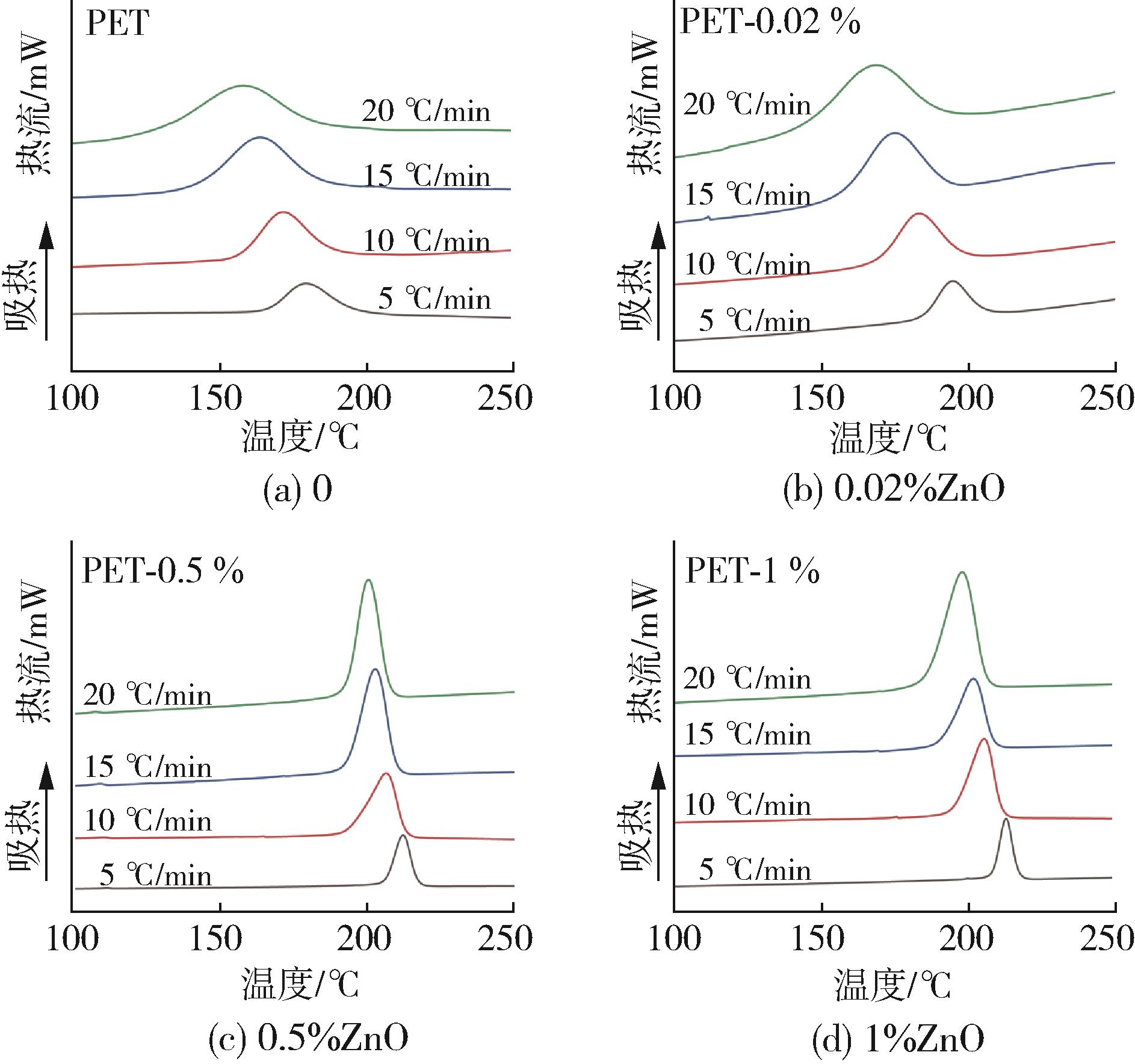

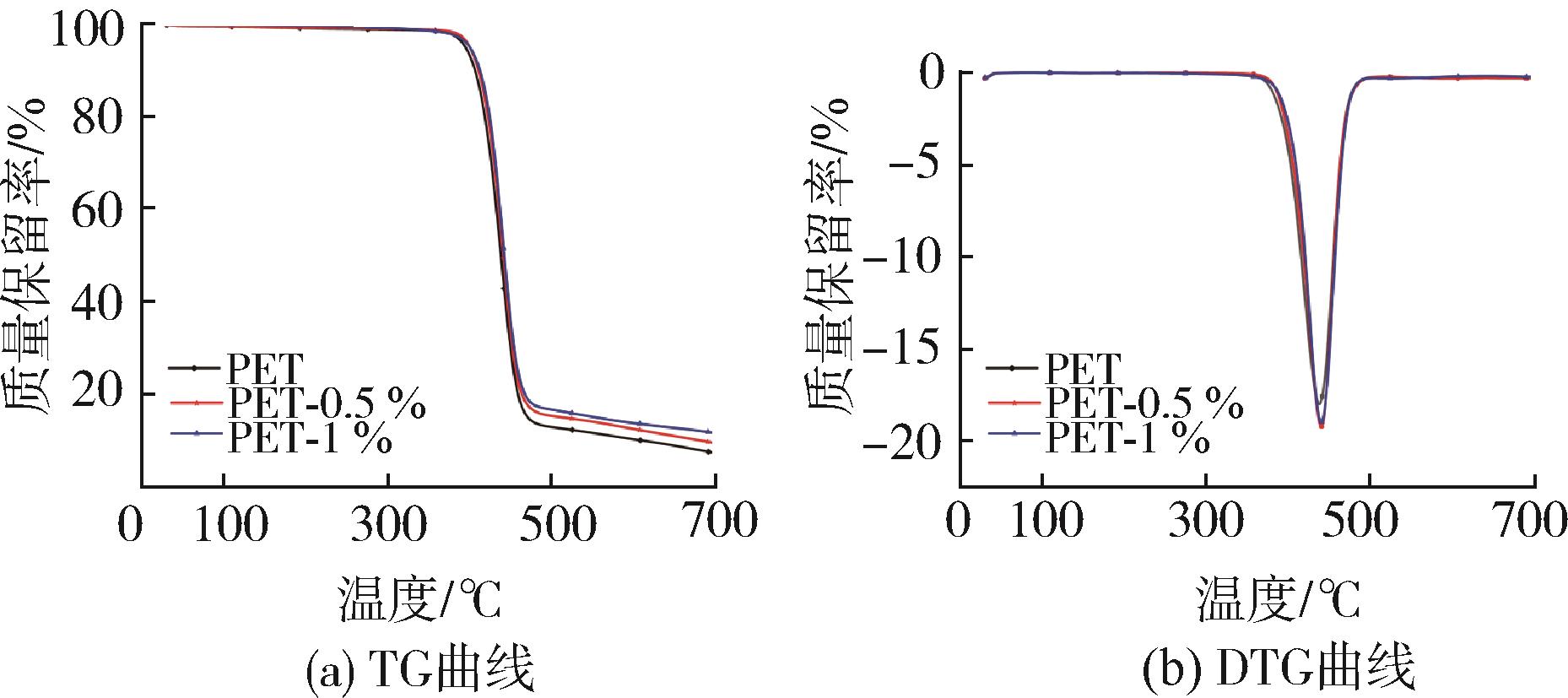

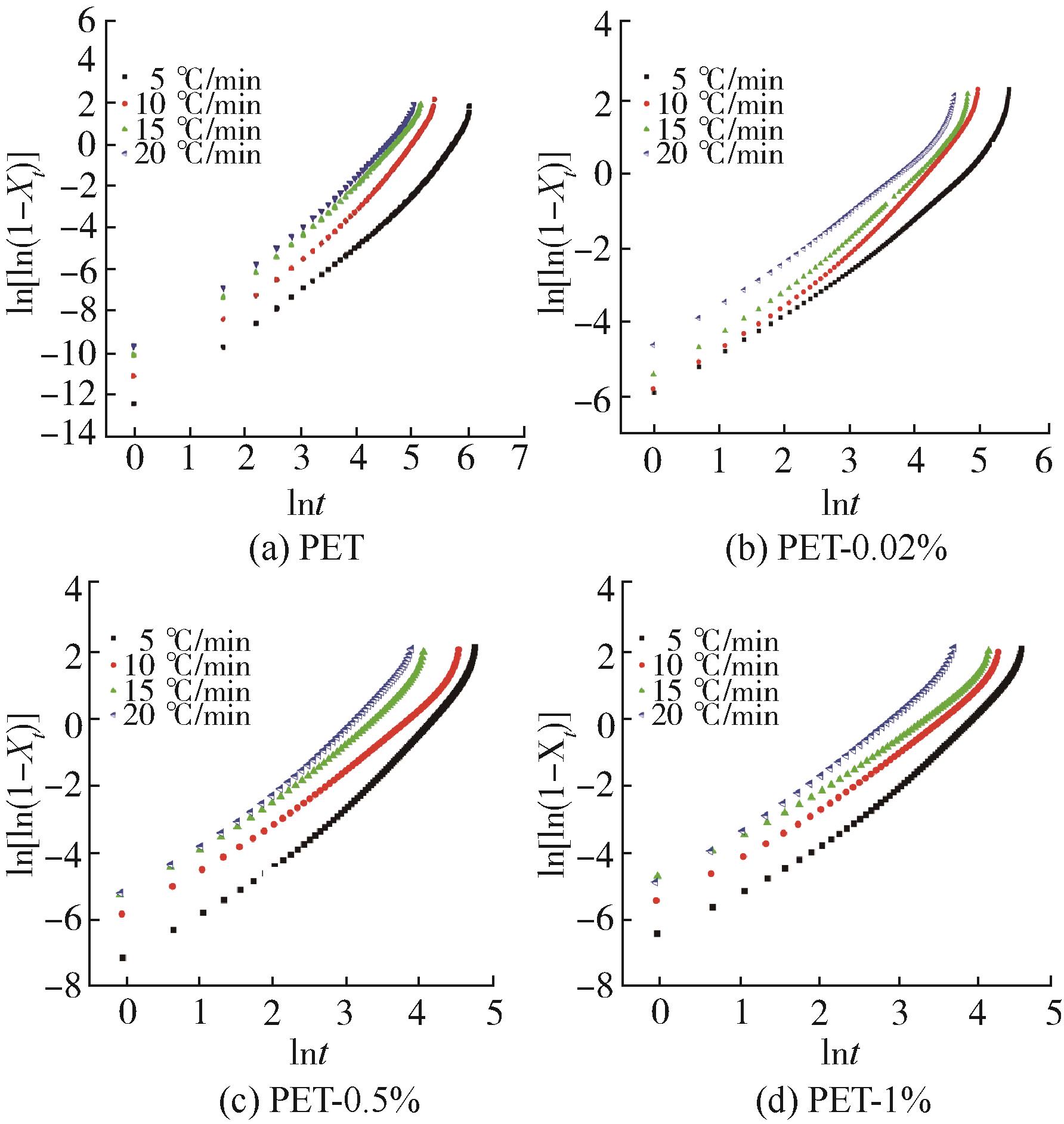

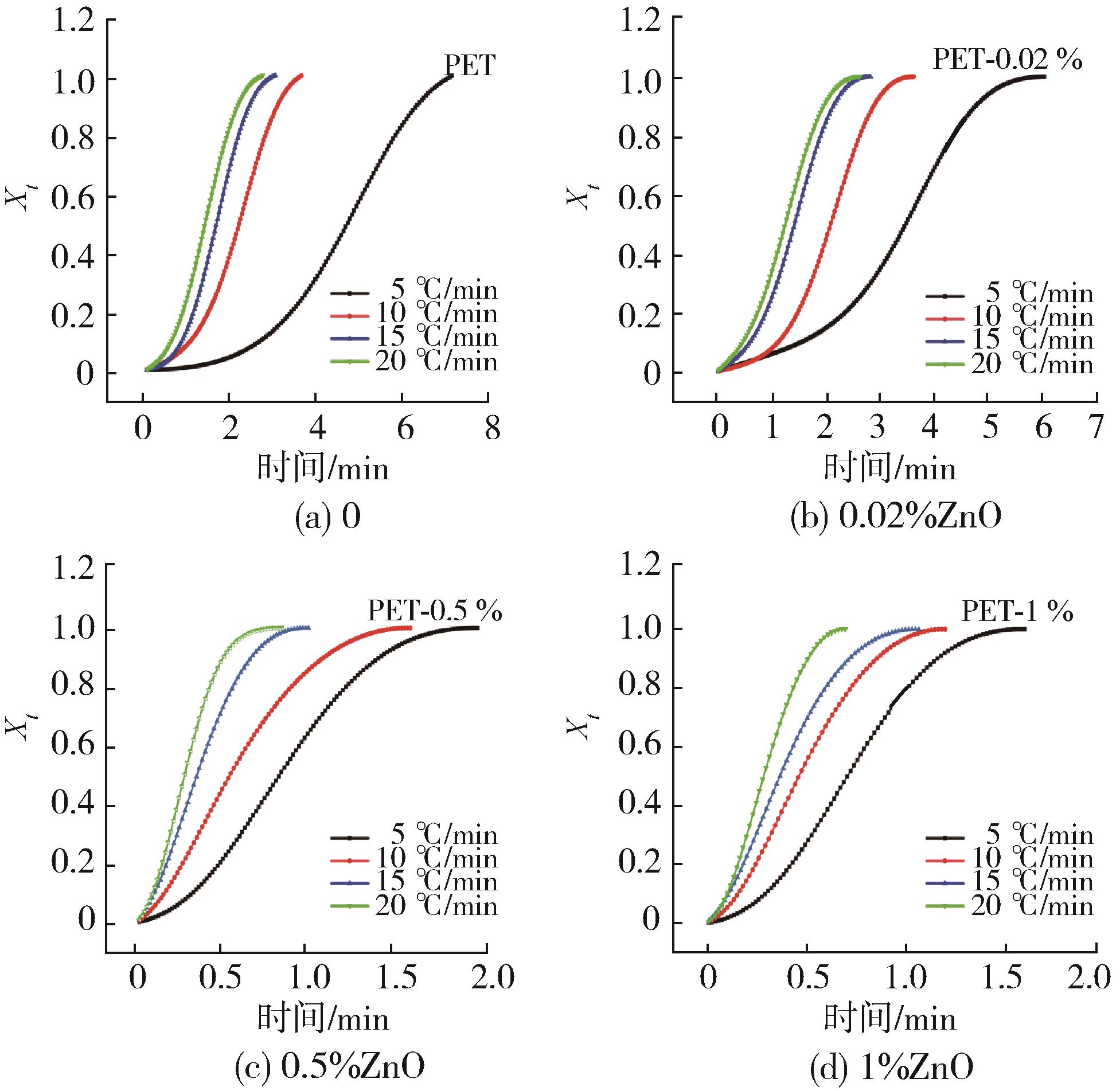

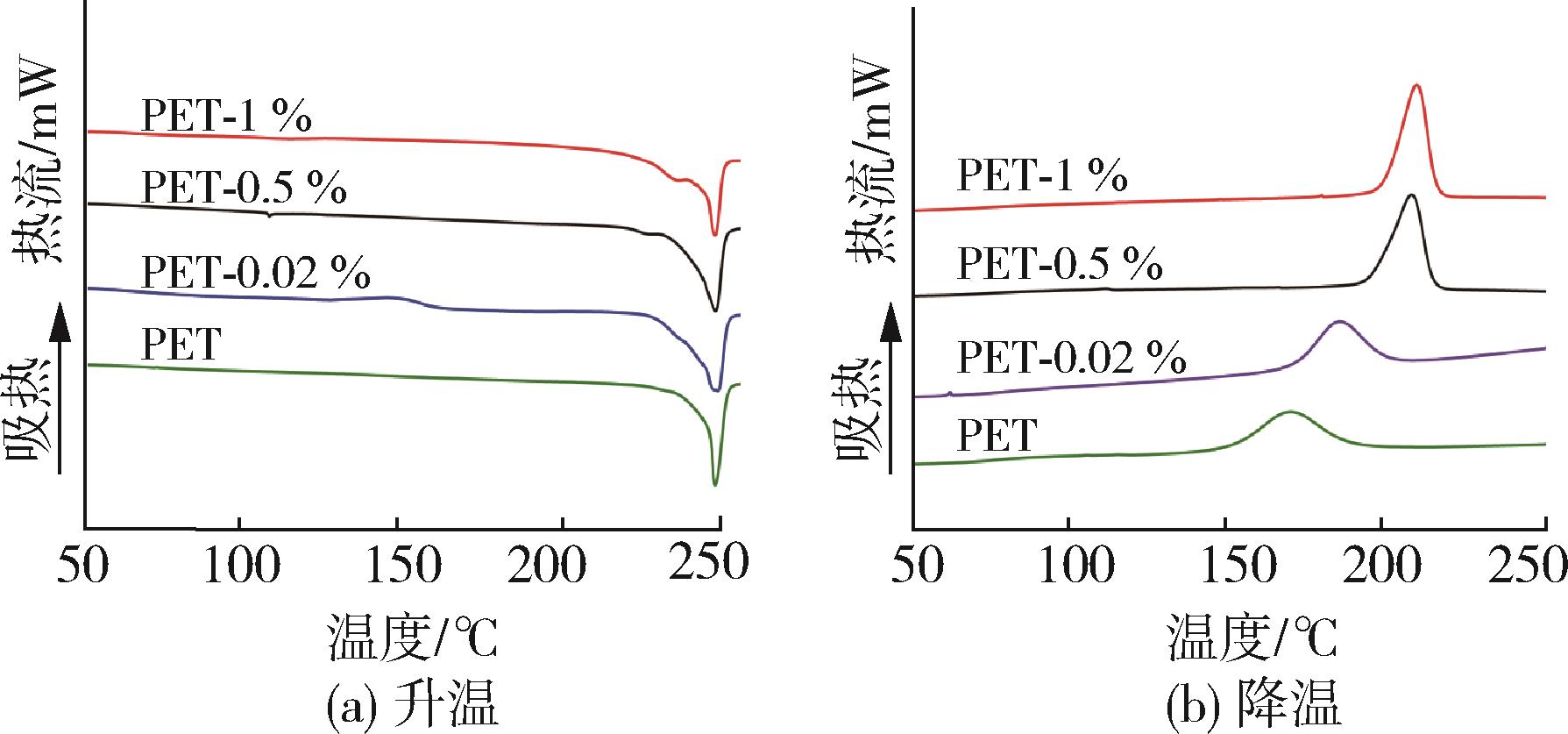

以聚对苯二甲酸乙二酯(PET)和经油酸钠表面修饰的纳米ZnO(4.73 nm)为原料,采用熔融共混工艺路线,通过改变纳米ZnO的添加量(0、0.02 %,0.5 %,1 %)制备了PET/ZnO纳米复合材料。测试了不同降温速率(φ)下样品的差示扫描量热仪(DSC)曲线,结果表明,随着降温速率的增大,PET/ZnO纳米复合材料的结晶温度(Tc)向低温方向移动,结晶峰形逐渐变宽,半结晶时间(t1/2)减小; 在相同降温速率下,结晶能力以及结晶速率相比于纯PET得到了提高,并且随着纳米ZnO添加量的增大,复合材料的结晶能力和结晶速率也逐渐增大。通过Jeziorny法对样品的非等温结晶动力学进行研究,表明加入纳米ZnO对PET晶体原有生长方式产生了一定的影响,并且结晶速率常数(Zc)随纳米ZnO添加量的增大而增大,但当添加量为1 %时,Zc不再变化。热失重(TG)和热台偏光显微镜(PLM)的测试结果表明,纳米ZnO的加入对PET结晶可以起到有效成核剂的作用,且对PET的热稳定性影响不大。

关键词: 聚对苯二甲酸乙二酯, 纳米氧化锌, 复合材料, 结晶速率, 非等温结晶动力学

Abstract:

PET/ZnO nanocomposites were prepared through melt blending using polyethylene terephthalate (PET) and sodium oleate⁃modified nano⁃ZnO (4.73 nm) as raw materials for at nano⁃ZnO contents of 0, 0.02, 0.5, and 1.0 wt%. Differential scanning calorimetry was carried out to investigate the effect of cooling rate on the crystallization behavior of the nanocomposites. The results indicated that the crystallization temperature of PET/ZnO nanocomposites shifted to a low temperature, followed by a gradual increase in the width of crystallization peak, and their half crystallization time also tended to decrease with an increase in the cooling rate. In contrast pure PET, the crystallization ability and crystallization rate of the nanocomposites were improved at the same cooling rate with an increase in the nano⁃ZnO content. The non⁃isothermal crystallization kinetics was studied by the Jeziorny's method. The results indicated that the range of n value varied, indicating that the addition of nano⁃ZnO generated a certain effect on the original growing mode of PET. The crystallization rate constant (Zc) increased with an increase in the nano⁃ZnO content. However, the Zc value of the nanocomposites almost did not change at a nano⁃ZnO content of 1.0 wt%. The thermal stability and crystalline morphology of the nanocomposites were further analyzed by thermogravimetric analysis and hot⁃plate polarizing microscope. The results demonstrated that the incorporated nano⁃ZnO could act as a nucleating agent for the crystallization of PET, but it had little effect on the thermal stability of PET.

Key words: polyethylene terephthalate, nano-ZnO, nanocomposite, crystallization rate, non?isothermal crystallization kinetics
