Preparation and Properties of PET/PAAS/Activated Carbon Composites with Low VOC Content

doi:10.19491/j.issn.1001-9278.2020.06.013

Abstract

Abstract:

In this study, the PET/PAAS/activated carbon composites were prepared by a mechanical blending method, and their thermal properties, crystal structure and VOC content were investigated by means of differential scanning calorimetry, X?ray diffraction and high?performance liquid chromatography. The results indicated that the addition of activated carbon improved the crystallinity of the composites but reduced their VOC content. The melting point of the composites was found to increase at first and then tend to decrease with an increase of activated carbon content. The composites achieved the maximum melting point and breaking strength at the activated carbon contents of 0.75 and 0.25 wt%, respectively. When 1.25 wt% of activated carbon was incorporated, the composites exhibited a formaldehyde removal rate of 97.54 %, a acetaldehyde removal rate of 92.1 %, and a acetone removal rate of 80.2 %.

Key words: poly(ethylene terephthalate), volatile organic compound, activated carbon, composite

CLC Number:

TQ323.4⁺1

Xiang YU, Ruyang LI, Jingwen ZHAI, Huanhuan TAN. Preparation and Properties of PET/PAAS/Activated Carbon Composites with Low VOC Content[J]. China Plastics, 2020, 34(6): 80-86.

Figures/Tables 14

编号	PET含量/份	PAAS含量/份	活性炭含量*/份
1^#	100	0	0
2^#	97	3	0
3^#	97	3	0.25
4^#	97	3	0.50
5^#	97	3	0.75
6^#	97	3	1.00
7^#	97	3	1.25

Tab.1. Mass ratio of PET/PAAS/activated carbon composites

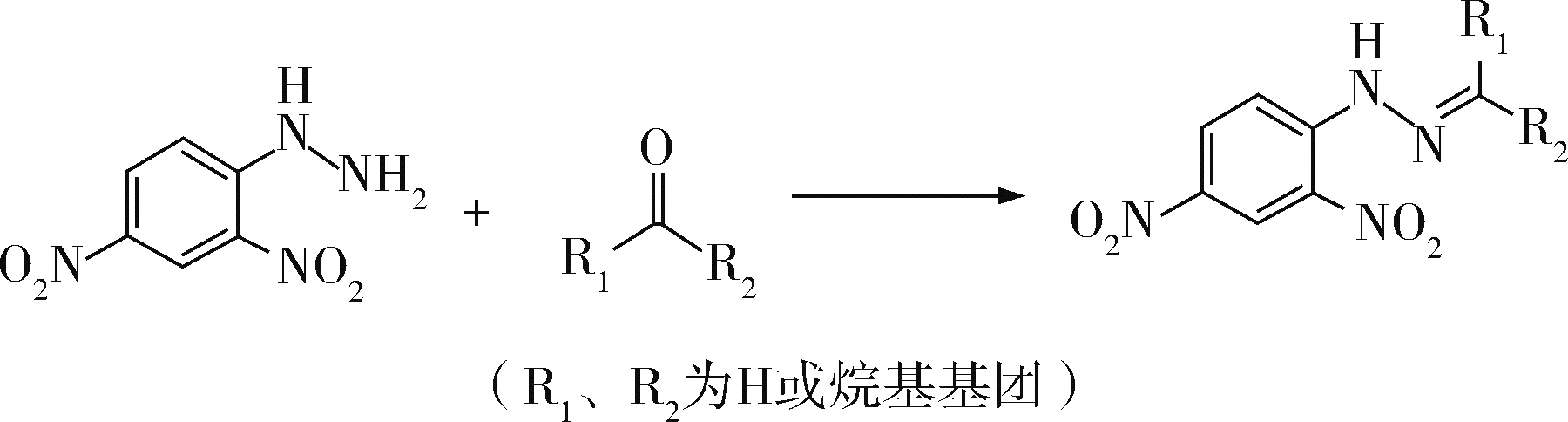

Fig.1. General reaction formula of aldehydes and ketones and DNPH

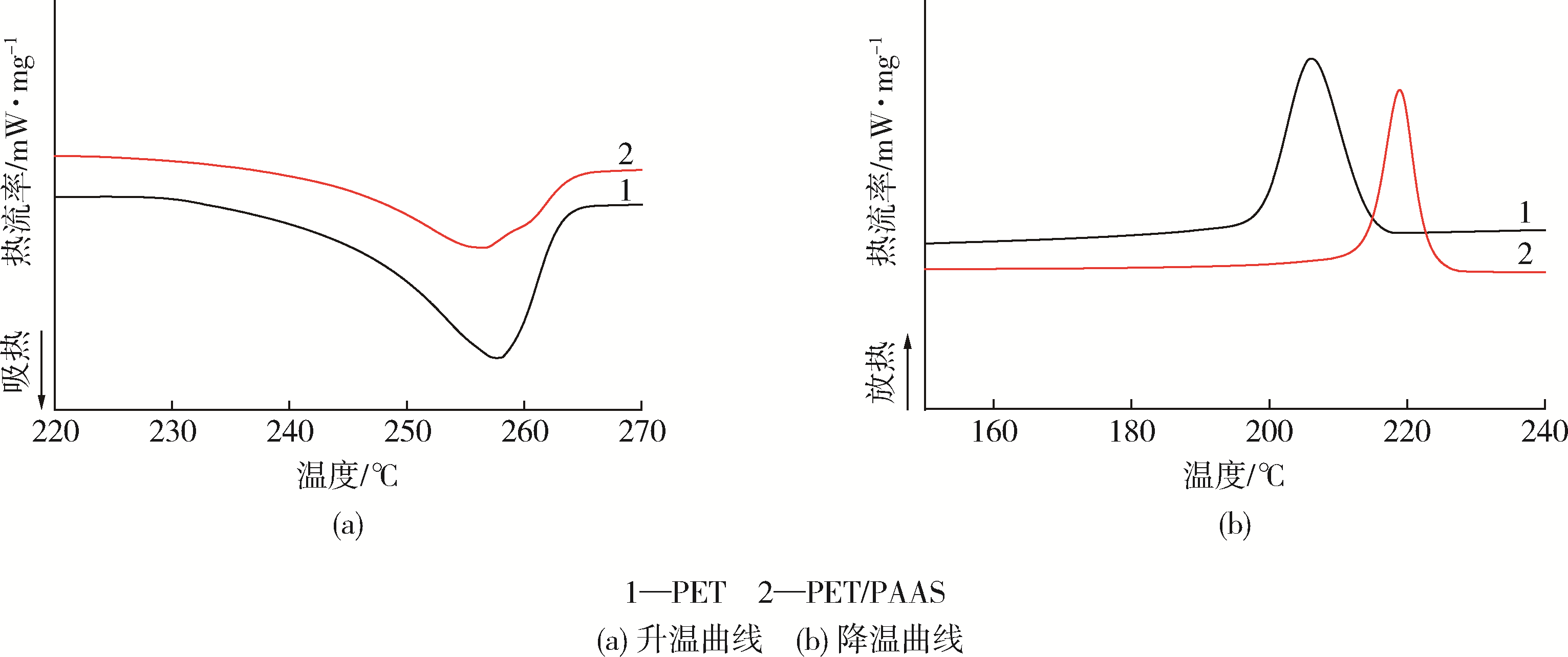

Fig.2. Heating and cooling curves of PET/PAAS composites

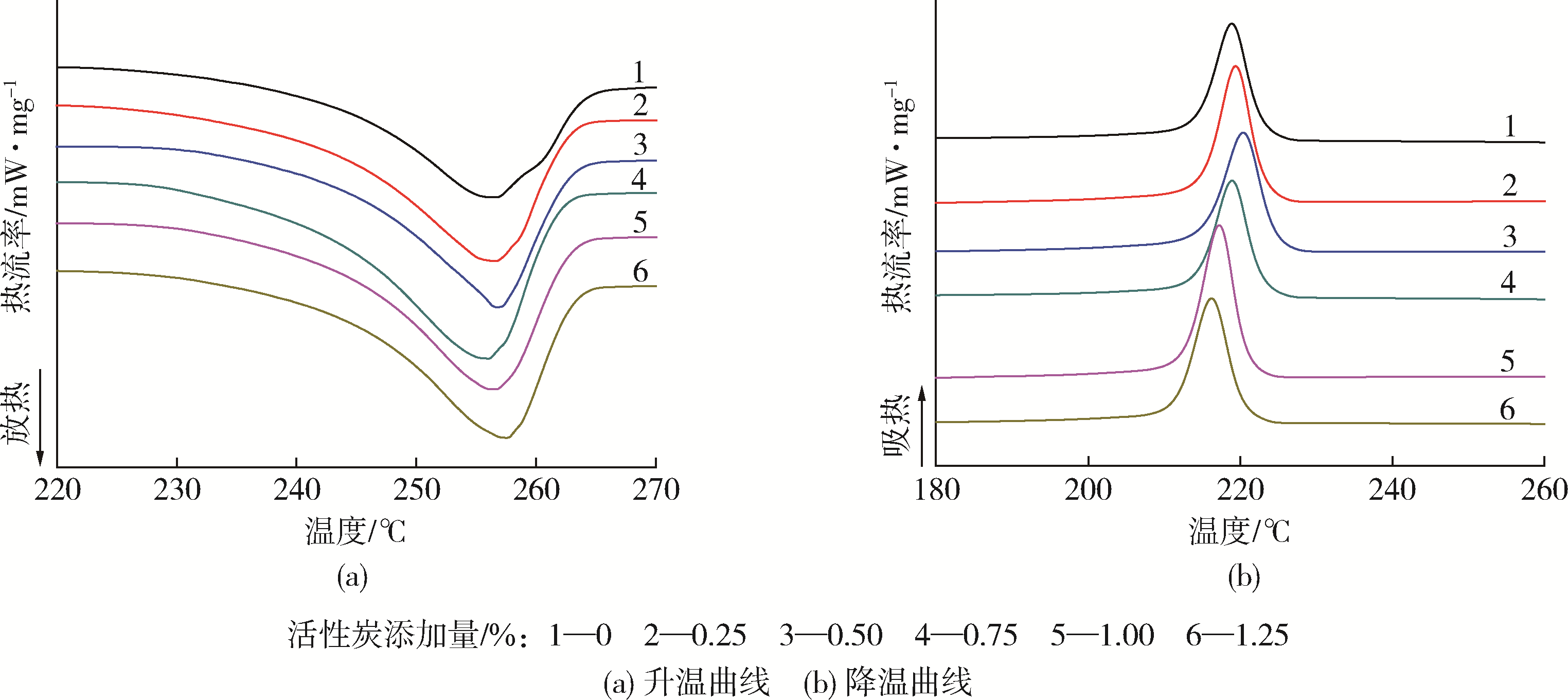

Fig.3. Heating and cooling DSC curves of PET/PAAS/activated carbon composites with different amounts of activated carbon

活性炭添加量/%	T_m/℃	ΔH_m/J·g^?1	X_c/%	T₀/℃	T_c/℃
0	257.16	50.04	45.71	226.94	219.30
0.25	256.21	49.84	47.29	227.42	219.39
0.50	256.04	48.43	48.55	227.94	220.40
0.75	255.92	52.21	51.50	226.58	218.93
1.00	256.41	49.12	49.83	225.78	217.24
1.25	256.84	50.67	48.19	225.18	216.25

Tab.2. Thermodynamic data of heating and cooling of PET/PAAS/activated carbon composites

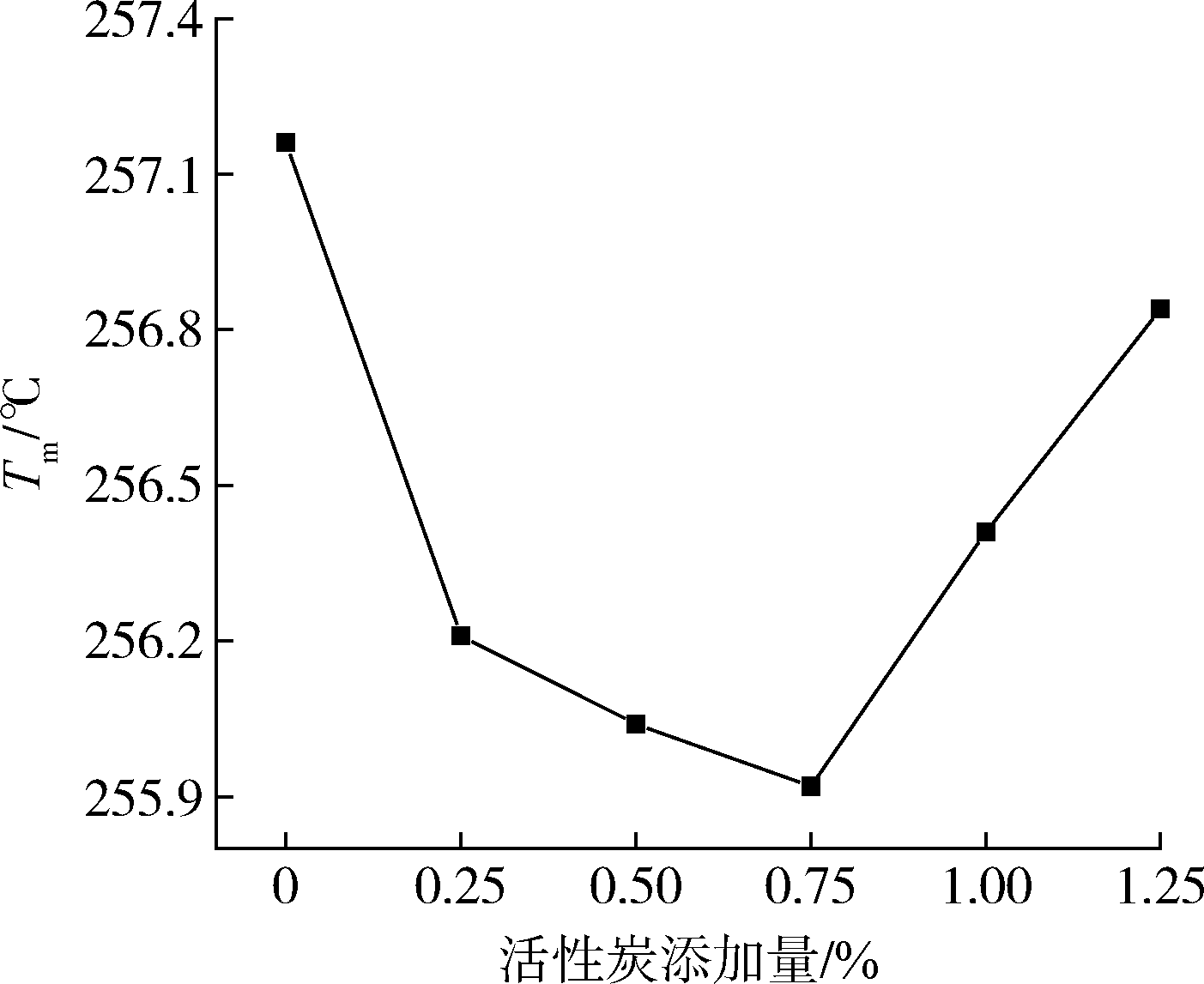

Fig.4. Melting points of PET/PAAS/activated carbon composites with different amounts of activated carbon

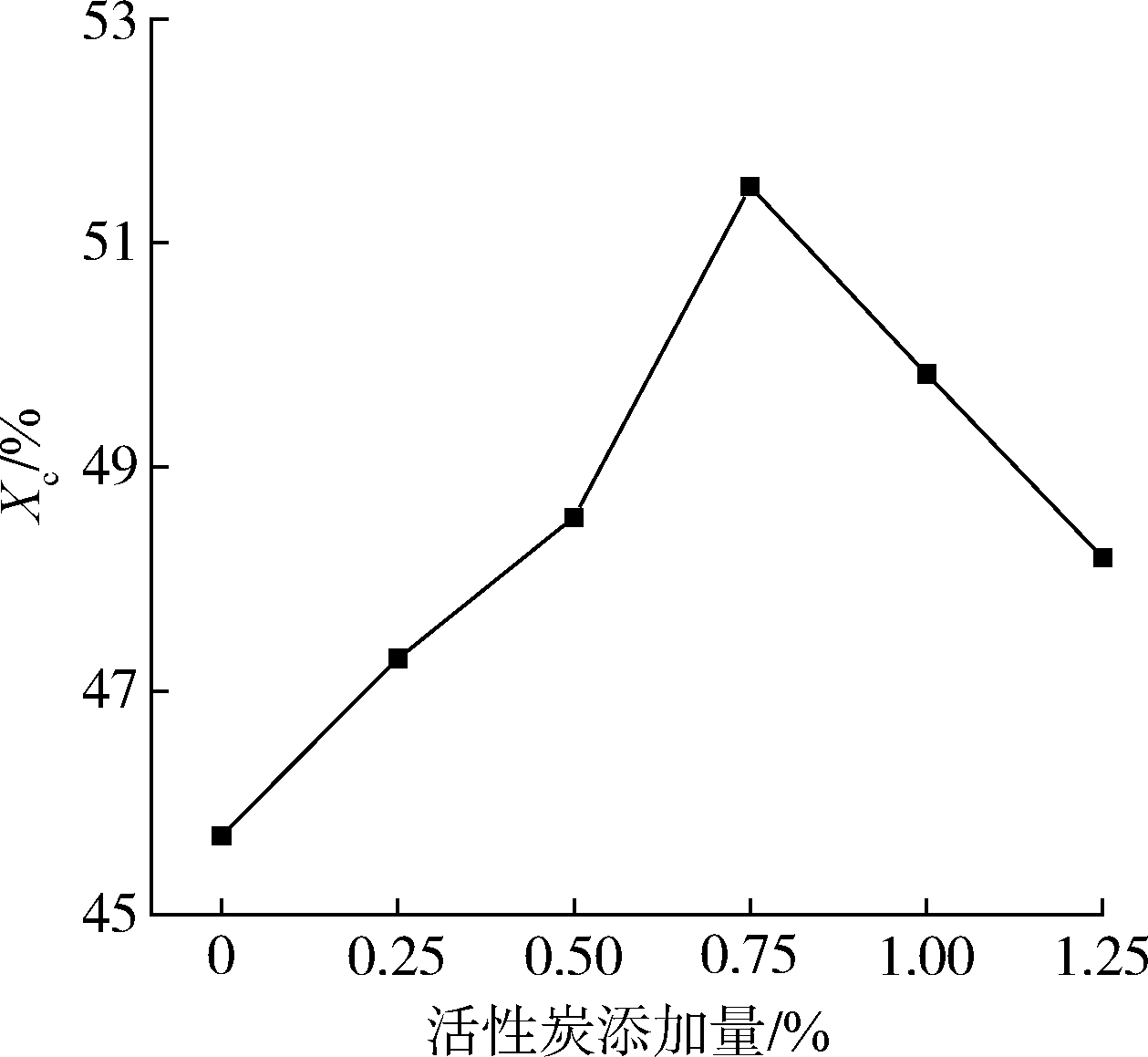

Fig.5. Crystallinity of PET/PAAS/activated carbon composites with different amounts of activated carbon

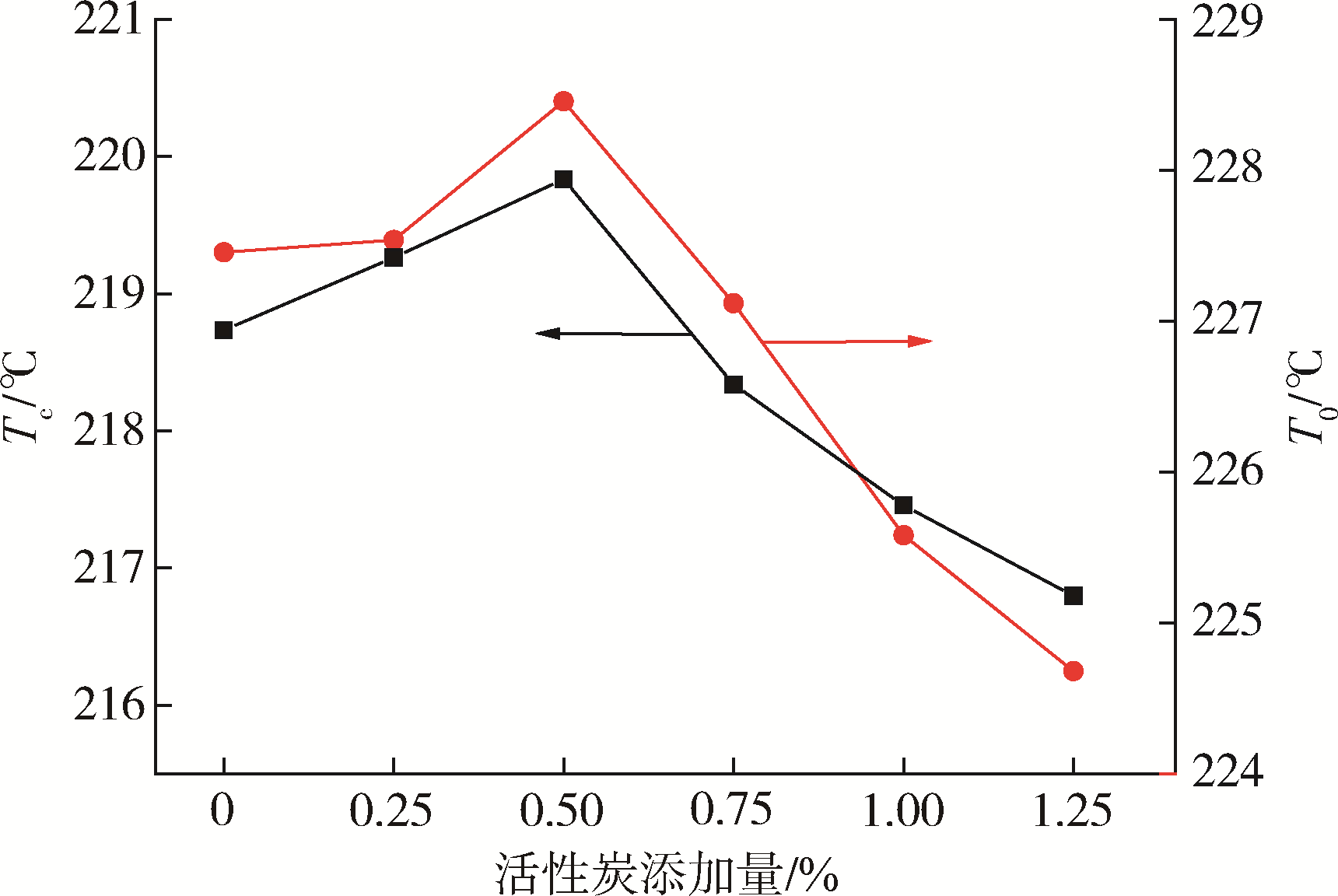

Fig.6. Initial crystallization temperature and crystallization temperature of PET/PAAS/activated carbon composites with different amounts of activated carbon

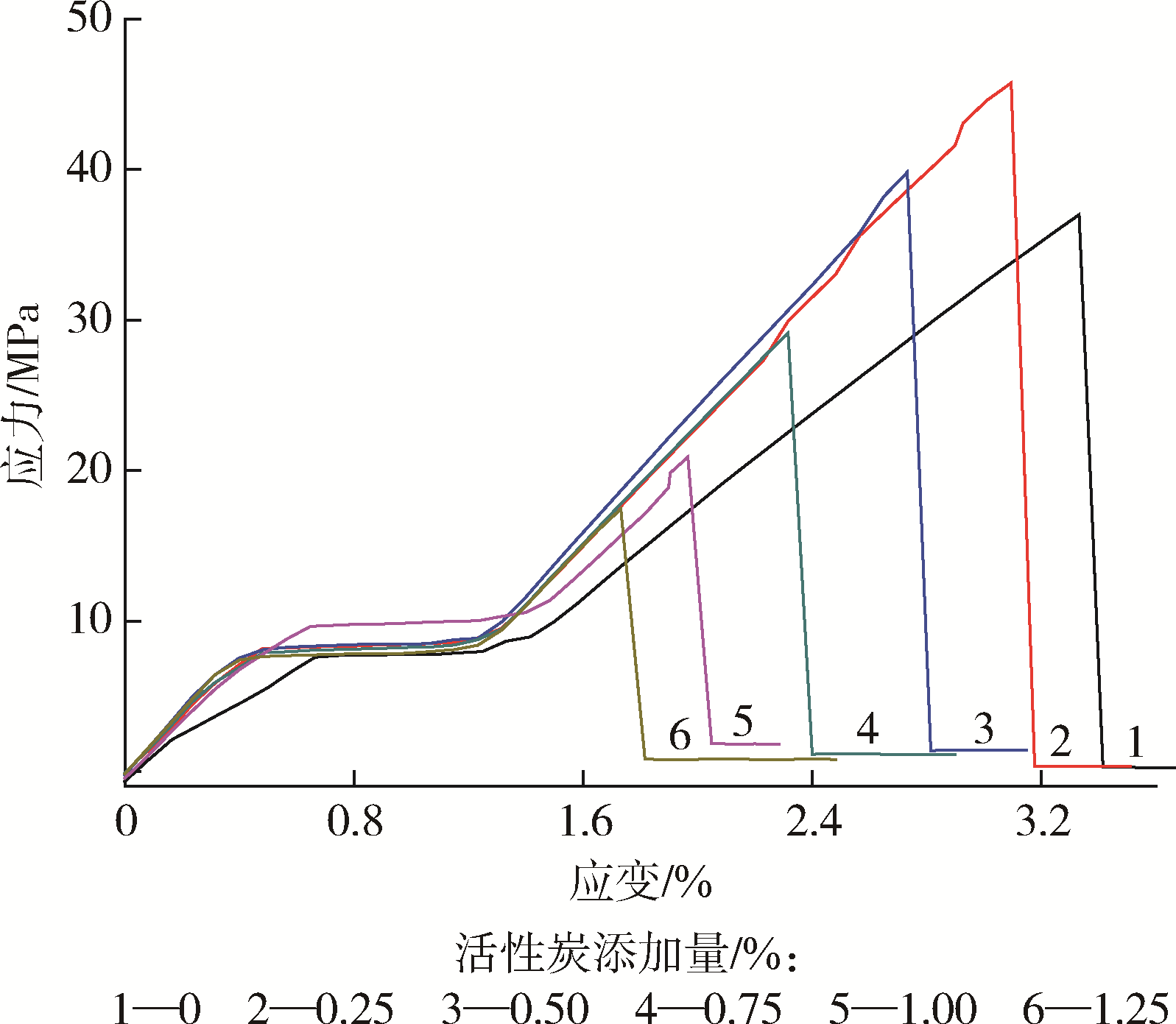

Fig.7. Stress?strain curves of PET/PAAS/activated carbon composites with different amounts of activated carbon

活性炭添加量/%	初始模量/MPa
0	1 145
0.25	1 695
0.50	1 671
0.75	1 403
1.00	1 357
1.25	1 583

Tab.3. Initial modulus of PET/PAAS/activated carbon composites

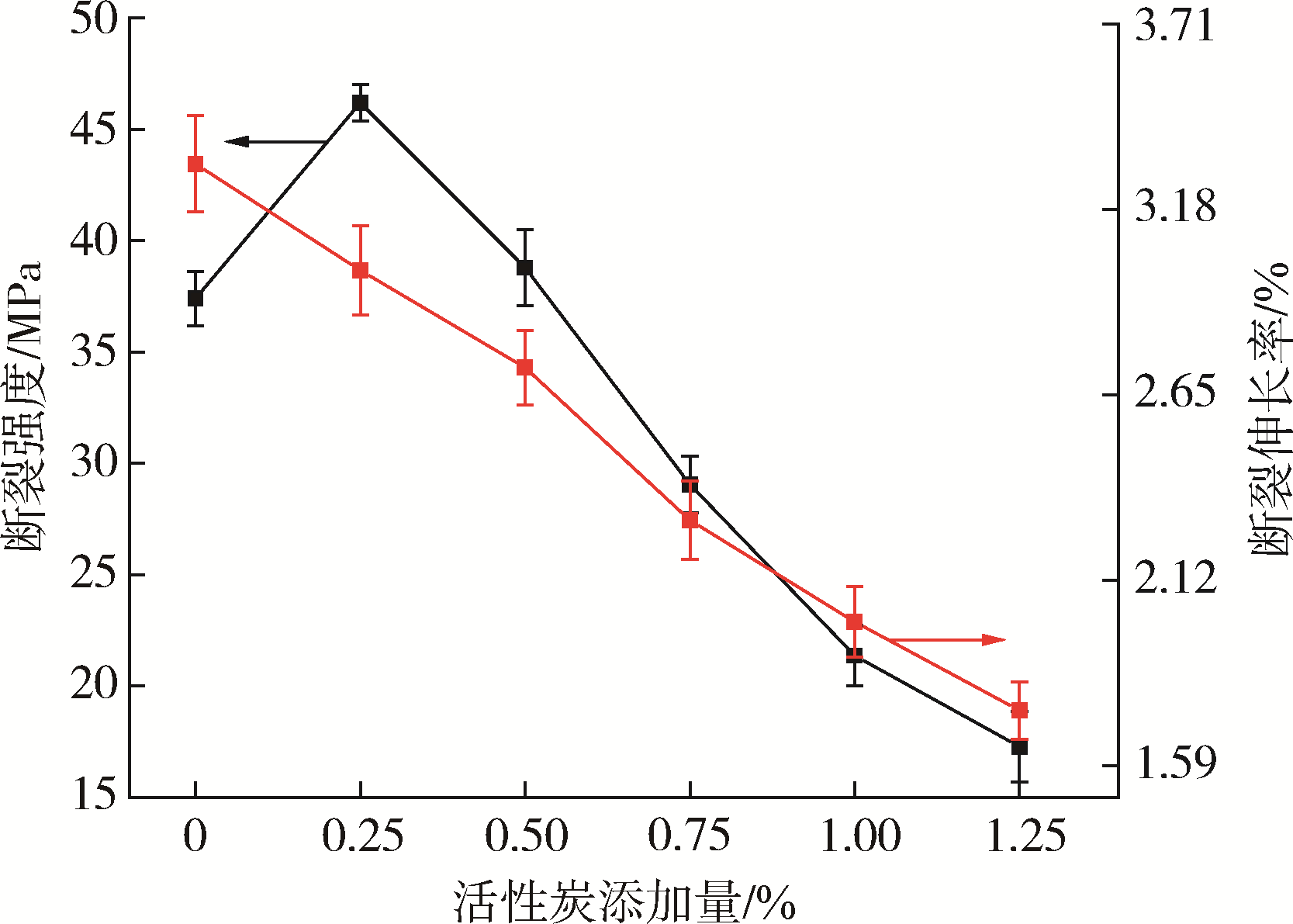

Fig.8. Effect of different activated carbon content on breaking strength and elongation at break of PET/PAAS/activated carbon composites

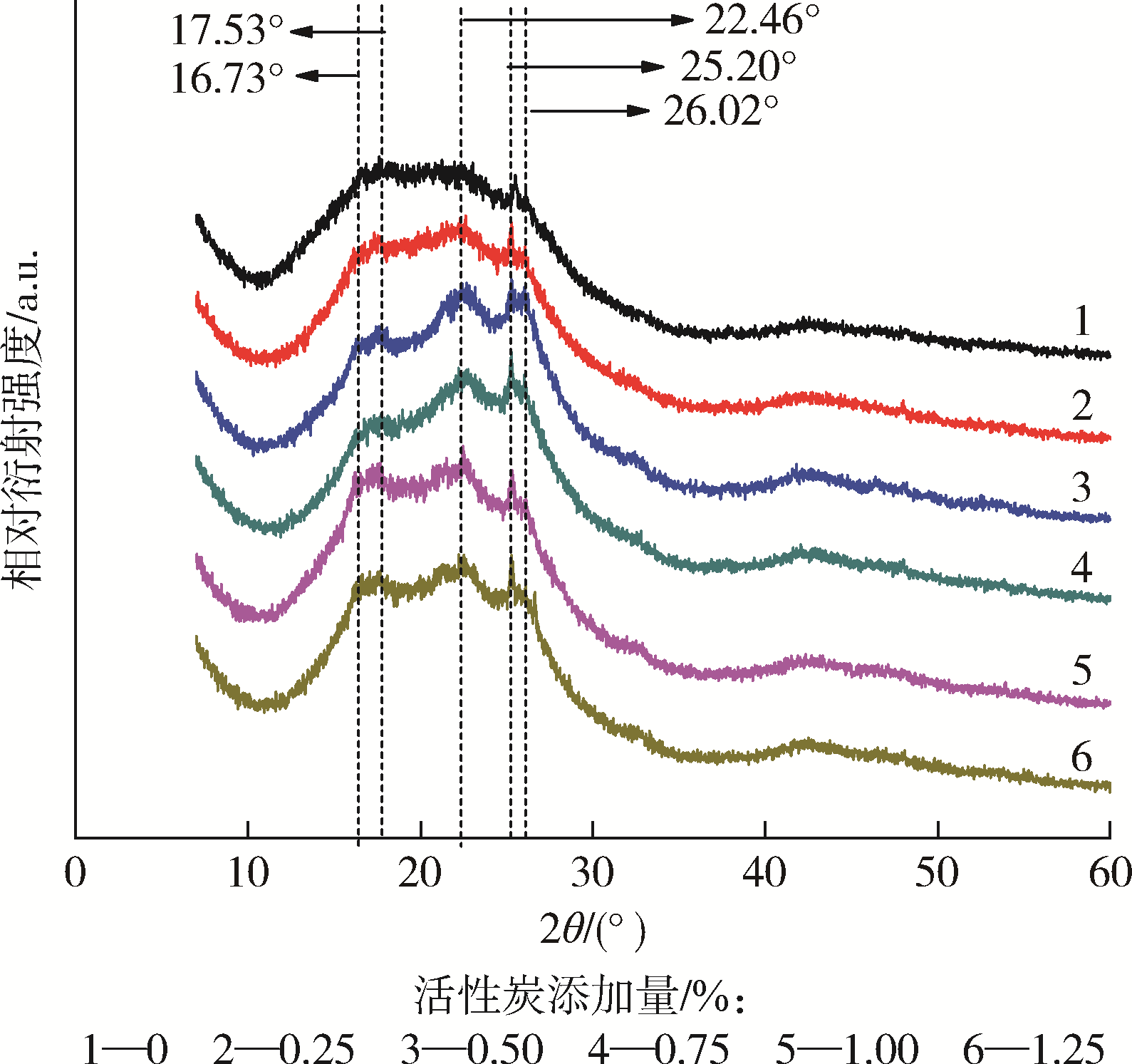

Fig. 9. XRD diffraction curves of PET/PAAS/activated carbon composites with different amounts of activated carbon

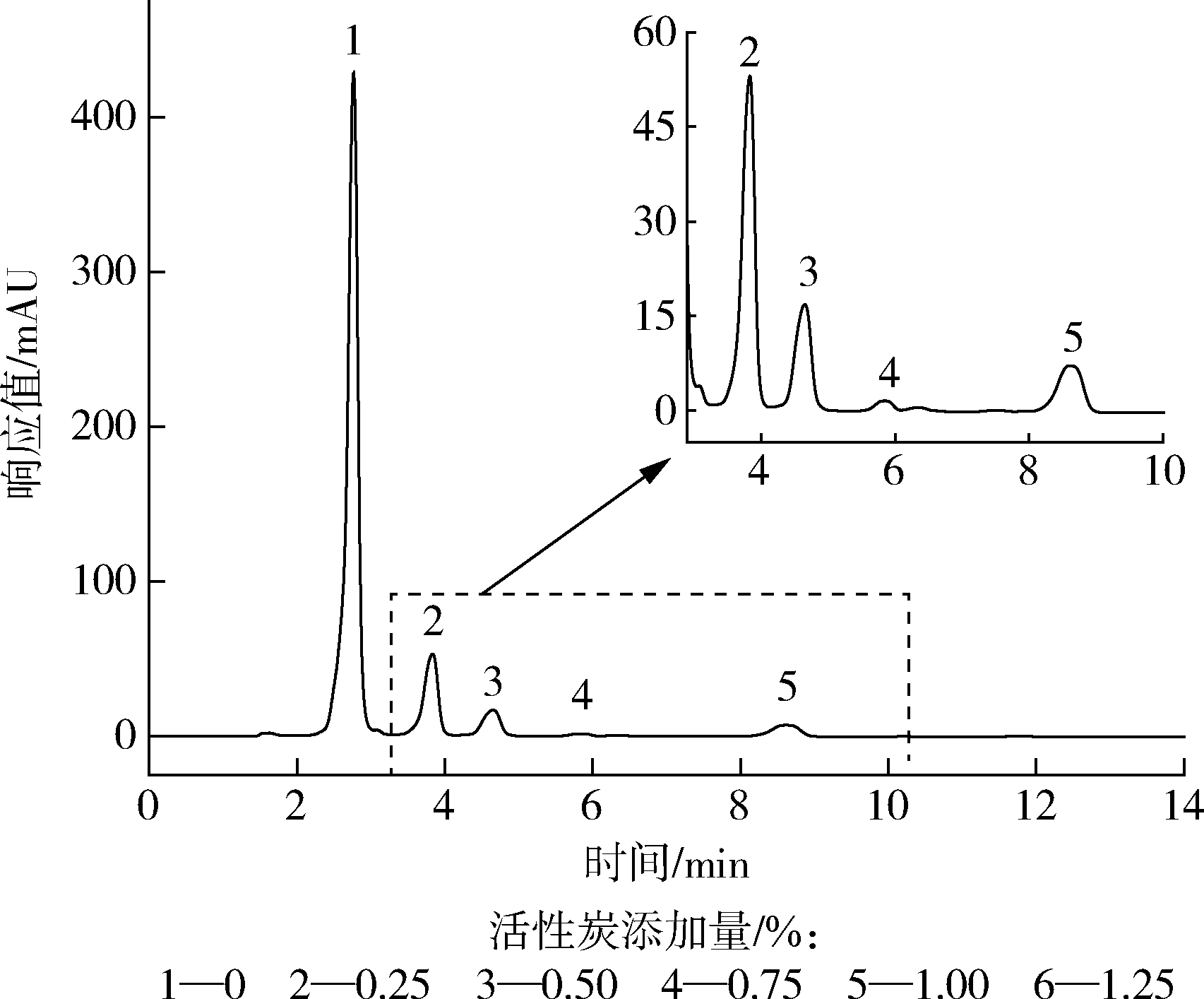

Fig.10. HPLC chromatogram of APET/PAAS/activated carbon composites without activated carbon

活性炭添加量/%	甲醛		乙醛		丙酮
活性炭添加量/%	峰面积之比	含量/μg·g^-1	峰面积之比	含量/μg·g^-1	峰面积之比	含量/μg·g^-1
0	2.402 5	2.285	0.947 3	1.321	0.315 8	0.581
0.25	1.554 9	1.479	0.735 2	1.025	0.273 6	0.503
0.50	1.052 8	1.001	0.462 4	0.645	0.201 6	0.371
0.75	0.823 6	0.783	0.367 8	0.513	0.143 5	0.264
1.00	0.647 8	0.616	0.213 5	0.298	0.104 1	0.191
1.25	0.135 4	0.128	0.075 4	0.105	0.062 4	0.115

Tab.4. VOC content of APET/PAAS/activated carbon composites

References 13

1	VIRENDRA S, TEJVIR S, AMITA C, et al. Swift Heavy Ion Induced Modification in PET: Structural and Thermal Properties[J]. Nuclear Instruments and Methods in Physics Research B, 2006, 244(1): 243⁃247.
2	杨挺. 高性能工程塑料在汽车领域中的应用与发展[J]. 中国石油和化工经济分析, 2010, (12): 20⁃24.
	YANF T, Application and Development of High⁃performance Engineering Plastics in the Automotive Field[J]. Economic Analysis of China Petroleum and Chemical Industry, 2010, (12): 20⁃24.
3	牛茜, 蒋琼, 俞雁. 浅谈国内外汽车VOC法规和检测方法[J]. 材料应用, 2018, 4: 50⁃60.
	NIU X, JINAG Q, YU Y. Talking about Domestic and Foreign Automobile VOC Regulations and Testing Methods[J]. Material Application, 2018, 4: 50⁃60.
4	吕国会. 浅谈降低汽车内饰件用聚氨酯材料VOC的措施[J]. 化学推进剂与高分子材料, 2018, 16(1): 1⁃12.
	LV G H. Talking about Means to Reduce VOC of Polyurethane Materials for Automotive Interior Parts[J]. Chemical Propellants & Polymeric Materials, 2018, 16(1): 1⁃12.
5	陈振斌, 马应霞, 张安杰, 等. 聚丙烯酸钠高吸水性树脂的改性研究进展[J]. 应用化工, 2009, 38(11): 1 656⁃1 661.
	CHEN Z B, MA Y X, ZHANG A J, et al. Advanced Development of Modification of Superabsorbent Polymer Based on Sodium Polyacrylate[J]. Applied Chemical Industry, 2009, 38(11): 1 656⁃1 661.
6	刘琴, 程存喜, 张铎严. 聚丙烯酸钠吸水树脂的合成及性能研究[J]. 广州化工, 2017, 45(11): 62⁃64.
	LIU Q, CHENG C X, ZHANG D Y. Synthesis and Properties of Sodium Polyacrylate Hydrogel[J]. Guangzhou Chemical Industry, 2017, 45(11): 62⁃64.
7	李本刚, 范玉曼, 张严丹, 等. 聚丙烯酸钠/纳米纤维素晶体⁃g⁃聚丙烯酰胺复合高吸水性树脂的制备与表征[J]. 高分子材料科学与工程, 2018, 34(7): 156⁃161.
	LI B G, FAN Y M, ZHANG Y D, et al. Preparation and Characterization of Sodium Polyacrylate/(Nanicrysatlline Cellulose)⁃g⁃Polyacrylamide Superabsorbent Composites[J]. Polymer Materials Science & Engineering, 2018, 34(7): 156⁃161.
8	刘宝成, 赵晓明. 活性炭吸附去除室内甲醛的研究进展[J]. 成都纺织高等专科学校学报, 2017, 34(1): 224⁃229.
	LIU B C, ZHAO X M, Research Progress of Activated Carbon Adsorption Removal of Indoor Formaldehyde[J]. Journal of Chengdu Textile College, 2017, 34(1): 224⁃229.
9	高丁丁, 蒙冕武, 谢君梁, 等. 改性活性炭纤维协同等离子体去除甲醛[J]. 环境工程, 2018, 36(12): 125⁃129.
	GAO D D, MENG M W, XIE J L, et al. Formaldehyde Removal by Modified Activated Carbon Fiber Combined with Plasma[J]. Environmental Engineering, 2018, 36(12): 125⁃129.
10	徐伏, 王莉, 曹云丽. PET/碳纳米管复合材料的结晶性能和力学性能研究[J]. 塑料科技, 2016, 44(11): 21⁃25.
	XU F, WANG L, CAO Y L. Study on Crystallization and Mechanical Properties of PET/Carbon Nanotubes Composites[J]. Plastics Science and Technology, 2016, 44(11): 21⁃25.
11	王迪然, 罗发亮, 赵阿龙. 柠檬酸钠对PET结晶性能及力学性能的调控[J]. 合成树脂及塑料, 2018, 35(1): 23⁃29.
	WANG D R, LUO F L, ZHAO A L. Effect of SC on Crystallization and Mechanical Properties of PET[J]. China Synthetic Resin and Plastics, 2018, 35(1): 23⁃29.
12	程勇锋, 庄辉, 戴干策. 热处理对玻璃纤维增强PET力学性能的影响[J]. 工程塑料应用, 2005, 33(10): 20⁃23.
	CHENG Y F, ZHUANG H, DAI G C. Influence of Heat⁃Treatment on Mechanical Property of Glass Fiber Reinforced Poly(ethylene terephthalate) [J]. Engineering Plastics Application, 2005, 33(10): 20⁃23.
13	黄山, 刘炳艳, 田秀娟, 等. 聚磷酸酯阻燃剂对PET结晶行为及形态结构的影响[J]. 山东科技大学学报, 2018, 37(5): 50⁃56.
	HUANG S, LIU B Y, TIAN X J, et al. Effect of Polyphosphoester Flame Retardant on Crystallization Behavior and Morphology of PET[J]. Journal of Shangong University of Science and Technology, 2018, 37(5): 50⁃56.
