Preparation and Properties of Poly（lactic acid）/Polycaprolactone Degradable Multilayered Films Based on Micro⁃nano Multiplayer Coextrusion

doi:10.19491/j.issn.1001-9278.2021.11.002

Abstract

Abstract:

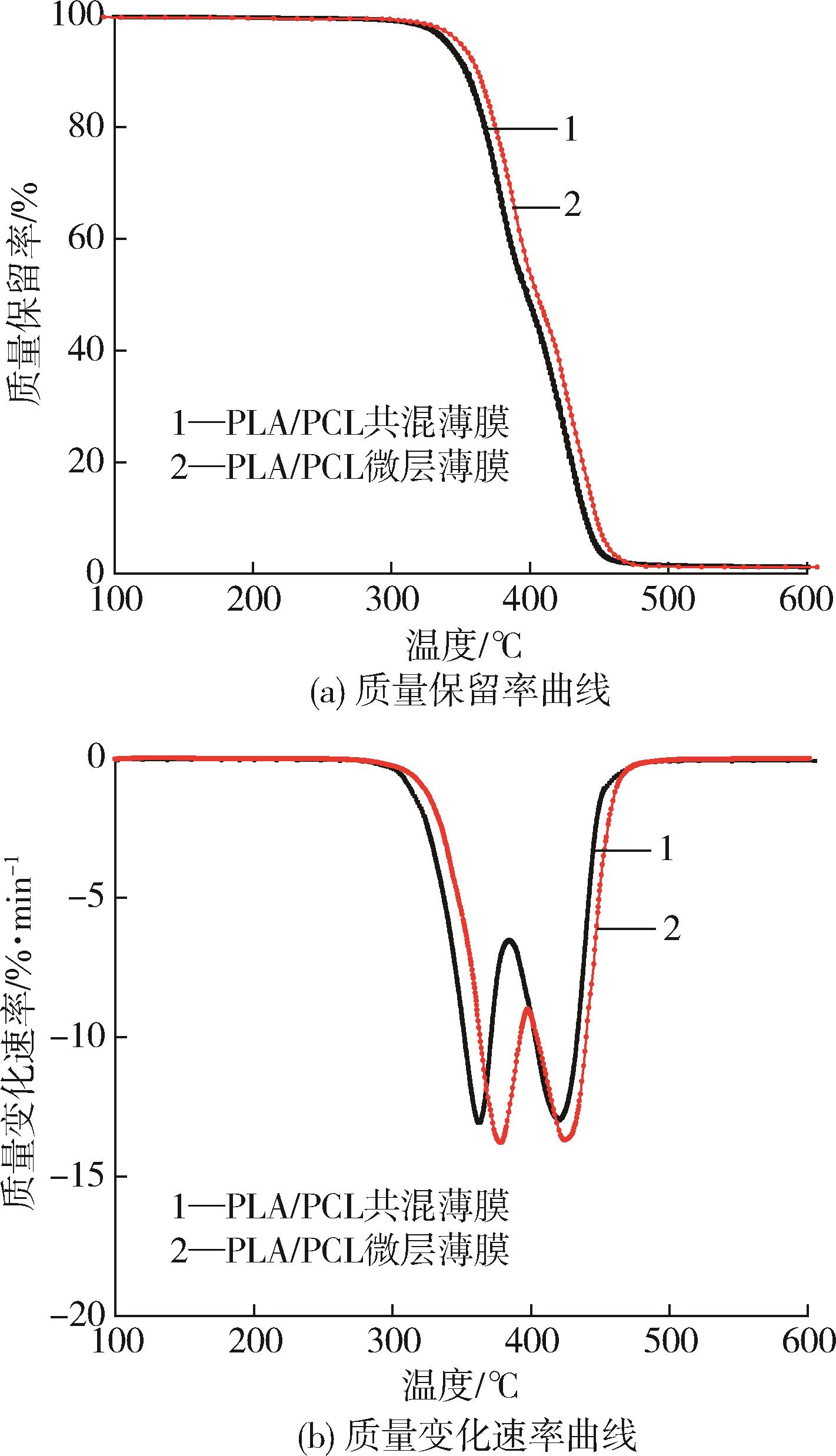

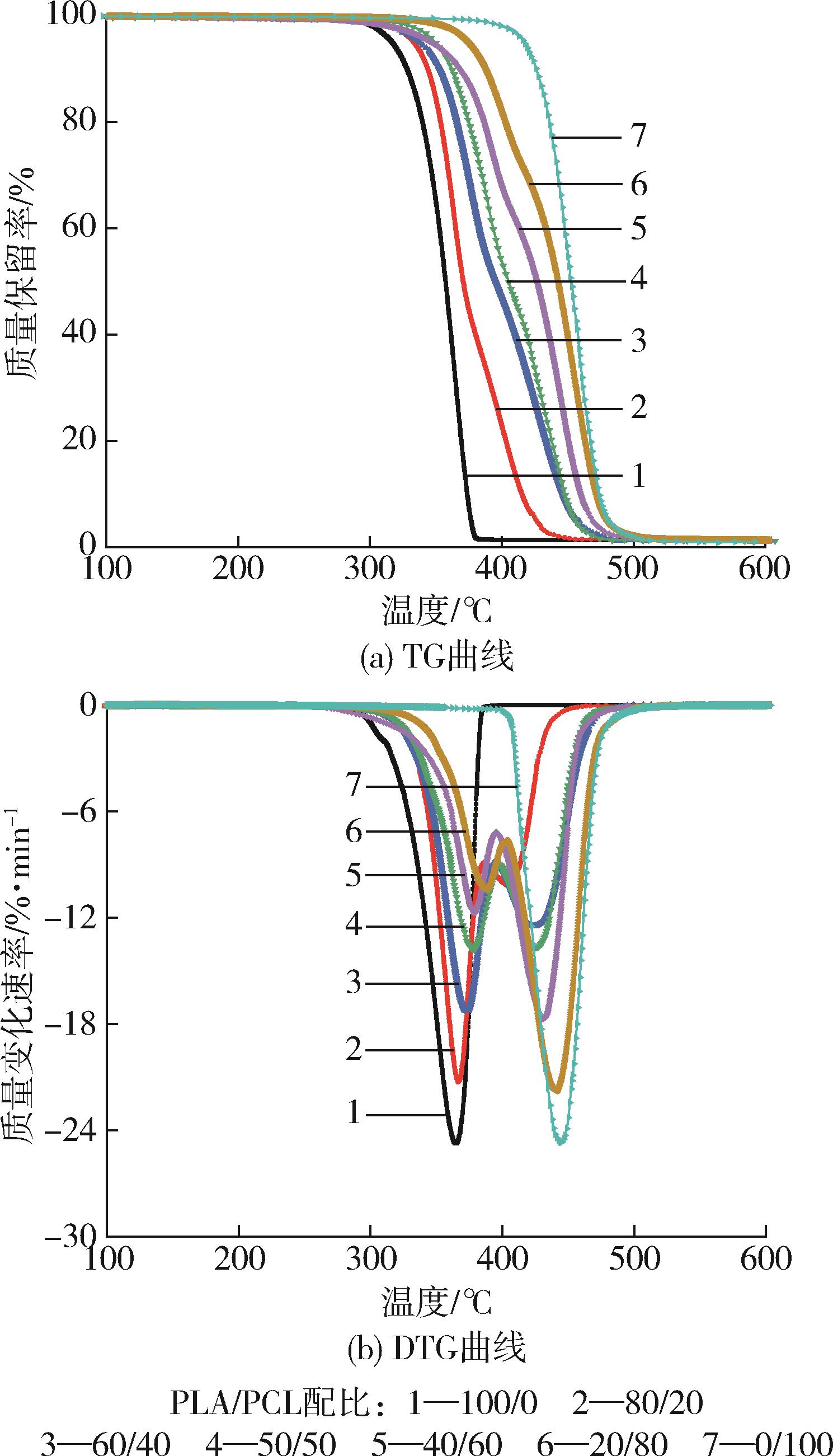

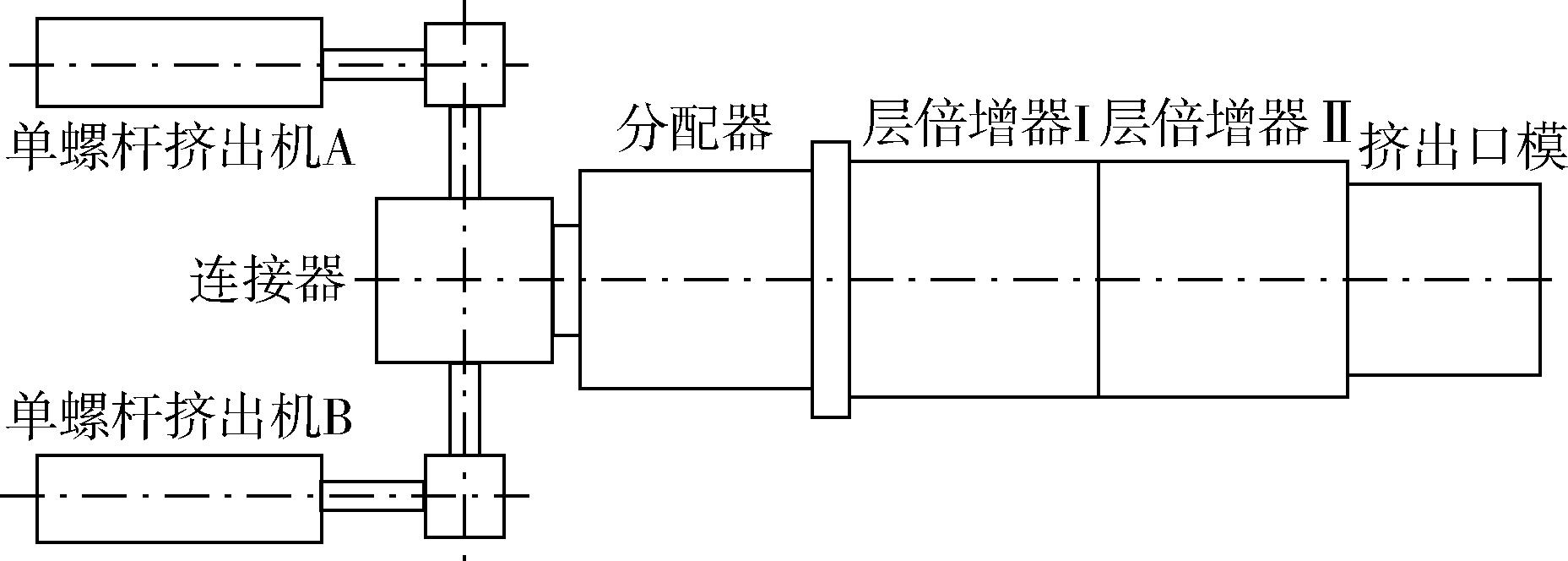

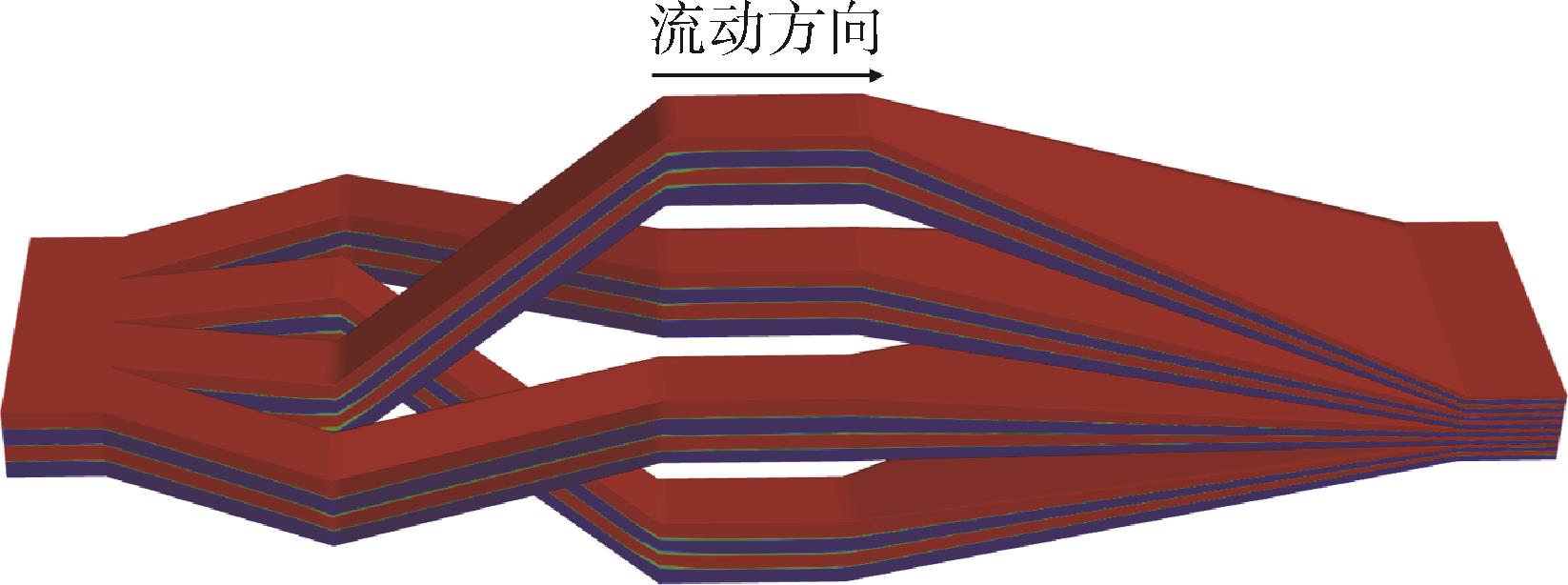

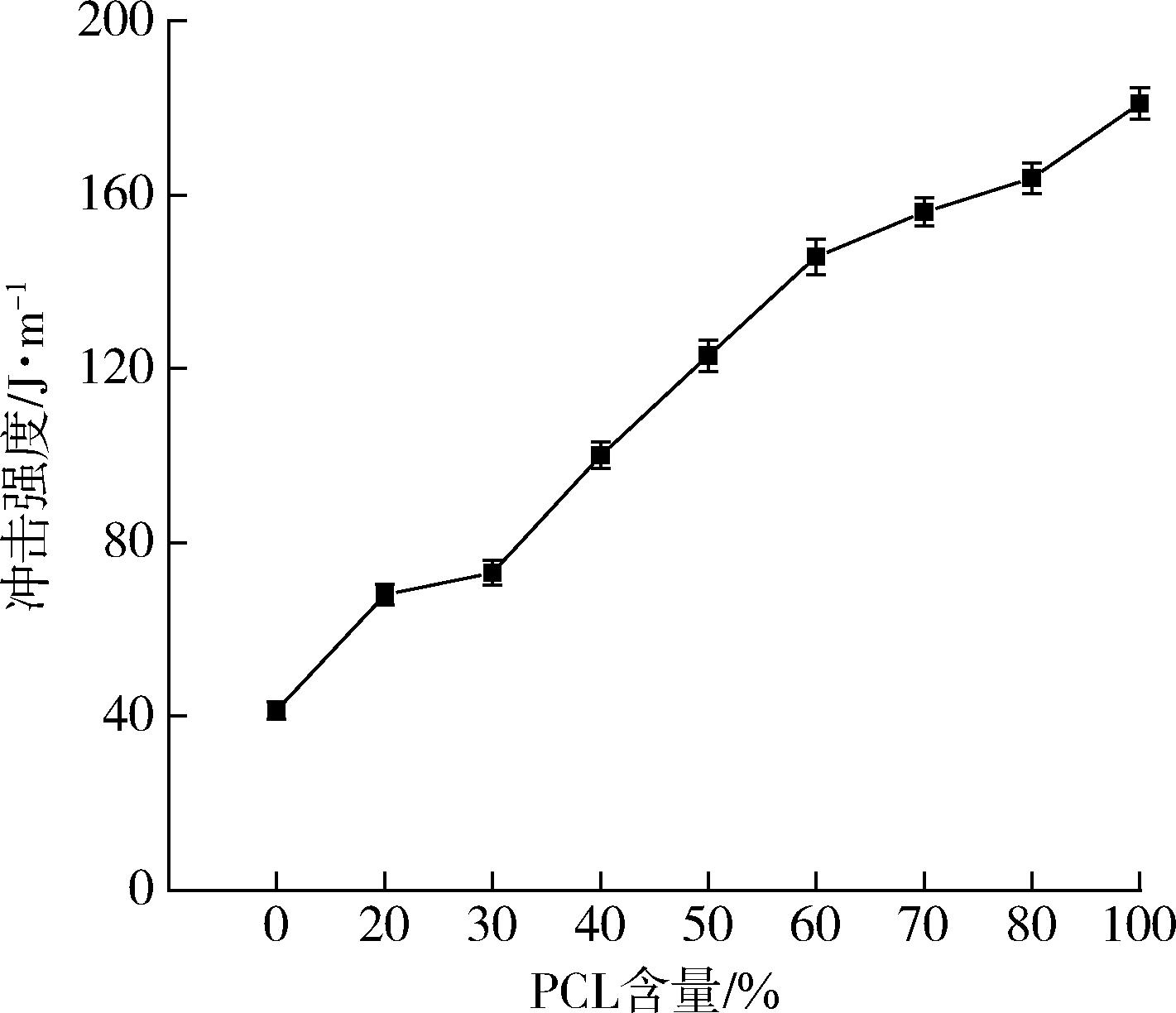

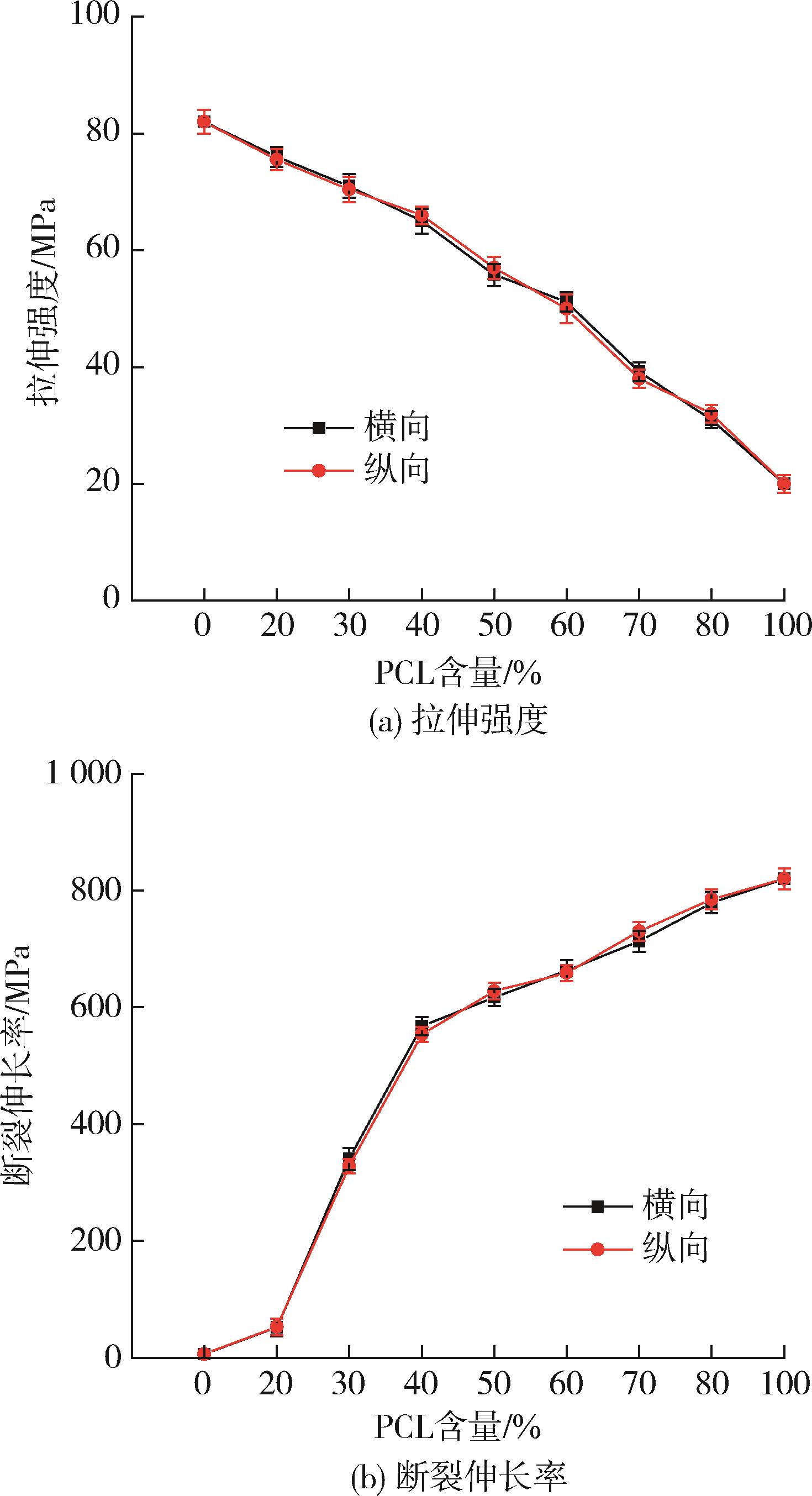

Poly（lactic acid）（PLA）/polycaprolactone （PCL） biodegradable multilayered films were prepared through a micro-nano layer multiplier coextrusion equipment， and their microstructure， mechanical properties and thermal stability were characterized by scanning electron microscopy， tensile and impact measurements， differential scanning calorimetry， and thermogravimetric analysis. The results indicated that the multilayered films exhibited better thermal stability and mechanical properties than the PLA/PCL blend films. PCL showed a significant toughening effect on the multilayered films， improving their crystallinity and thermal stability. When the PLA/PCL ratio was set as 40/60， 50/50 or 60/40， the multilayered films achieved good comprehensive properties with tensile strength of over 51.2 MPa， elongation at break of over 568.6 %， impact strength of over 100.7 J/m， PLA crystallinity of over 43.28 %， and thermal degradation peak temperature of over 373.22 ℃.

Key words: poly（lactic acid）, polycaprolactone, micro-nano layer multiplier coextrusion equipment, degradable multilayer film, mechanical property, thermal stability

CLC Number:

TQ 326.9

GU Lin, ZHU Yuting, HE Jialong, ZHU Huihao, MA Yulu, XIE Linsheng. Preparation and Properties of Poly（lactic acid）/Polycaprolactone Degradable Multilayered Films Based on Micro⁃nano Multiplayer Coextrusion[J]. China Plastics, 2021, 35(11): 7-14.

Figures/Tables 17

References 14

1	LUCKACHAN G E， PILLAI C K S. Biodegradable Polymers—A Review on Recent Trends and Emerging Perspectives［J］. Journal of Polymers and the Environment， 2011， 19（3）：637⁃676.
2	MOHANTY A K， MISRA M， G.Biofibres HINRICHSEN， Biodegradable Polymers and Biocomposites： An Overview［J］. Macromolecular Materials and Engineering， 2000， 276/277（1）：1⁃24.
3	VROMAN I， TIGHZERT L. Biodegradable Polymers［J］. Materials， 2009（2）： 307⁃344.
4	MADHAVAN N K， NAIR N R， JOHN R P. An Overview of the Recent Developments in Polylactide （PLA） Research［J］. Bioresource Technology， 2010， 101（22）：8 493⁃8 501.
5	LEHERMEIER H J， DORGAN J R. Melt Rheology of Poly（lactic acid）： Consequences of Blending Chain Architectures［J］. Polymer Engineering & Science， 2001， 41（12）：2 172–2 184.
6	WOODRUFF M A， HUTMACHER D W. The Return of a Forgotten Polymer—Polycaprolactone in the 21st Century［J］. Progress in Polymer Science， 2010， 35（10）：1 217⁃1 256.
7	CHEN J， LIANG L L， DE F W， et al. Green Poly（ε⁃caprolactone） Composites Reinforced with Electrospun Polylactide/Poly（ε⁃caprolactone） Blend Fiber Mats［J］. ACS Sustainable Chemistry & Engineering， 2014， 2：2 102⁃2 110.
8	NAVARRO⁃BAENA I， SESSINI V， DOMINICI F， et al. Design of Biodegradable Blends Based on PLA and PCL： From Morphological， Thermal and Mechanical Stu⁃dies to Shape Memory Behavior［J］. Polymer Degradation and Stability， 2016， 132：97⁃108.
9	SHEN J， WANG M， LI J， et al. Simulation of Mechanical Properties of Multilayered Propylene⁃Ethylene Copolymer/ethylene 1⁃octene Copolymer Composites by Equivalent Box Model and its Experimental Verification［J］. European Polymer Journal， 2009， 45（11）：3 269⁃3 281.
10	SUNG K， HILTNER A， BAER E. Three⁃dimensional Interaction of Crazes and Micro⁃shearbands in PC⁃SAN Microlayer Composites［J］. Journal of Materials Science， 1994， 29（21）：5 559⁃5 568.
11	NAGARAJAN V， ZHANG KY， MISRA M， et al. Overcoming the Fundamental Challenges in Improving the Impact Strength and Crystallinity of PLA Biocomposites： Influence of Nucleating Agent and Mold Temperature［J］. Acs Applied Materials & Interfaces， 2015， 7（21）：11 203⁃11 214.
12	LUYT A S， GASMI S. Influence of Blending and Blend Morphology on the Thermal Properties and Crystallization Behaviour of PLA and PCL in PLA/PCL Blends［J］. Journal of Materials Science， 2016， 51（9）：4 670⁃4 681.
13	CHEN J， DENG C， HONG R， et al. Effect of Thermal Annealing on Crystal Structure and Properties of PLLA/PCL blend［J］. Journal of Polymer Research， 2020， 27（8）：221.
14	MOTLOUNG M P， OJIJO V， BANDYOPADHYAY J， et al. Morphological Characteristics and Thermal， Rheological， and Mechanical Properties of Cellulose Nanocrystals⁃containing Biodegradable Poly（lactic acid）/poly（ε⁃caprolactone） Blend Composites［J］. Journal of Applied Polymer Science， 2020， 137（19）：48665.

样品种类	拉伸强度/MPa	断裂伸长率/%	冲击强度/J·m^-1
共混薄膜	48.3±1.7	495.7±12.6	89.7±2.9
微层薄膜	55.8±1.9	617.3±14.9	123.3±3.6

样品种类	拉伸强度/MPa	断裂伸长率/%	冲击强度/J·m^-1
共混薄膜	48.3±1.7	495.7±12.6	89.7±2.9
微层薄膜	55.8±1.9	617.3±14.9	123.3±3.6

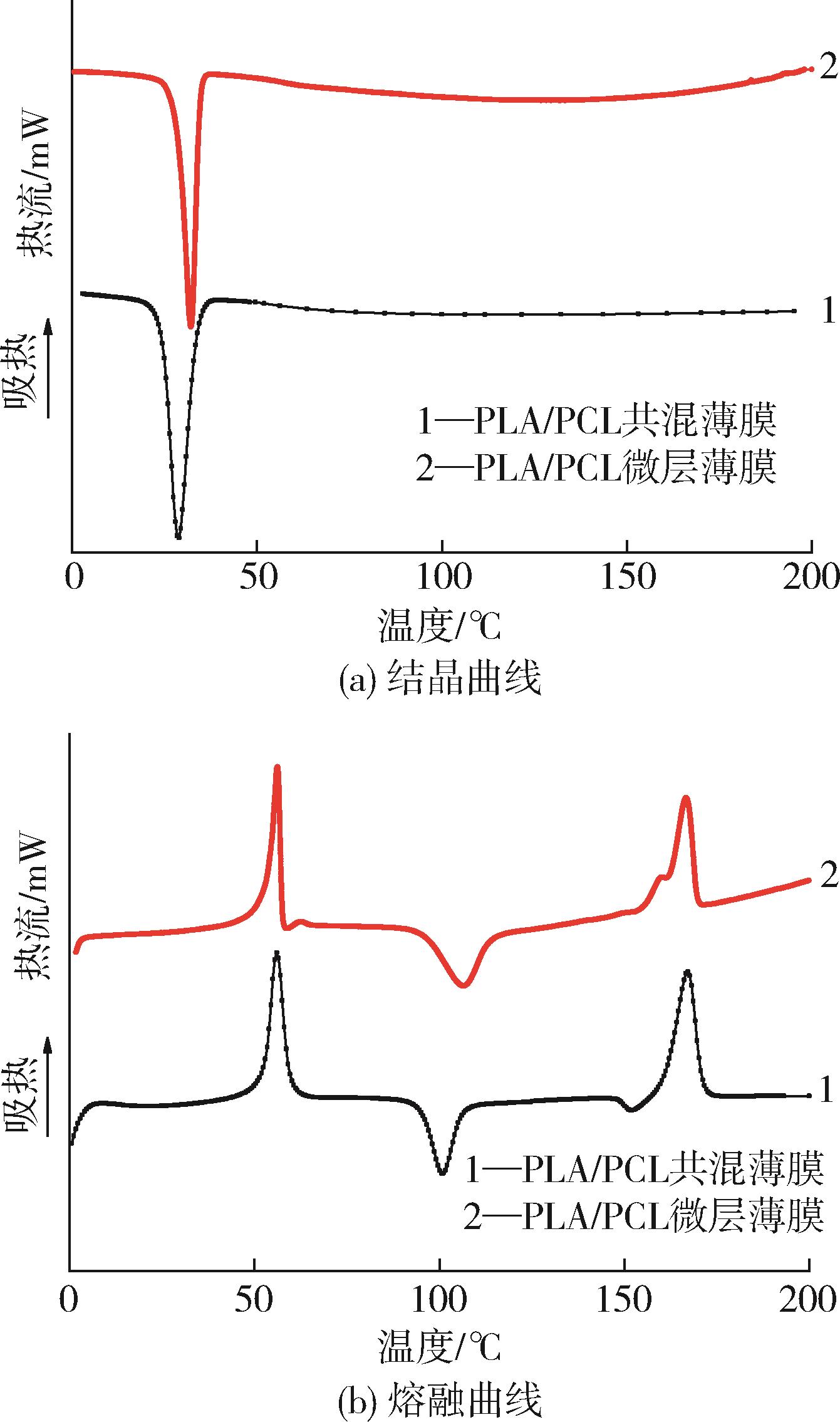

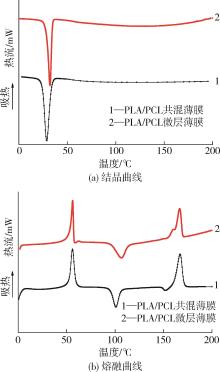

样品	PCL				PLA
样品	T_c/°C	T_m/°C	ΔH_m/J·g^-1	X_c/%	T_cc/°C	T_m/°C	ΔH_m/J·g^-1	X_c/%
共混薄膜	28.88	55.96	33.13	48.72	101.08	167.15	20.54	43.90
微层薄膜	32.18	56.18	33.82	49.74	106.66	166.71	22.18	47.39

样品	PCL				PLA
样品	T_c/°C	T_m/°C	ΔH_m/J·g^-1	X_c/%	T_cc/°C	T_m/°C	ΔH_m/J·g^-1	X_c/%
共混薄膜	28.88	55.96	33.13	48.72	101.08	167.15	20.54	43.90
微层薄膜	32.18	56.18	33.82	49.74	106.66	166.71	22.18	47.39

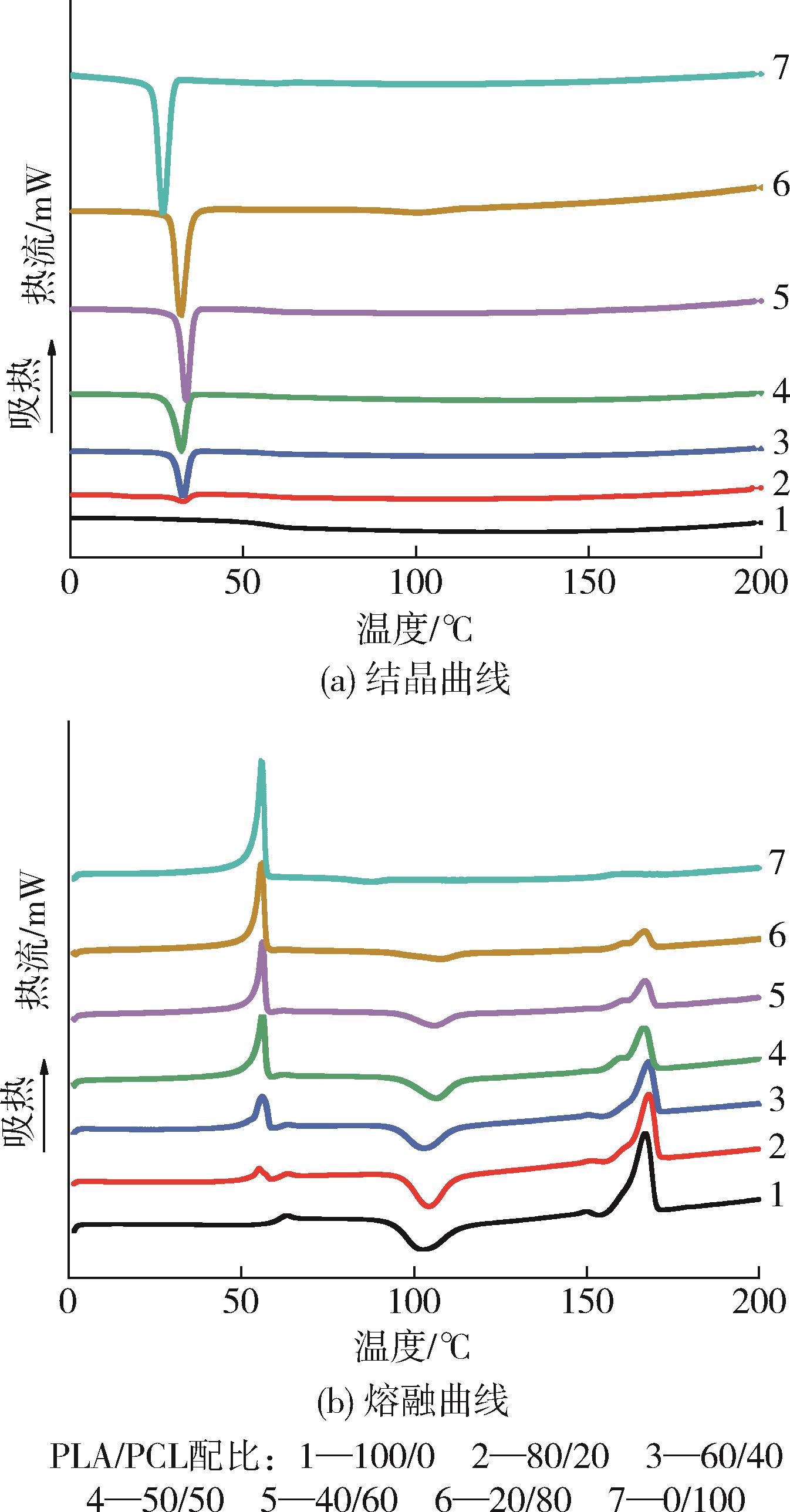

PLA/PCL	PCL				PLA
PLA/PCL	T_c/°C	T_m/°C	ΔH_m/J·g^-1	X_c/%	T_cc/°C	T_m/°C	ΔH_m/J·g^-1	X_c/%
100/0	—	—	—	—	102.68	166.71	34.14	36.47
80/20	32.52	55.28	11.59	42.63	104.43	168.04	29.94	39.98
60/40	32.69	55.91	25.26	46.43	102.93	167.9	24.31	43.28
50/50	32.18	56.18	33.82	49.74	106.66	166.71	22.18	47.39
40/60	33.37	56.09	44.46	54.48	105.98	166.98	19.79	52.85
20/80	32.00	55.93	60.56	55.66	107.73	166.63	10.36	55.37
0/100	26.70	55.75	61.96	45.56	—	—	—	—
