Thermoplastic starch composites reinforced synergistically with PLA fiber and PVA fiber

doi:10.19491/j.issn.1001-9278.2021.12.003

Abstract

Abstract:

To improve the mechanical and water resistance of thermoplastic starch （TPS） plastics， TPS based compo?sites reinforced with poly（lactic acid） fiber （PLAF） and poly（vinyl alcohol） fiber （PVAF） were prepared through extrusion molding. The effects of PVAF content on the mechanical properties， cross-section morphology， water resistance， and torque rheological properties of TPS/PVAF/PLAF composites were investigated. The results indicated that the mechanical properties and surface water resistance of the composites were improved effectively with the synchronous addition PLAF and PVAF. When the contents of PLAF and PVAF were 1 wt%， the tensile strength of the composites increased from 1.98 MPa to 10.53 MPa， the impact strength increased from 33.4 kJ/m² to 62.23 kJ/m²， and the balance torque of TPS/PVAF/PLAF compsite reached a maximum of 15.75 N·m.

Key words: poly（lactic acid） fiber, poly（vinyl alcohol） fiber, thermoplastic starch, composite, coordination, reinforcement

CLC Number:

TQ321.2

YIN Peng, MA Hongpeng, GUO Bin, LI Panxin. Thermoplastic starch composites reinforced synergistically with PLA fiber and PVA fiber[J]. China Plastics, 2021, 35(12): 16-20.

Figures/Tables 5

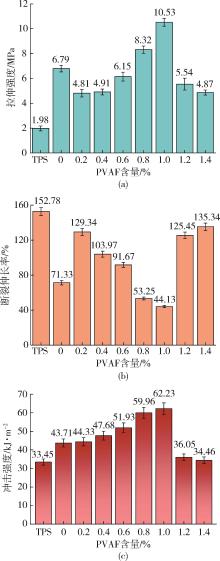

Fig.1. Mechanical properties of TPS/PLAF/PVAF with different PVAF content

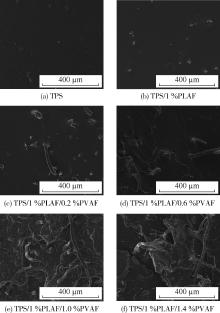

Fig.2. SEM micrograph for the fractured surface of TPS/PLAF/PVAF filled with different PVAF contents

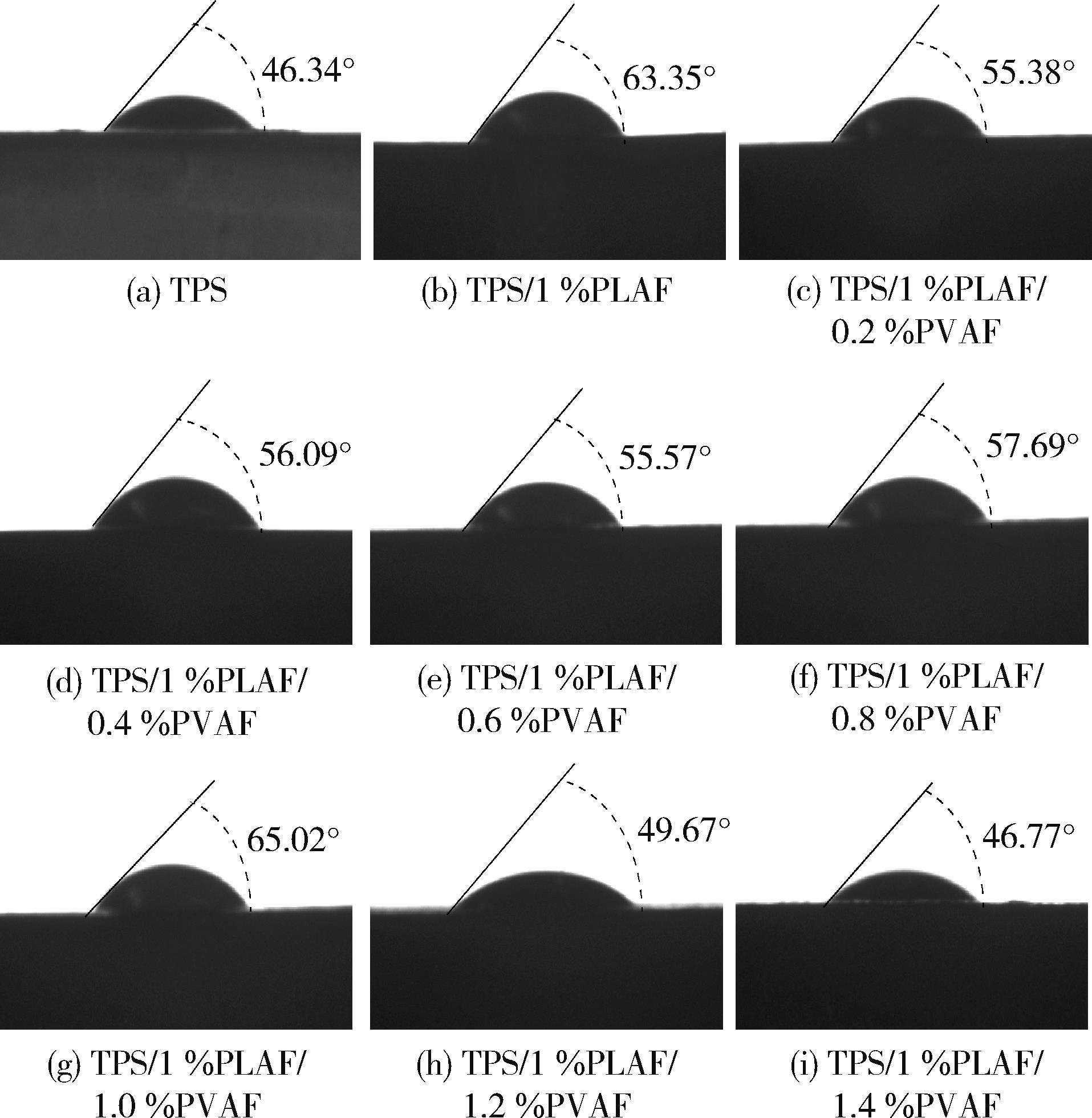

Fig.3. Water contact angle of TPS/PLAF/PVAF with different PVAF contents

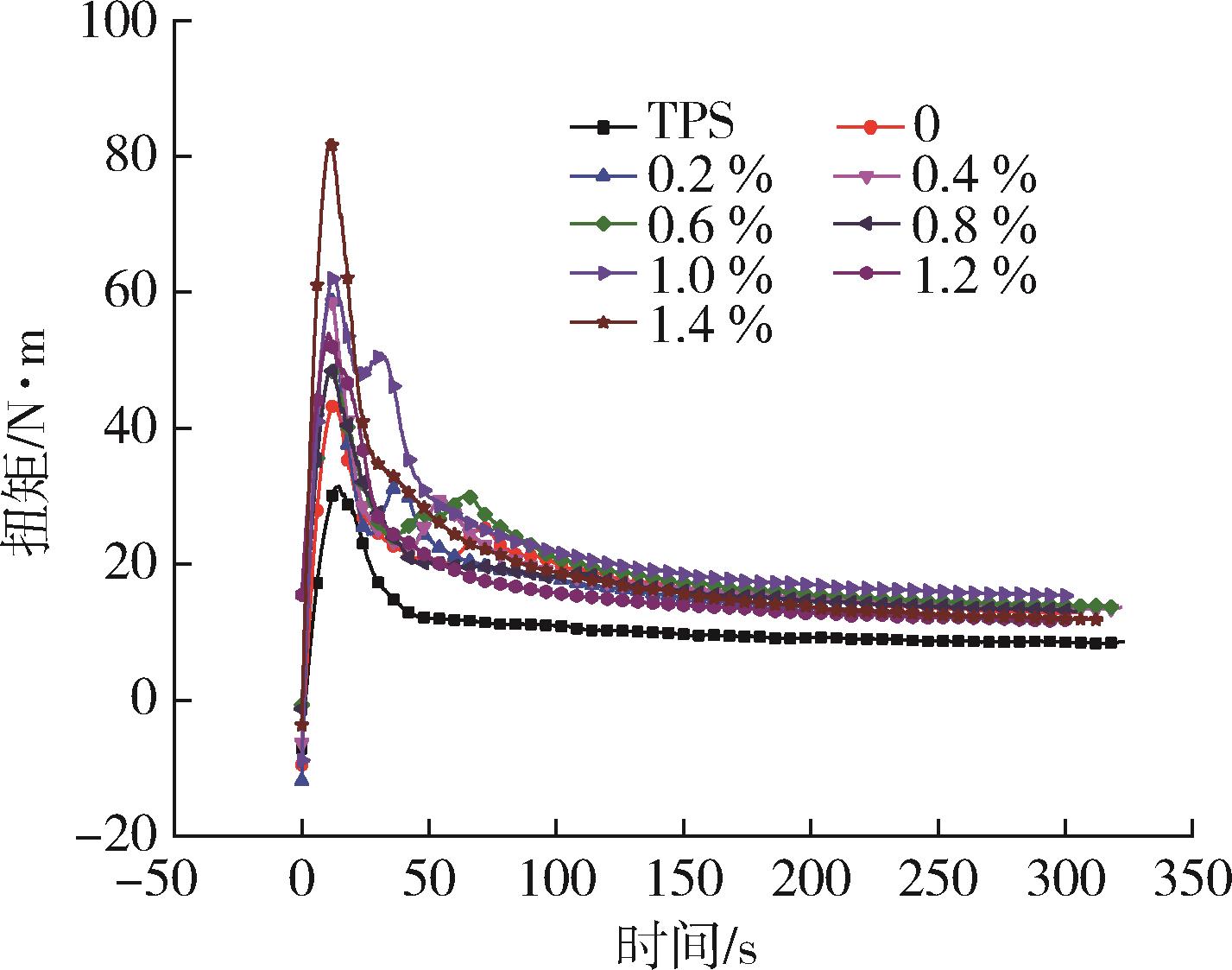

Fig.4. Rheological curves of TPS/PLAF/PVAF composites with different PVAF contents

PVAF含量/%	初始扭矩/N·m	扭矩峰值/N·m	平衡扭矩/N·m
TPS	-7.19	31.22	8.57
0	-9.04	43.39	13.18
0.2	-11.34	58.61	12.24
0.4	-6.24	58.37	13.44
0.6	-0.15	48.32	14.13
0.8	-1.11	48.55	13.44
1.0	-8.35	61.18	15.75
1.2	15.70	53.22	12.25
1.4	-3.14	82.24	12.24

Tab.1. Rheological data of TPS/PLAF/PVAF composites with different PVAF contents

References 17

1	MOHANTY A K， VIVEKANANDHAN S， PIN J M， et al. Composites from renewable and sustainable resources： Challenges and innovations［J］. Science， 2018， 362： 536⁃542.
2	HILLMYER M A. The promise of plastics from plants［J］. Science， 2017， 358： 868⁃870.
3	查东东，郭斌，李本刚，等. 热塑性淀粉耐水性的化学与物理作用机制［J］. 化学进展， 2019， 31（1）： 156⁃166.
	ZHA D D， GUO B， LI B G， et al. Chemical and physical mechanism of water resistance for thermoplastic starch［J］. Progress in Chemistry， 2019，31（1）： 156⁃166.
4	查东东，周文，郭斌，等.热塑性淀粉力学性能的提升途径及作用机理［J］，化学进展，2019， 31（7）： 1 042⁃1 053.
	ZHA D D， ZHOU W， GUO B， et al. Ways and mechanism of improving the mechanical properties of thermoplastic starch［J］， Progress in Chemistry，2019，31（7）： 1 044⁃1 055.
5	唐皞，郭斌，李本刚，等. 热塑性淀粉的增强研究进展［J］. 塑料工业， 2013， 41（1）： 1⁃8.
	TANG H， GUO B， LI B G， et al. Study on reinforcement of thermoplastic starch［J］. China Plastics Industry， 2013， 41（1）： 1⁃8.
6	GUO B WANG L J， YIN P， et al. Ultra⁃high molecular weight polyethylene fiber⁃reinforced thermoplastic corn starch composite［J］. Journal of Thermoplastic Composite Materials， 2017， 30 （4）： 564⁃577.
7	FERRI J M， GARCIA⁃GARCIA D， SANCHEZ ⁃NACHER L， et al. The effect of maleinized linseed oil （MLO） on mechanical performance of poly（lactic acid）⁃thermoplastic starch （PLA⁃TPS） blends［J］. Carbohydrate Polymers， 2016， 147： 60⁃68.
8	AKRAMI M， GHASEMI I， AZIZI H， et al. A new approach in compatibilization of the poly（lactic acid）/thermoplastic starch （PLA/TPS） blends［J］. Carbohydrate Polymers， 2016， 144： 254⁃262.
9	MULLER P， BERE J， FEKETE E， et al. Interactions， structure and properties in PLA/plasticized starch blends［J］. Polymer， 2016， 103： 9⁃18.
10	SZADKOWSKA A， JEZIORSKA R， ZUBROWSKA M， et al. Effect of plasticizer with silanol groups on the structure and properties of polylactide and thermoplastic corn starch blend［J］. Polimery， 2016， 61（10）： 683⁃692.
11	RODRIGUES C A， TOFANELLO A， NANTES I L， et al. Biological oxidative mechanisms for degradation of poly（lactic acid） blended with thermoplastic starch［J］. ACS Sustainable Chemistry & Engineering， 2015， 3（11）： 2 756⁃2 766.
12	SREEKUMAR P A， Al⁃HARTHI M A， DE S K. Stu⁃dies on compatibility of biodegradable starch/polyvinyl alcohol blends［J］. Polymer Engineering and Science， 2012， 52（10）：2 167⁃2 172.
13	MITTAL A， GARG S， KOHLI D， et al. Effect of cross linking of PVA/starch and reinforcement of modified barley husk on the properties of composite films［J］. Carbohydrate Polymers， 2016， 151： 926⁃938.
14	JIANG L， LIU B， ZHANG J. Novel high⁃strength thermoplastic starch reinforced by in situ poly（lactic acid） fibrillation［J］. Macromolecular Materials and Engineering， 2009， 294（5）： 301⁃305.
15	JURGITA S， ERIKA A， RIMYYDAS M， et al. Formation of poly（vinyl alcohol）/cationic starch blend nanofibres via the electrospinning technique： The influence of different factors［J］. Fibres & Textiles in Eastern Europe， 2012， 92（3）：16⁃20.
16	郭斌，查东东，薛灿，等. 聚乳酸纤维对热塑性淀粉塑料性能的影响［J］. 功能高分子学报， 2018， 31（3）：261⁃266.
	GUO B， ZHA D D， XUE C， et al. Effect of polylactic acid fiber on the properties of thermoplastic starch plastics［J］. Journal of Functional Polymers， 2018， 31（3）：261⁃266.
17	唐皞，姜海天，王礼建，等. 聚乙烯醇纤维增强热塑性淀粉塑料的研究［J］.塑料工业，2013，41（9）：110⁃113.
	TANG G， JIANG H T， WANG L J， et al. Study on the polyvinyl alcohol fiber reinforced thermoplastic starch［J］. China Plastics Industry， 2013，41（9）：110⁃113.
