Study on Preparation and Performance of Polyethylene Flash Non-woven Fabrics

doi:10.19491/j.issn.1001-9278.2021.02.007

Abstract

Abstract:

The development of new shoe uppers is of great significance for improving the wearing comfort and product aesthetics. In this work， we report an investigation on the preparation of polyethylene non-woven fabrics by a flash evaporation method using high-density polyethylene resins with different melt flow indexes and a mixture of difluorochloromethane and tetrafluorodichloroethane as a solvent. The morphology， contact angle， specific surface area， breaking strength and breaking elongation， thermal properties， air permeability and water resistance of the obtained woven fabrics were characterized by using of scanning electron microscope， dynamic contact angle measuring instrument， automatic specific surface area and aperture analysis tester， differential scanning calorimeter， thermogravimetric analyzer， electronic strength machine and digital air permeability meter. The results indicated that all of the non-woven fabrics were constituted with pure polyethylene ultra-fine fibers with an average monofilament diameter of 4 μm， and they achieved maximum tensile break strength of 220 N/5 cm. Such non?woven fabrics exhibited good air permeability， hydrophobicity and ink wettability. This type of non-woven fabrics exhibits a promising prospect for applications in novel shoe upper materials.

Key words: flash evaporation method, polyethylene non-woven fabric, shoe upper material

CLC Number:

TQ325.1⁺2

LI Lei, ZHU Qianqin, XIA Yunxia, ZHANG Junfeng, HE Lijun. Study on Preparation and Performance of Polyethylene Flash Non-woven Fabrics[J]. China Plastics, 2021, 35(2): 41-45.

Figures/Tables 6

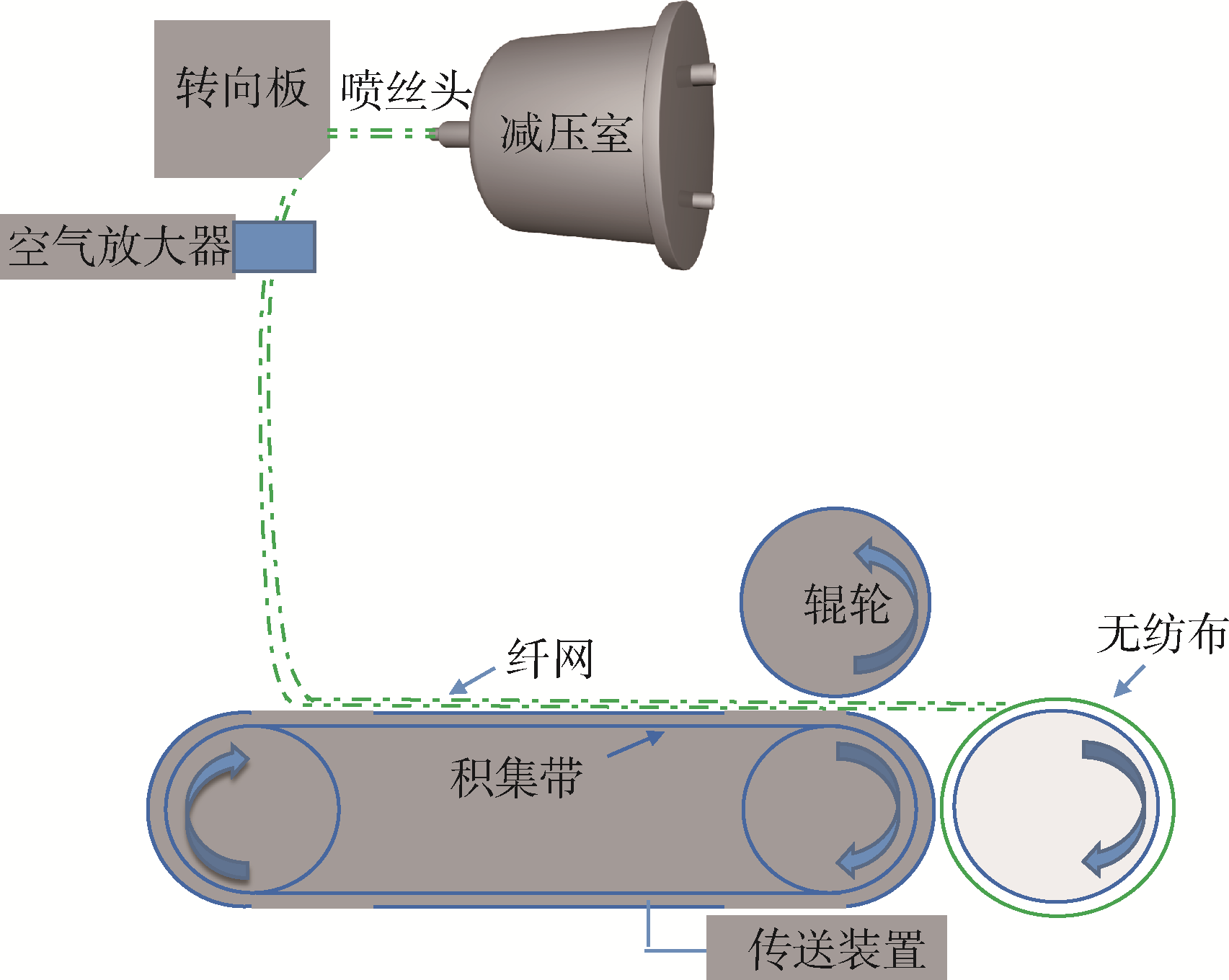

Fig.1. Schematic diagram of non?woven fabric prepared by flash pressure release spinning

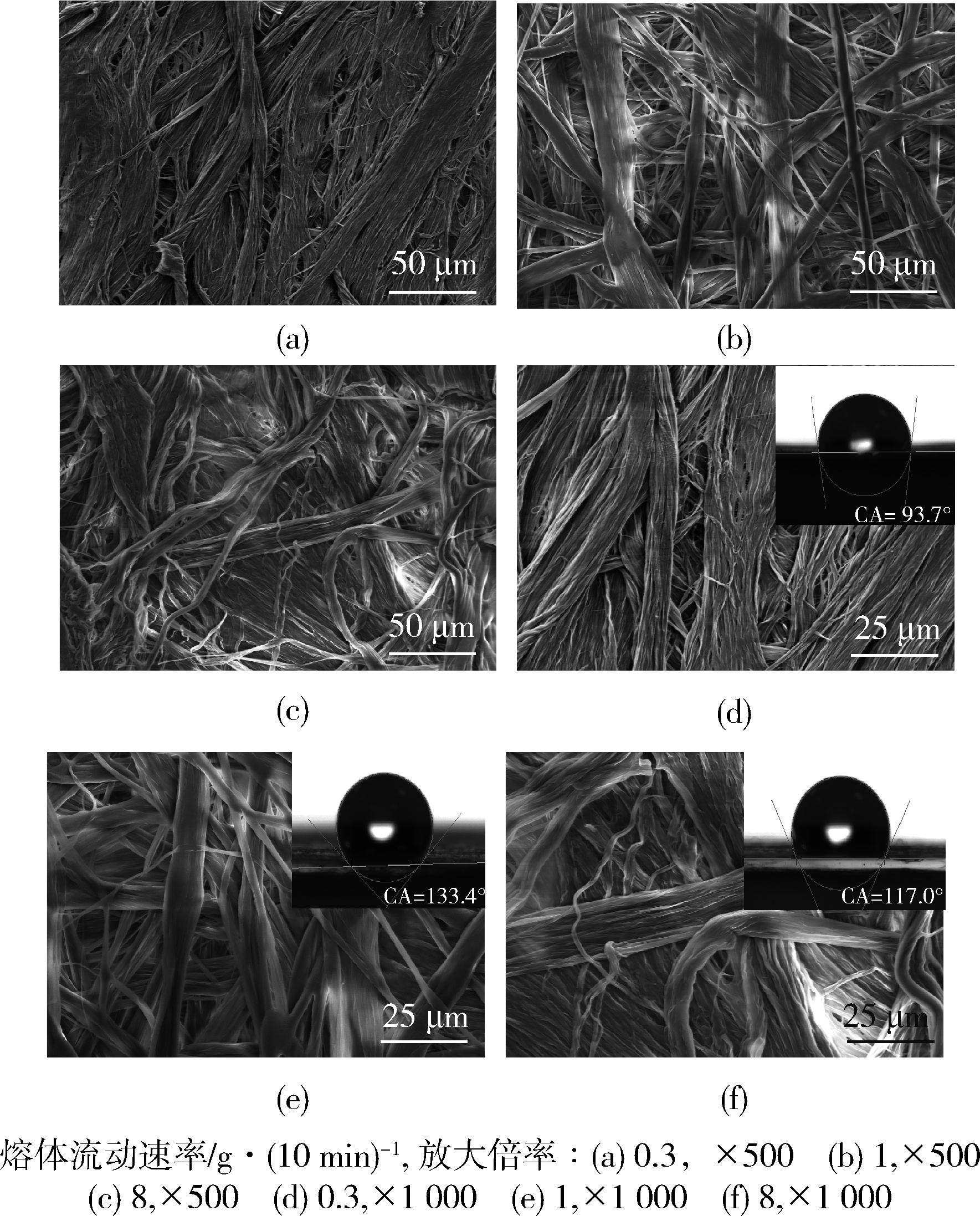

Fig.2. SEM and inset digital images of polyethylene non?woven fabric made with different melt flow rate

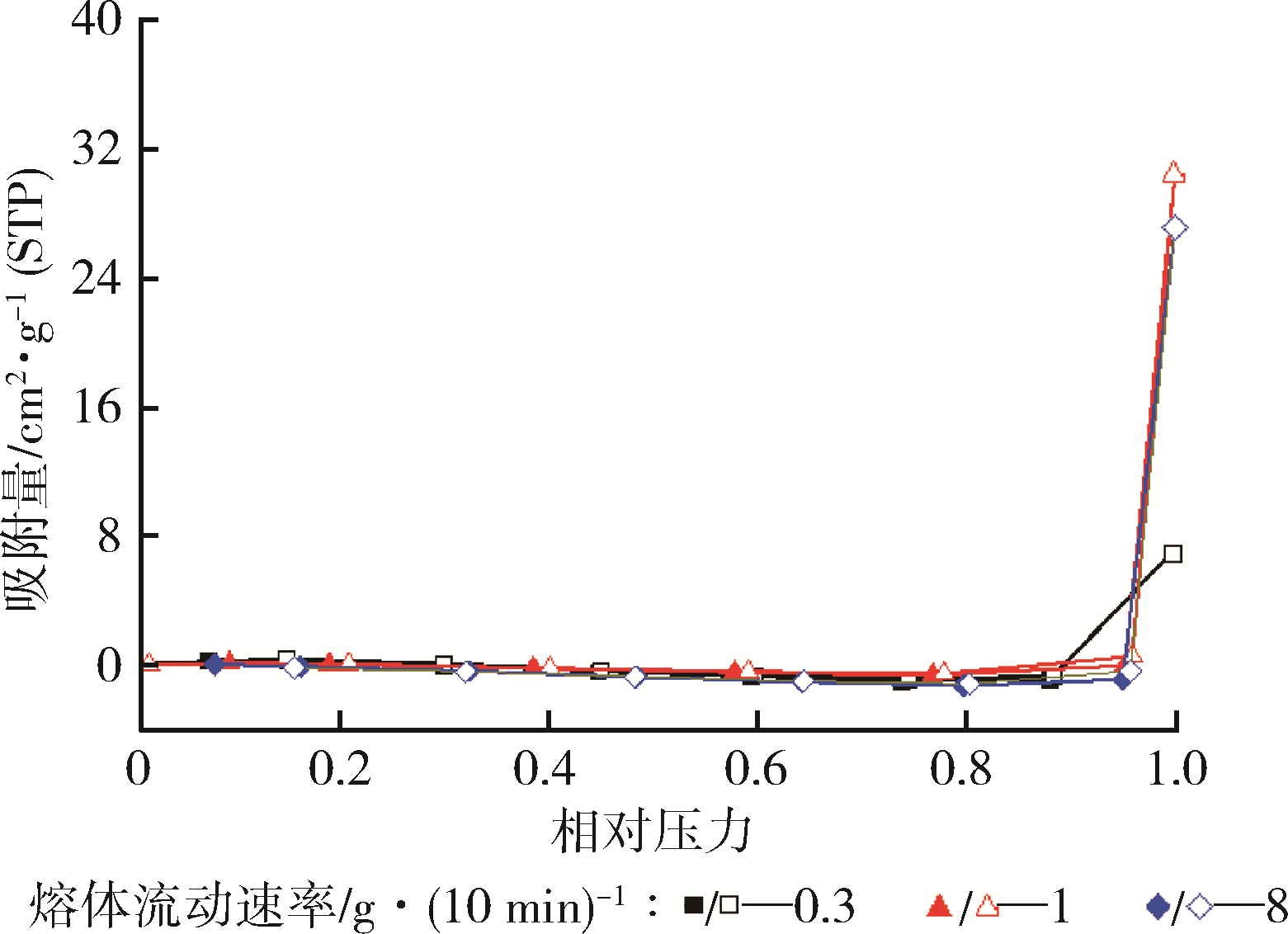

Fig.3. Nitrogen gas adsorption/desorption isotherm curves of polyethylene non?woven fabric

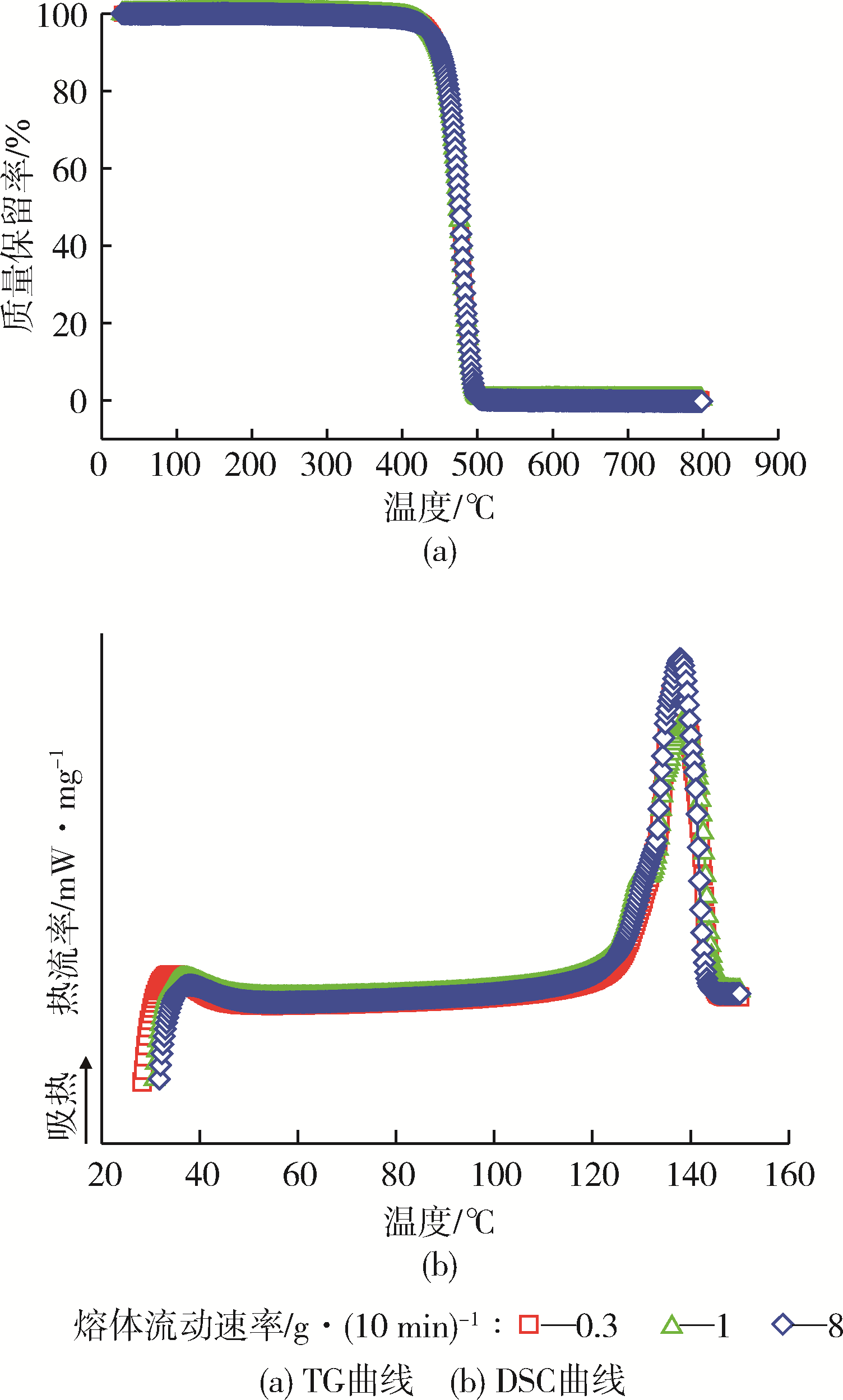

Fig.4. TG and DSC curves of polyethylene non?woven fabric

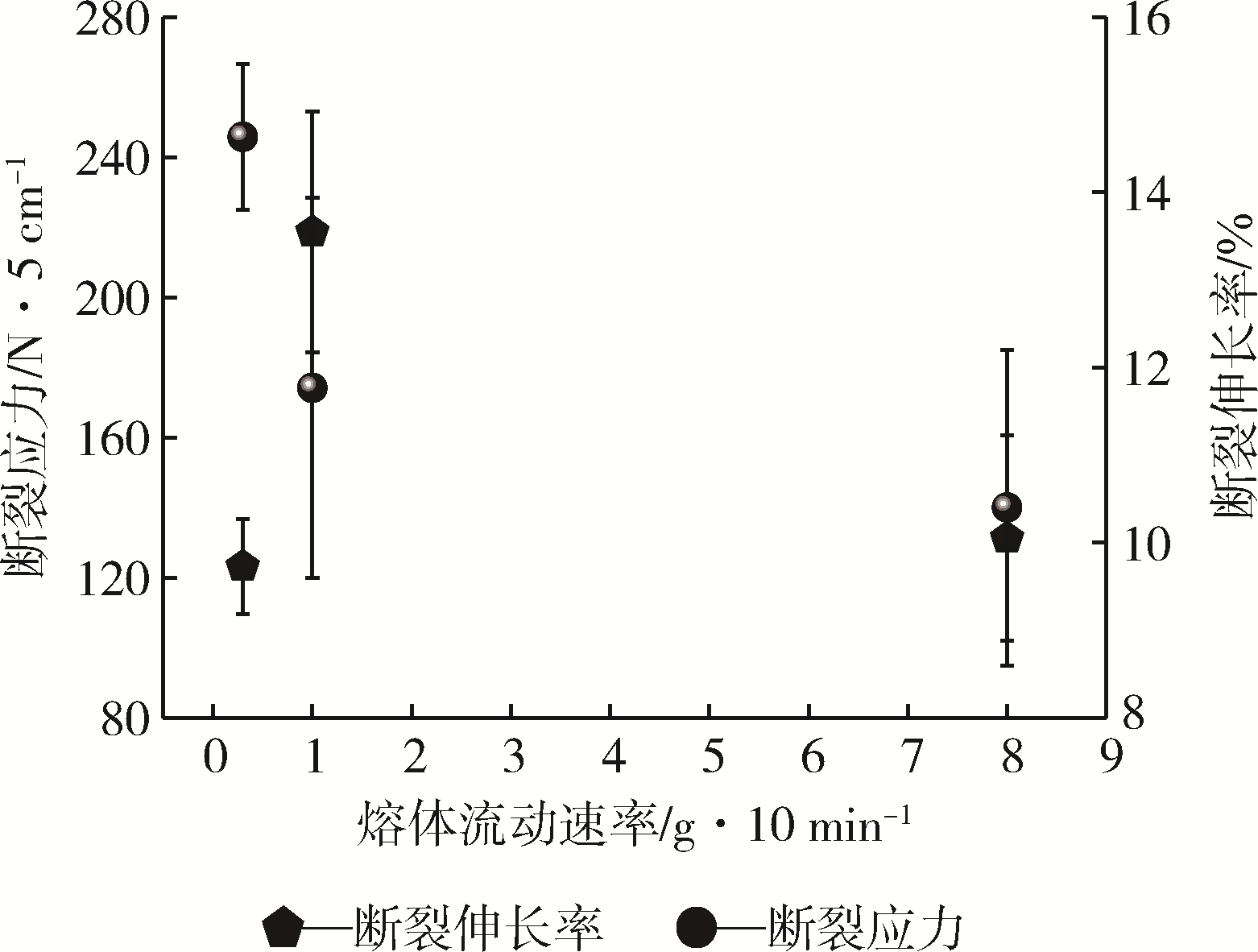

Fig.5. The tensile strength and elongation at break of the non?woven fabrics

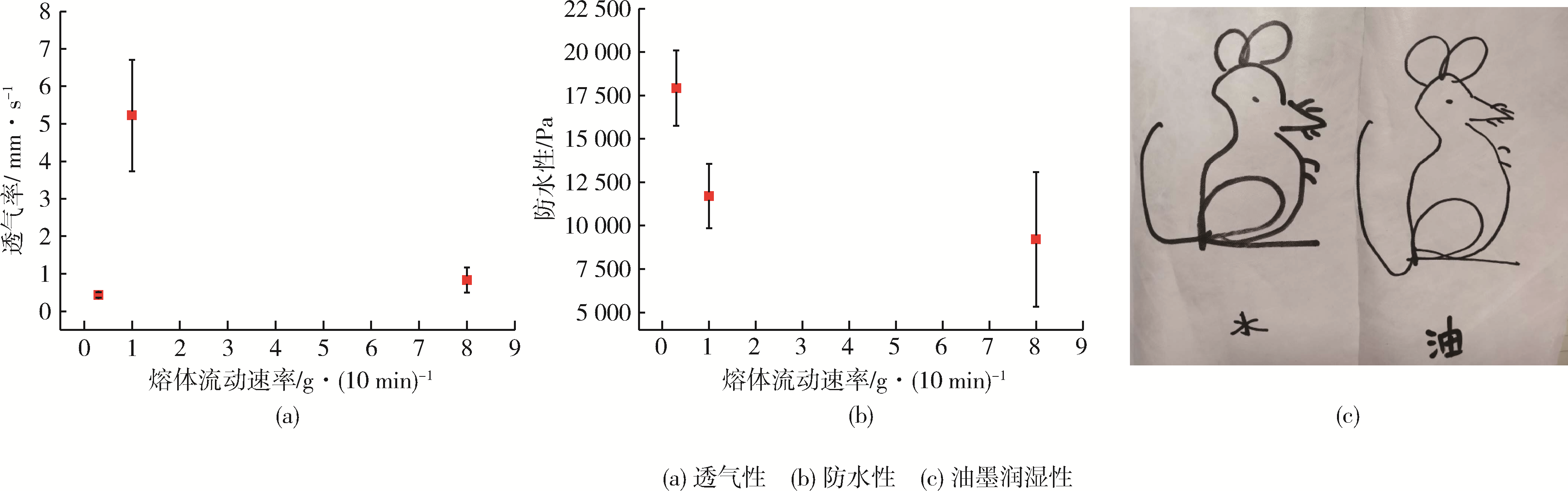

Fig.6. Air permeability, water resistance and ink wettability of the non?woven fabrics

References 10

1	梁越，刘春玲，冼启华. 闪蒸纺超细纤维非织造布研究及其应用［J］. 福建轻纺， 2010，（7）：29⁃31.
	LIANG Y， LIU C L， XIAN Q H. Research and Application of Flash Spinning Superfine Fiber Non⁃Woven Fabrics ［J］. The Light & Textile Industries of Fujian，2010（7）：29⁃31
2	王勃，王建营，孙家跃，等. 闪蒸法聚乙烯无纺布的研究进展［J］. 化工时刊， 2002， 16（9）：12⁃15.
	WANG B， WANG J Y， SUN J Y， et al. Progress on Flash⁃Spun Polyethylene Nonwovens［J］. Chemical Industry Times， 2002， 16（9）：12⁃15.
3	任元林，程博闻. 闪蒸非织造布工艺研究及应用的进展［J］. 产业用纺织品， 2006， 24（2）：1⁃4，14.
	REN Y L， CHENG B W. Evolvement of Study of Manufacturing Process and Application of Flash Spinning Nonwovens［J］. Technical Textiles， 2006， 24（2）：1⁃4，14.
4	LIM H S， LARRY R M， NOBBEE W， et， al. US： Flash⁃spun Sheet Material. 6 034 008 ［P］. 2000.
5	孙晓慧，郭秉臣. 闪蒸法非织造布的生产与应用前景［J］. 非织造布， 2006， 14（6）：8⁃11.
	SUN X H， GUO B C. Development and Application Foreground of Flash Nonwovens［J］. Nonwovens， 2006， 14（6）：8⁃11.
6	SHIN H S， ROGER K， DENG， N L. US： Flash Spinning Srocess and Flash Spinning Solution with Azeotropes， 6 319 970 ［P］. 2001.
7	SHIN H， TUMINELLO W H. US： Fibers Flash⁃Spun from Fully Halogenated Polymers. 6 218 460 ［P］. 2001.
8	HERBERT B， RUSHTON W J. US： Process for Producing Molecularly Oriented Structures by Extrusion of a Polymer Solution. 3 227 784 ［P］. 1966.
9	张博. 液滴润湿行为与表面微纳结构关系的模拟研究［D］. 北京化工大学. 2016.
10	桂祖桐. 聚乙烯树脂及其应用［M］. 北京：化学工业出版社， 2002： 75⁃83.
