Effect of sodium dodecyl sulfate surface⁃modified hydrotalcite on thermal stability of PVC

doi:10.19491/j.issn.1001-9278.2024.02.013

Abstract

Abstract:

Sodium dodecyl sulfate （SDS） was used to modify magnesium⁃aluminum⁃lanthanum carbonate hydrotalcite （LDHs）， and the effect of different modification conditions on the static thermal stability of poly（vinyl⁃chloride）（PVC） was investigated.The molecular structures of modified PVC samples were characterized by using X⁃ray diffractometry， scanning electron microscopy， and infrared spectroscopy. The thermal stabilities of the PVC samples with modified and unmodified LDHs were evaluated by means of Congo red test paper method， thermal aging oven method， torque rheometer， and thermogravimetric analysis. The results indicated the modification effect was best at a constant pH value of 7 and a mass ratio of SDS to LDHs of 1/10 in a water bath at 80 ℃ for 3 h. SDS did not change the crystal structure of hydrotalcite but was only adsorbed on the surface of LDHs， which enhanced its compatibility with PVC. The static and dynamic thermal stability times of the PVC/LDHs samples using the LDHs modified SDS for 65 and 28.5 min， respectively. Meanwhile， the later coloring of PVC samples was improved to make plasticize and form more easily. The temperature corresponding to the maximum weight loss rate of the modified PVC sample was 346 ℃， which increased by 55 ℃ compared to pure PVC. This could effectively inhibit the thermal degradation of PVC.

Key words: poly（vinyl chloride）, hydrotalcite?like, surface modification

CLC Number:

TQ325.3

LI Xianming, ZHANG Ning, LI Gaihua, LIU Shuang, LIU Zhengyuan. Effect of sodium dodecyl sulfate surface⁃modified hydrotalcite on thermal stability of PVC[J]. China Plastics, 2024, 38(2): 82-86.

Figures/Tables 10

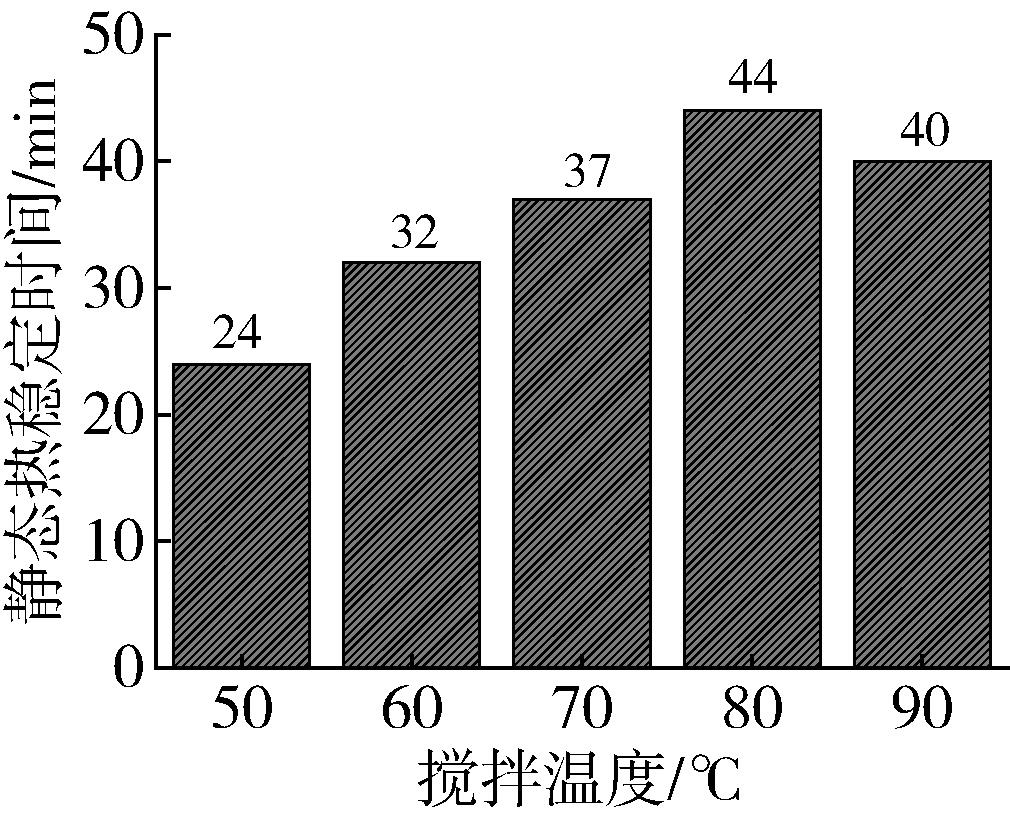

Fig.1. Static thermal stability time of PVC/modified LDHs at different stirring temperature

Fig.2. Static thermal stability time of PVC/modified LDHs under different stirring time

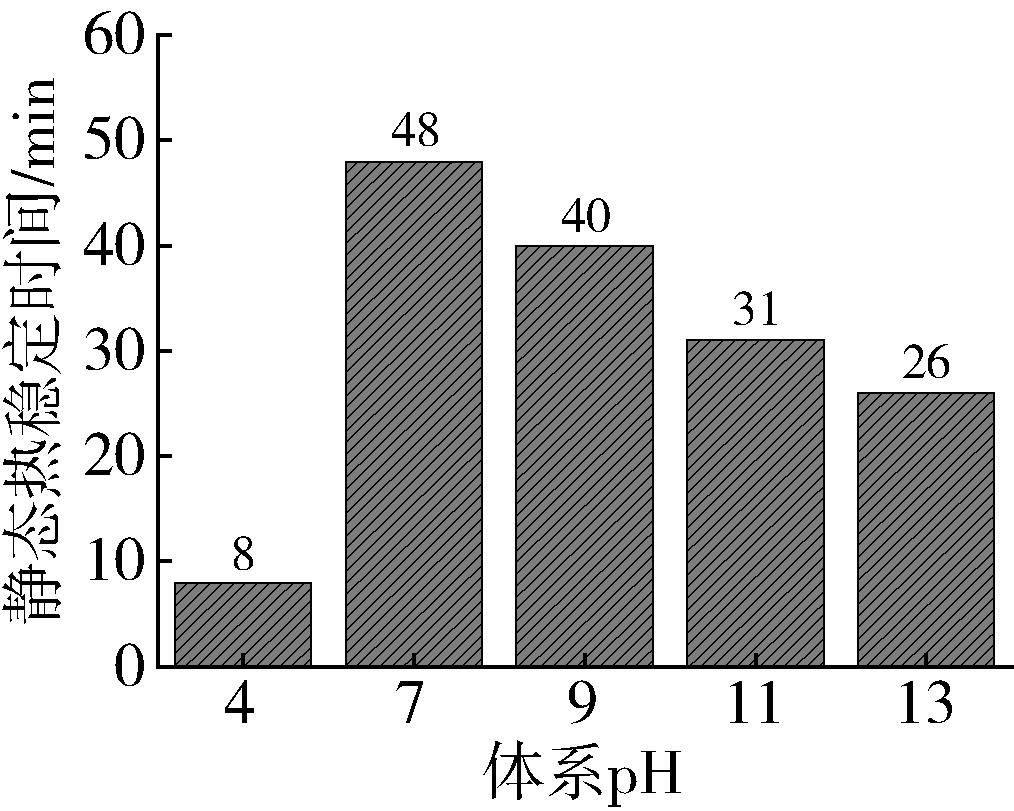

Fig.3. Static thermal stability time of PVC/modified LDHs at different pH value

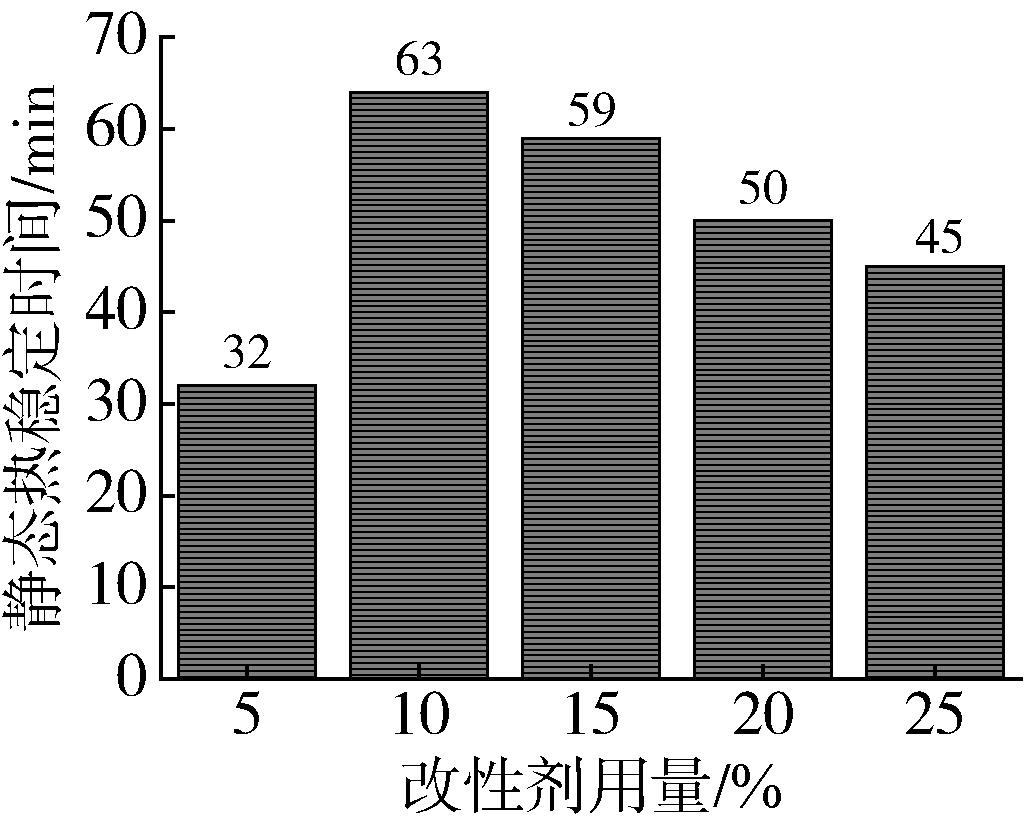

Fig.4. Static thermal stability time of PVC with different modifier dosages

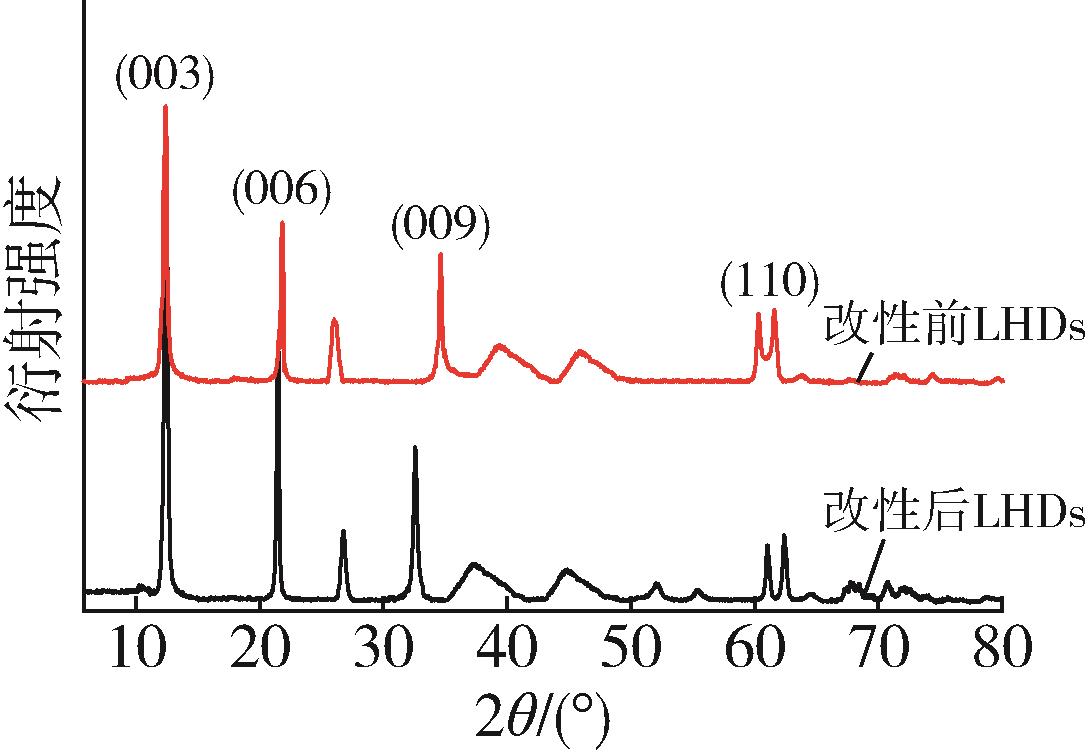

Fig.5. XRD patterns of LDHs before and after modification

Fig.6. SEM images of LDHs before and after modification

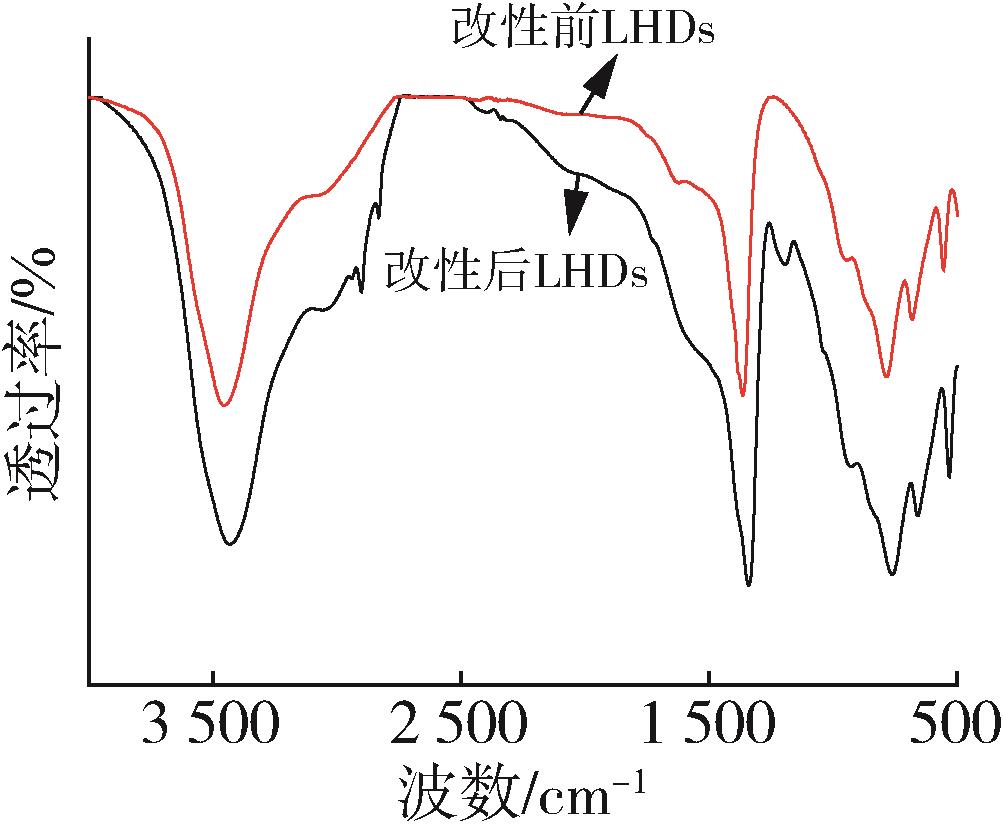

Fig.7. FTIR spectra of LDHs before and after modification

样品	热稳定时间/min	试样随加热时间的颜色变化
样品	热稳定时间/min	10 min	20 min	30 min	40 min	50 min	60 min	80 min	100 min	120 min
PVC/LDHs	27
PVC/SDS⁃LDHs	65

Tab.1. Static thermal stability of LDHs before and after modification

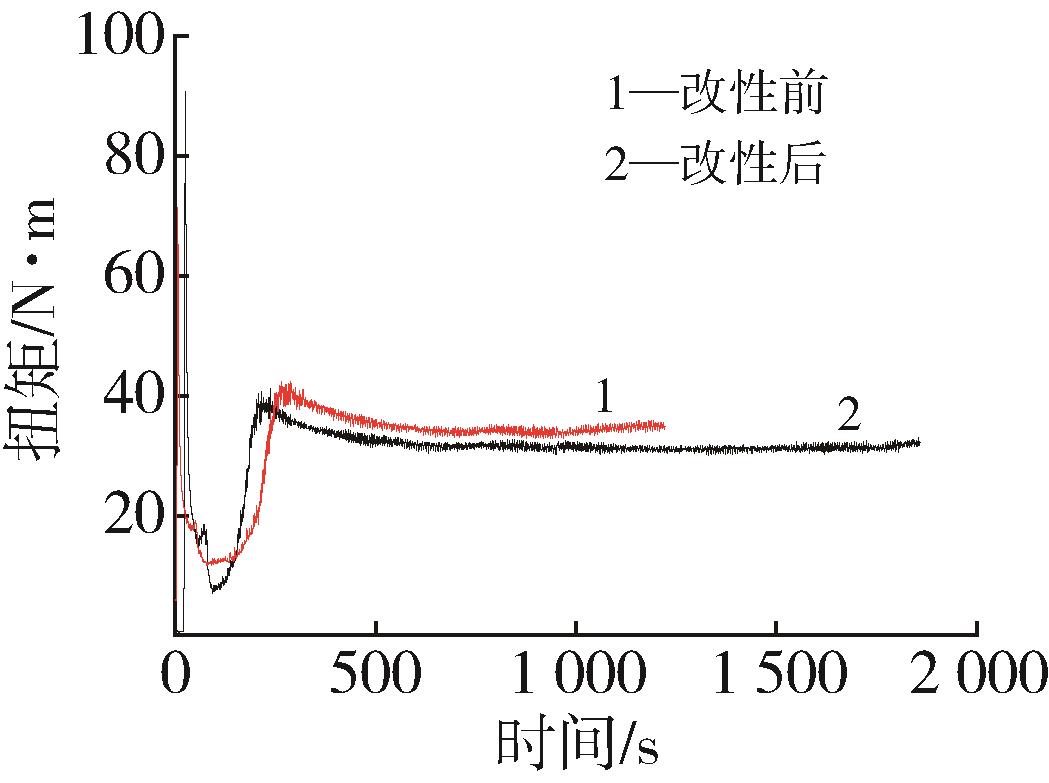

Fig.8. Torque rheological curve of LDHs before and after modification

Fig.9. TG and DTG curves of pure PVC and LDHs before and after modification

References 16

1	ZHANG H， ZHANG S， STEWART P， et al. Thermal stability and thermal aging of poly （ vinyl chloride ）/Mg Al layered double hydroxides composites［J］. Chinese Journal of Polymer Science， 2016， 34 （5）： 542⁃551．
2	沈冠华，罗业燊，赵闫华，等. 改性工艺对水滑石性能的影响研究［J］.塑料助剂， 2022，（06）： 5⁃9+25.
	SHEN G H， LUO Y S， ZHAO Y H， et al. Effect of modification process on the properties of hydrotalcites ［J］. Plastic Additives， 2022，（06）： 5⁃9+25.
3	刘兆年，王镇，辜朝辉，等. 水滑石及其在聚氯乙烯中的应用进展［J］. 塑料， 2021， 50（5）： 72⁃76.
	LIU Z N， WANG Z， GU C H， et al. Progress of hydrotalcite and its application in polyvinyl chloride ［J］.Plastics， 2021， 50（5）： 72⁃76.
4	褚之浩，杨占红，易师，等. 镁铝水滑石和镁铝铈水滑石的表面改性研究［J］. 塑料助剂， 2012，（3）： 33⁃37.
	CHU Z H， YANG Z H， YI S， et al. Study on surface modification of MgAl⁃CO₃⁃LDHs and MgAlCe⁃CO₃⁃LDHs ［J］. Plastic Additives， 2012，（3）： 33⁃37.
5	张宁. 硬脂酸插层钙／锌稀土类水滑石 PVC的热稳定作用［J］.中国塑料， 2017， 31 （10）： 99⁃104.
	ZHANG N. Study on thermal stability of stearic acid intercalated Ca/Zn rare⁃earth hydrotalcite⁃like in PVC ［J］. China Plastics， 2017， 31 （10）： 99⁃104.
6	张宁，李先铭. 十四烷酸插层稀土类水滑石的合成及其对PVC的热稳定作用［J］. 中国塑料， 2015， 29（06）： 93⁃97.
	ZHANG N， LI X M. Synthesis of tetradecanoic acid intercalated rare⁃earth hydrotalcite⁃like and its thermal stabilization on PVC ［J］. China Plastics， 2015， 29（06）： 93⁃97.
7	李先铭，张宁，刘征原，等.丁基锡酸根插层类水滑石的制备及在PVC中的性能研究［J］.中国塑料， 2021， 35（03）：38⁃43.
	LI X M， ZHANG N， LIU Z Y， et al. Study on synthesis and properties of butyl stannate intercalated hydrotalcite⁃like compound for PVC ［J］. China Plastics， 2021， 35（03）：38⁃43.
8	倪哲明，付晓微，薛继龙，等. 表面活性剂和硅烷偶联剂复合改性水滑石的表面性质［J］. 无机化学学报， 2012， 28（3）： 471⁃476．
	NI Z M， FU X W， XUE J L， et al. Surface characterization of layered double hydroxides by compounding modification with surfactant and silane coupling agent ［J］.Chinese Journal of Inorganic Chemistry， 2012， 28（3）： 471⁃476．
9	章琛，张鋆益，叶江涛，等.硬脂酸钠改性镁铝水滑石的制备及其对PVC热稳定性能的影响［J］. 塑料工业， 2018， 46（9）：63⁃66.
	ZHANG S， ZHANG Y Y， YE J T， et al. Modification of MgAl⁃CO₃⁃LDHs by sodium stearate and its effect on the thermal stability of PVC resin ［J］. Plastic Industry， 2018， 46（9）：63⁃66.
10	Dinari M， Neamati S.Surface modified layered double hydroxide/polyaniline nanocomposites： synthesis，characterization and Pb²⁺removal ［J］.Colloids and Surfaces A： Physicochemical and Engineering Aspects， 2020， 589： 124438.
11	黄昱臻，董银春，沈帆，等.水滑石表面改性对聚氯乙烯弹性体性能的影响［J］.现代塑料加工应用， 2018， 30（03）： 42⁃45.
	HUANG Y Z， DONG Y C， SHEN F， et al. Effect of modified hydrotalcite on soft polyvinyl chloride ［J］.Modern Plastics Processing and Applications， 2018， 30（03）： 42⁃45.
12	杨欢，杨占红. 水铝钙石的表面改性研究［J］. 塑料助剂， 2016，（02）： 29⁃31+50.
	YANG H， YANG Z H. Study on surface modification of hydroaluminite ［J］. Plastic Additives， 2016，（02）： 29⁃31+50.
13	杨文虎，刘斌，马占峰，等. 水滑石的表面改性研究［J］. 化学工业与工程， 2004， 21（05）： 331⁃333
	YANG W H， LIU B， MA Z F， et al. Study on surface modification of hydrotalcite ［J］. Chemcial Industry and Engineering， 2004， 21（05）： 331⁃333.
14	童梦良，王罗强. 改性镁铝水滑石对PVC力学性能的影响［J］. 塑料， 2016， 3（3）： 18⁃20.
	TONG M L， WANG L Q. Effect of modified Mg⁃Al⁃hydrotalcite on mechanical property of PVC ［J］.Plastics， 2016， 3（3）： 18⁃20.
15	于静，李敏贤. 哌嗪基单丁酰胺酸钙/锌的合成及对PVC热稳定性研究［J］.中国塑料， 2020， 34（7）： 74⁃79.
	YU J， LI M X. Synthesis of piperazinyl monobutyric amic acid calcium/zinc and its thermal stabilization for PVC ［J］. China Plastics， 2020， 34（7）： 74⁃79.
16	SUN Q L， SHI X G， LIN Y L， et al. Thermogravi⁃metric⁃mass spectrometric study of the pyrolysis behavior of PVC ［J］. Journal of China University of Mining & Technology， 2007， 17（2）： 100⁃103.
