Preparation and Oil Absorption Performance of Porous Polylactide/Polyurethane Composites

doi:10.19491/j.issn.1001-9278.2021.11.004

Abstract

Abstract:

A series of poly（lactic acid）（PLA）/polyurethane （TPU） blends with different phase morphologies were prepared through melt blending using PLA as a matrix and then foamed through a supercritical carbon dioxide （scCO₂） microcellular foaming process. The effects of cell structure， expansion ratio， and open?cell content on the oil absorption performance of the porous composite material at different foaming temperatures were investigated. The results indicated that with an increase in TPU content from 10 wt % to 50 wt %， there was a phase morphology from a typical “sea?island” phase morphology to the partially co?continuous one occurring in the porous composite material. Meanwhile， the viscoelasticity of the PLA matrix increased， but its crystallization ability decreased. The porous composite material containing 70 wt % PLA exhibited a more uniform cell structure. The cell size and expansion ratio increased at first and then tended to decrease with an increase in foaming temperature. The expansion ratio reached 29.1 times at the foaming temperature of 94 ℃ and the maximum open?cell content was 75 %. The addition of TPU significantly increased the elastic recovery ability of the PLA matrix. The porous composite material showed the largest compressive strength and the smallest permanent deformation at a foaming temperature of 94 °C. The oil absorption test results indicated that porous composite material exhibited a greater oil absorption rate for silicone oil than for cyclohexane. Its oil absorption rate was proportional to the product of the expansion ratio and the open?cell content， giving a maximum oil absorption rate of 10.4 g/g for silicone oil.

Key words: poly（lactic acid）, polyurethane, supercritical foaming, pore structure, oil absorption property

CLC Number:

TQ 321

XU Yunfei, ZHAO Zaisheng, XING Yajing, JIANG Jing. Preparation and Oil Absorption Performance of Porous Polylactide/Polyurethane Composites[J]. China Plastics, 2021, 35(11): 24-31.

Figures/Tables 10

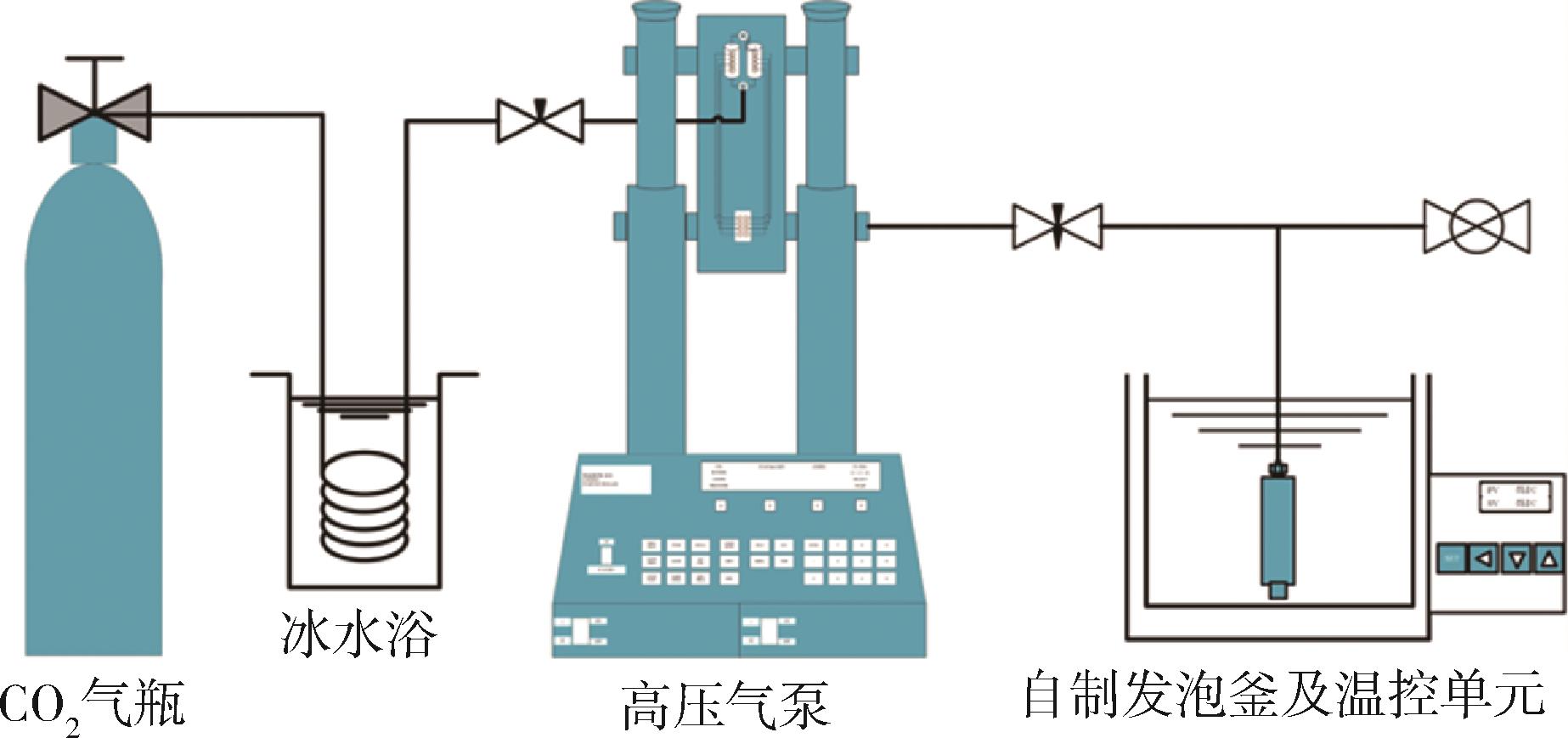

Fig.1. Schematic diagram of scCO2 microcellular foaming experimental equipment

Fig.2. SEM images of the fracture surface of solid PLA/TPU blends

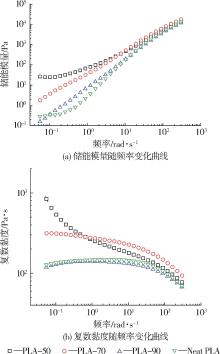

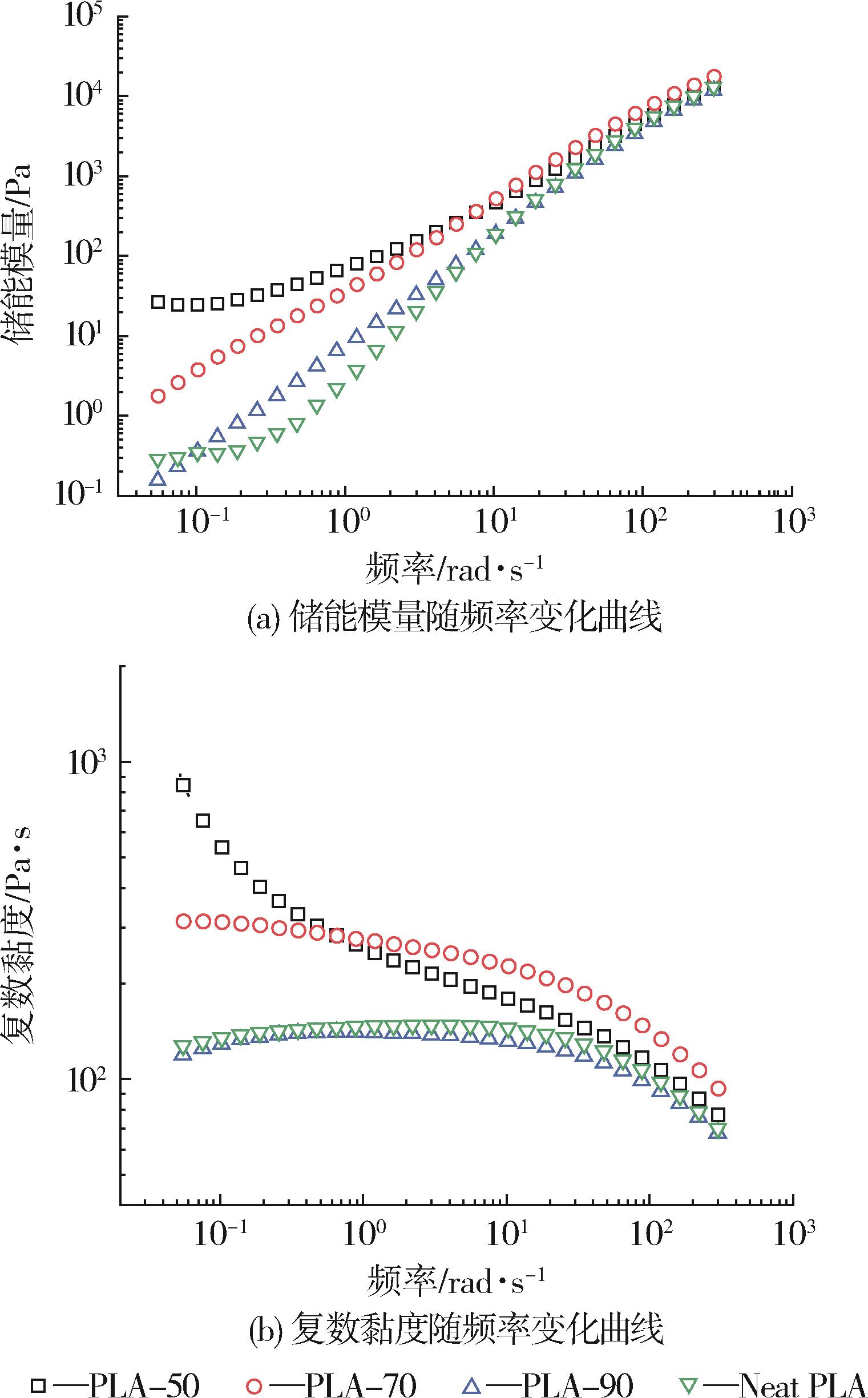

Fig.3. Rheological results of dynamic frequency sweep for PLA/TPU blends

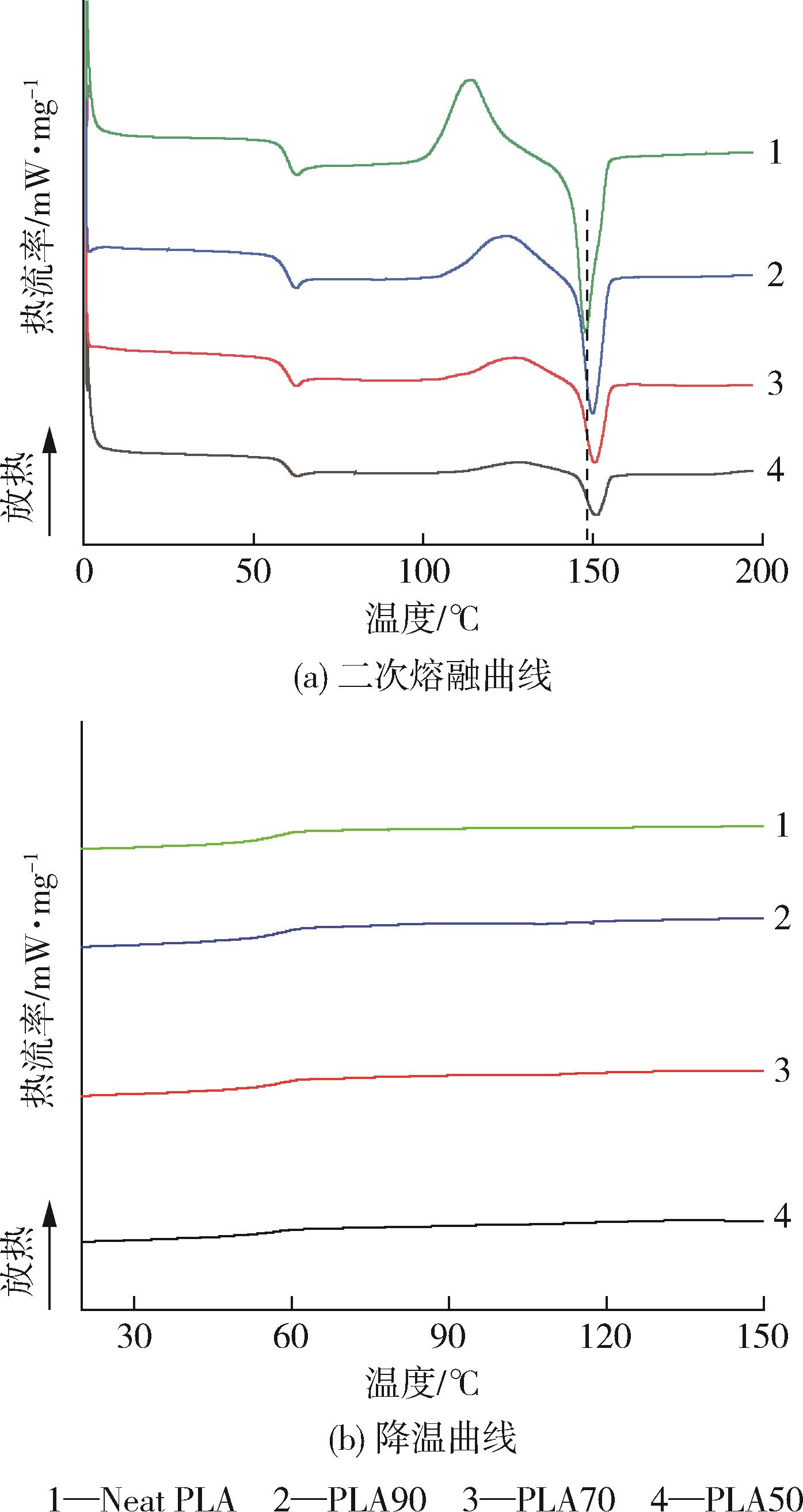

Fig.4. 2nd heating DSC curve and cooling curve of PLA/TPU blends

样品	T_g/℃	T_cc/℃	T_m/℃	?H_m/ J?g^?1	?H_c/ J?g^?1	?H_c^*/ J?g^?1
Neat PLA	62.8	114.1	147.9	26.3	12.9	12.9
PLA90	62.5	124.8	150.1	21.2	12.5	14.0
PLA70	62.5	127.1	150.7	9.5	9.6	13.8
PLA50	62.7	128.3	151.1	5.5	6.5	13.0

Tab.1. DSC analysis data for PLA/TPU blends

Fig.5. Effect of components on pore morphologies of PLA/TPU microcellular samples

Fig.6. Effect of foaming temperature on pore morphologies of PLA/TPU microcellular samples

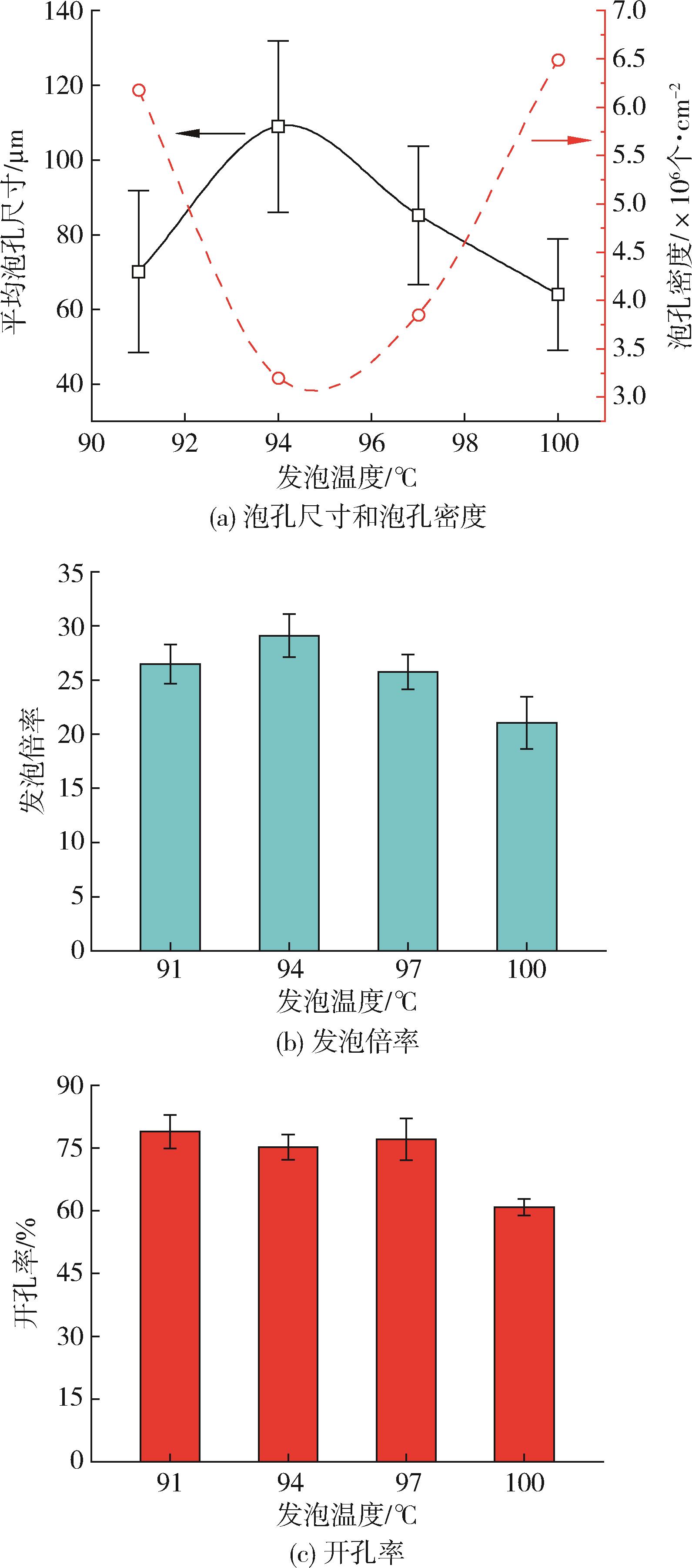

Fig.7. Statistics of pore structures for foamed PLA/TPU samples

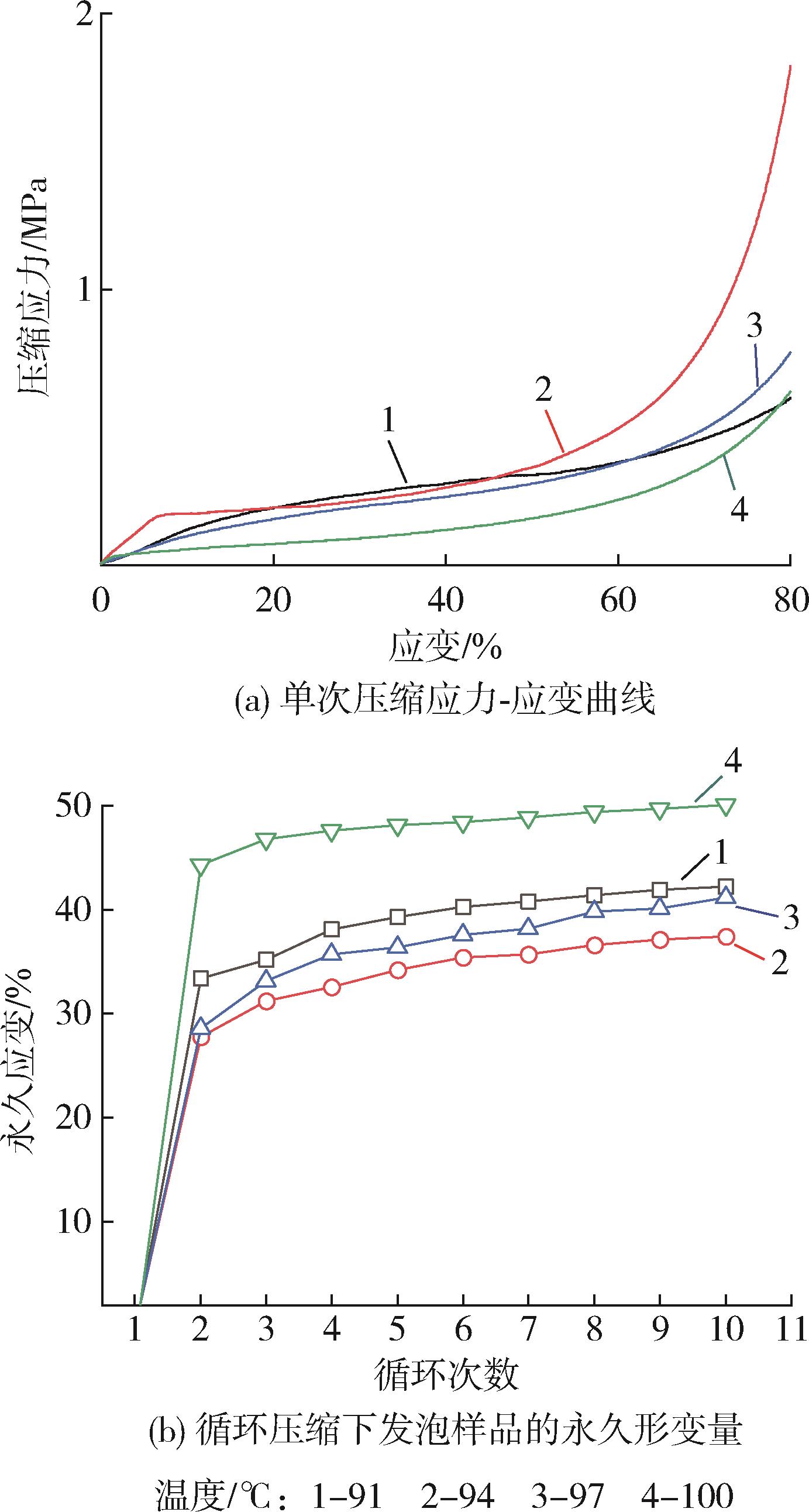

Fig.8. Comparison tests of foamed PLA/TPU samples

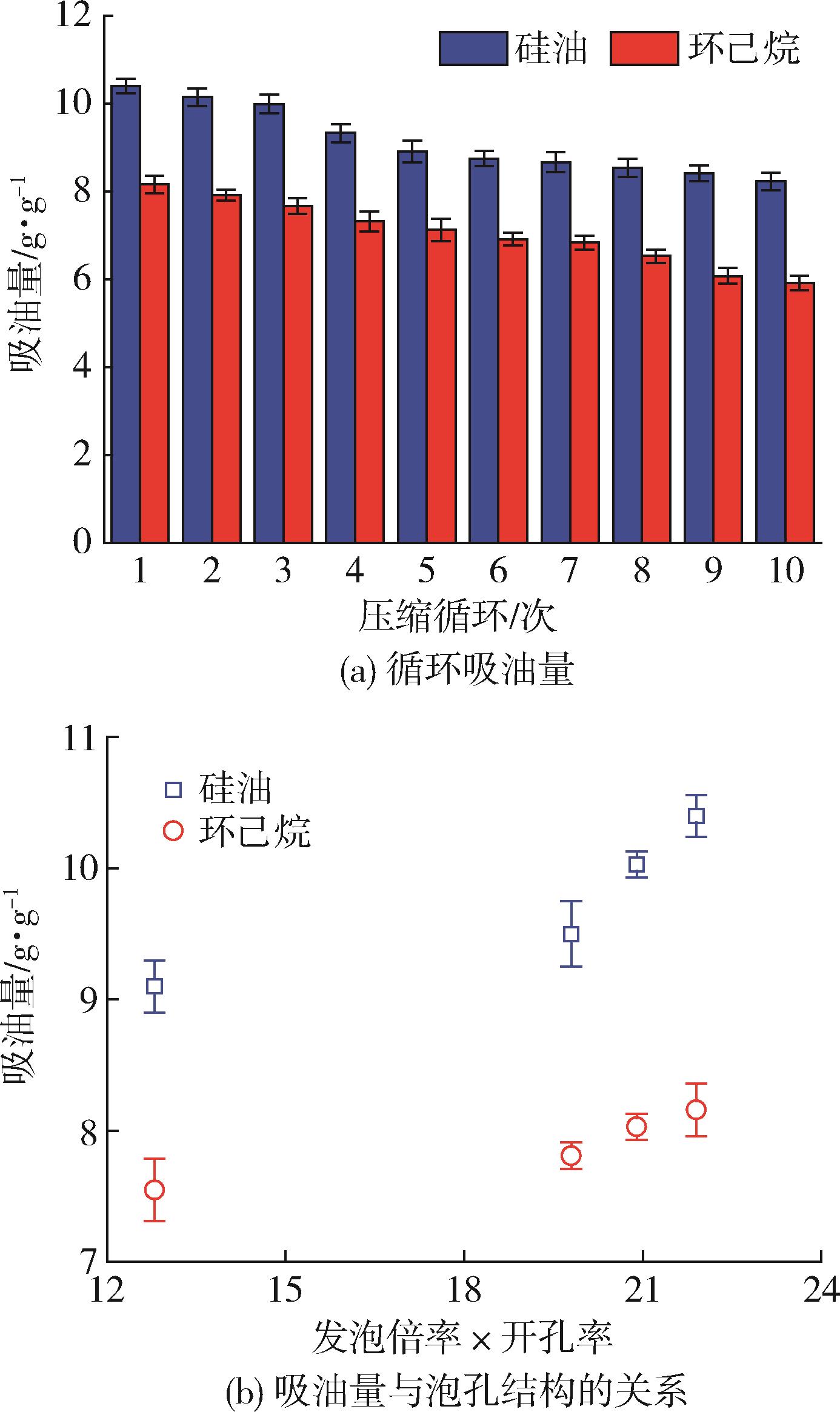

Fig.9. Oil absorption of foamed PLA/TPU samples

References 30

1	SUN L， RUAN J， LU M， et al. Combined Effects of Ocean Acidification and Crude Oil Pollution on Tissue Damage and Lipid Metabolism in Embryo⁃larval Development of Marine Medaka （Oryzias melastigma）［J］. Environmental Geochemistry and Health， 2018： 1⁃14.
2	KOSHLAF E ， SHAHSAVARI E ， ABURTO⁃MEDINA A ， et al. Bioremediation Potential of Diesel⁃contaminated Libyan Soil［J］. Ecotoxicology & Environmental Safety， 2016， 133：297⁃305.
3	GUAN Y， CHENG F， PAN Z. Superwetting Polymeric Three Dimensional （3D） Porous Materials for Oil/Water Separation： A Review［J］. Polymers， 2019， 11（5）： 806.
4	冯莲，本德萍，匡坤斌，等. 聚乳酸吸油材料改性方法研究现状［J］. 纺织科技进展， 2020 （3）： 1⁃4.
	FENG L， BEN D P， KUANG K B， et al. Research Status of Modification Methods of Polylactic Acid Oil Absor⁃bing Materials［J］. Progress in Textile Science & Technology， 2020 （3）： 1⁃4.
5	刘伟，崔升，李建平，等. 气凝胶吸油材料的研究进展［J］. 材料导报， 2020， 34（9）： 9 019⁃9 027.
	LIU W， CUI S， LI J P， et al. Recent Advances of Aerogels Based Oil Adsorption Materials［J］. Materials Review， 2020， 34（9）： 9 019⁃9 027.
6	JUNAIDI N F， OTHMAN N H， FUZIL N S， et al. Recent Development of Graphene Oxide⁃based Membranes for Oil–water Separation： A review［J］. Separation and Purification Technology， 2020： 118000.
7	SHI Y， WANG B， Ye S， et al. Magnetic， Superelastic and Superhydrophobic Porous Thermoplastic Polyurethane Monolith with Nano⁃Fe3O4 Coating for Highly Selective and Easy⁃recycling Oil/water Separation［J］. Applied Surface Science， 2021， 535： 147690.
8	MI HY， JING X， POLITOWICZ A L， et al. Highly Compressible Ultra⁃light Anisotropic Cellulose/graphene Aerogel Fabricated by Bidirectional Freeze drying for Selective Oil Absorption， Carbon， 2018， 132： 199⁃209.
9	程博，齐暑华，吴波，等. 超临界 CO₂发泡微孔塑料的研究进展［J］. 中国塑料， 2010 （12）： 14⁃20.
	CHENG B， QI S H， WU B， et al. Study Progess of Microcellular Plastics Foamed by Supercritical CO₂［J］. China Plastics， 2010 （12）： 14⁃20.
10	TOMASKO D L， LI H， LIU D， et al. A Review of CO₂ Applications in the Processing of Polymers［J］. Industrial & Engineering Chemistry Research， 2003， 42（25）： 6 431⁃6 456.
11	KONG W， BAO J B， WANG J， et al. Preparation of Open⁃cell Polymer Foams by CO2 Assisted Foaming of Polymer Blends［J］. Polymer， 2016， 90： 331⁃341.
12	HOU J， JIANG J， GUO H， et al. Fabrication of Fibrillated and Interconnected Porous Poly （ε⁃caprolactone） Vascular Tissue Engineering Scaffolds by Microcellular Foaming and Polymer Leaching［J］. RSC Advances， 2020， 10（17）： 10 055⁃10 066.
13	GUO H， JIANG J， LI Z， et al. Solid⁃State Supercritical CO₂ Foaming of PCL/PLGA Blends： Cell Opening and Compression Behavior［J］. Journal of Polymers and the Environment， 2020， 28（7）： 1 880⁃1 892.
14	李子辉，蒋晶，金章勇，等. 生物可降解 PCL/PLA 开孔发泡材料制备及吸油性能［J］. 化工学报， 2020， 71（12）： 5 842⁃5 853.
	LI Z H， JIANG J， JIN Z Y， et al. Preparation and Oil Absorption Performance of Biodegradable PCL/PLA Open⁃cell Foam Material［J］. CIESC Journal， 2020， 71（12）： 5 842⁃5 853.
15	BHARDWAJ R， MOHANTY A K. Advances in the Properties of Polylactides Based Materials： A Review［J］. Journal of Biobased Materials and Bioenergy， 2007， 1（2）： 191⁃209.
16	魏诗艺，唐韵韬，柴晨泽，等. 聚乳酸开孔材料研究进展［J］. 中国塑料， 2020， 34（10）： 100.
	WEI S Y， TANG Y T， CHAI C Z， et al. Research Progress in Poly（lactic acid）Open⁃Cell Materials［J］. China Plastics， 2020， 34（10）： 100.
17	ZHANG K， WANG Y， JIANG J， et al. Fabrication of Highly Interconnected Porous Poly （ɛ⁃caprolactone） Scaffolds with Supercritical CO2 Foaming and Polymer Leaching［J］. Journal of Materials Science， 2019， 54（6）： 5 112⁃5 126.
18	QIAO Y， LI Q， JALALI A， et al. In⁃situ Microfibrillated Poly （ε⁃caprolactone）/Poly （lactic acid） Composites with Enhanced Rheological Properties， Crystallization Kinetics and Foaming Ability［J］. Composites Part B： Enginee⁃ring， 2021， 208： 108594.
19	KUANG T， LI K， CHEN B， et al. Poly （propylene carbonate）⁃based in Situ Nanofibrillar Biocomposites with Enhanced Miscibility， Dynamic Mechanical Properties， Rheological Behavior and Extrusion Foaming Ability［J］. Composites Part B： Engineering， 2017， 123： 112⁃123.
20	袁洪跃，金章勇，蒋晶，等. 聚丙烯/碳纳米管微孔注塑发泡行为及力学性能［J］. 中国塑料， 2020， 34（6）： 20.
	YUAN H Y， JIN Z Y， JIANG J， et al. Microcellular Injection Foaming Behaviors and Mechanical Properties of Polypropylene/Carbon Nanotubes Composites［J］. China Plastics， 2020， 34（6）： 20.
21	SUN S， LI Q， ZHAO N， JIANG J， HOU J， WANG X， et al.， Preparation of Highly Interconnected Porous Poly（ε⁃caprolactone）/poly（lactic acid） Scaffolds via Supercritical Foaming， Polymers for Advanced Technologies， 2018， 29（12）： 3 065⁃3 074.
22	HAN J J， HUANG H X. Preparation and Characterization of Biodegradable Polylactide/Thermoplastic Polyurethane Elastomer Blends［J］. Journal of Applied Polymer Science， 2011， 120（6）： 3 217⁃3 223.
23	韩嘉晖. 聚乳酸多相体系及其发泡材料的制备，结构与性能［D］. 广州：华南理工大学， 2018.
24	JING X， MI H Y， PENG X F， et al. The Morphology， Properties， and Shape Memory Behavior of Polylactic acid/thermoplastic Polyurethane Blends［J］. Polymer Engineering & Science， 2015， 55（1）： 70⁃80.
25	CHEN Y， WENG C， WANG Z， et al. Preparation of Polymeric Foams with Bimodal Cell Size： An Application of Heterogeneous Nucleation Effect of Nanofillers［J］. The Journal of Supercritical Fluids， 2019， 147： 107⁃115.
26	吴晓丹，彭玉成，蔡业彬. 超临界 CO₂ 在聚合物中的溶解度和扩散性研究［J］. 中国塑料， 2005， 19（7）： 59⁃63.
	Wu X D， Peng Y C， Cai Y B. Investigation on Solubility and Diffusion Coefficients of Supercritical CO₂ in Polymers［J］. China Plastics， 2005， 19（7）： 59⁃63.
27	陈振，张增志，丛中卉，等. 开孔型聚合物发泡材料的研究及应用进展. 材料工程， 2020， 48（3）： 1⁃9.
	CHEN Z， ZHANG Z Z， CONG Z H， et al. Research and Application Progress of Open⁃cell Polymeric Foams［J］. Journal of Materials Engineering， 2020， 48（3）： 1⁃9.
28	CHEN P， WANG W， WANG Y， et al. Crystallization⁃induced Microcellular Foaming of Poly （lactic acid） with High Volume Expansion Ratio［J］. Polymer Degradation and Stability， 2017， 144： 231⁃240.
29	LEE P C， WANG J， PARK C B. Extruded Open⁃cell Foams Using Two Semicrystalline Polymers with Different Crystallization Temperatures［J］. Industrial & Engineering Chemistry Research， 2006， 45（1）： 175⁃181.
30	IDRIS Y， OZBAKKALOGLU T. Behavior of Square Fiber Reinforced Polymer⁃High⁃strength Concrete⁃steel Double⁃skin Tubular Columns under Combined Axial Compression and Reversed⁃cyclic Lateral Loading［J］. Engineering Structures， 2016， 118： 307⁃319.
